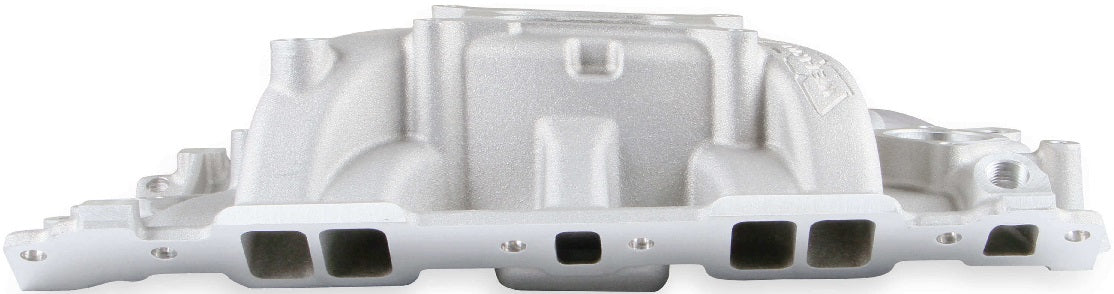

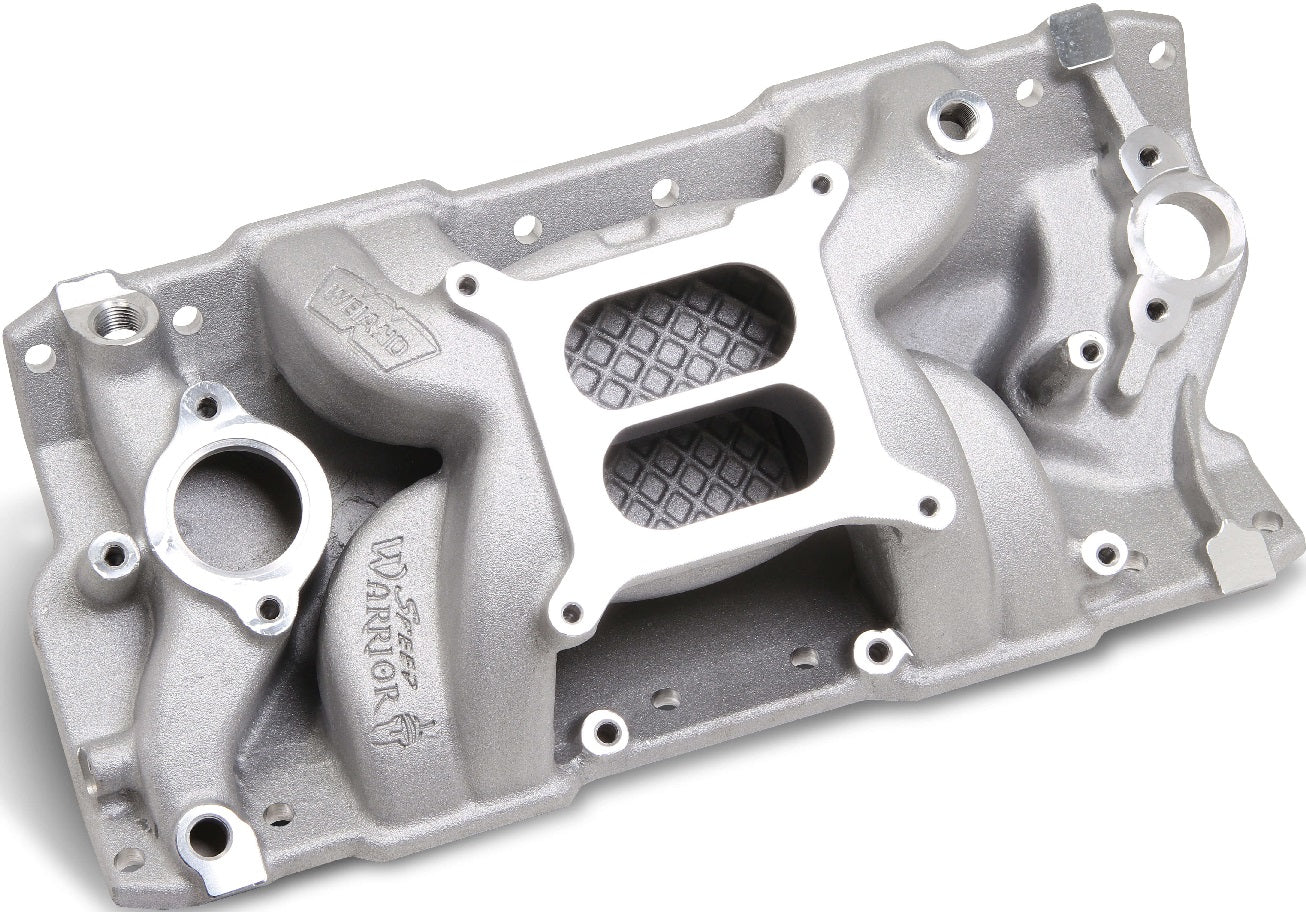

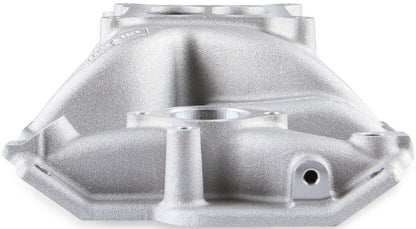

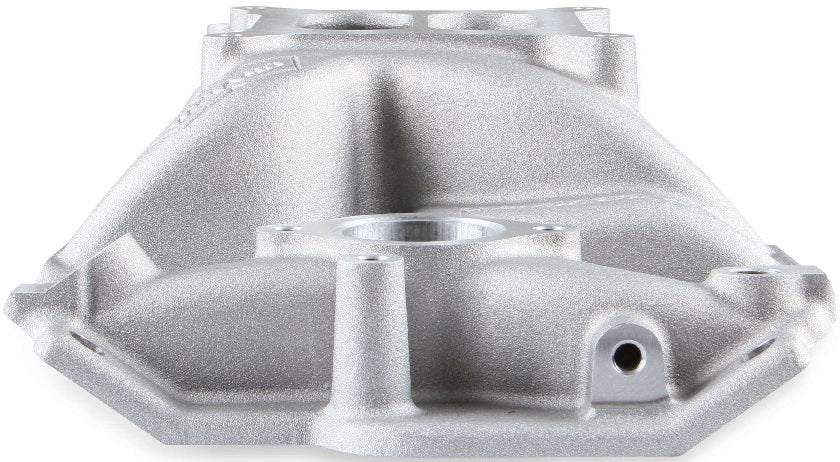

INTAKE MANIFOLD,SBC

BRAND NEW WEIAND SPEED WARRIOR INTAKE MANIFOLD, SILVER SATIN FINISH, DUAL PLANE, 262-400CI, COMPATIBLE WITH 1955-1986 CYLINDER HEAD SBC GEN I ENGINES

SPEED WARRIOR INTAKE MANIFOLD NON/EGR 262CI-400CI, 1955-1986 CYLINDER HEADS. FEATURES ISOLATED RUNNERS TO REDUCE INTAKE CHARGE HEATING & PROMOTE AIRFLOW BETWEEN HOT ENGINE & INTAKE PLENUM.

NOTE: UTILIZES LATE MODEL ALTERNATOR AN A/C BRACKET MOUNTING PROVISIONS. HAS ADDITIONAL VACUUM TAP OFF OF RUNNER. RECOMMENDED INTAKE MANIFOLD GASKET - MR GASKET #5821 OR #101G

FEATURES:

• SQUARE BORE CARBURETOR FLANGE
• HIGH RISE/DUAL PLANE DESIGN
• PRECISION CNC MACHINING
• PERMANENT MOLD CASTING

SPECS:

• BRAND: WEIAND
• CONSTRUCTION/FINISH: CAST SATIN
• ENGINE: CHEVROLET SMALL BLOCK GEN I
• POWER BAND: 1500-6700 RPM
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: HIGH RISE
• PRODUCT TYPE: INTAKE MANIFOLD
• PORT SIZE: 1.92" HEIGHT | 1.16" WIDTH
• HEIGHT: FRONT: 4.19" | REAR 5.27"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
