INTAKE MANIFOLD,SBC 87+ W/O VORTEC,LT-1

INTAKE MANIFOLD,SBC 87+ W/O VORTEC,LT-1

WEI 8170WND

$279.95
$279.95
View full details

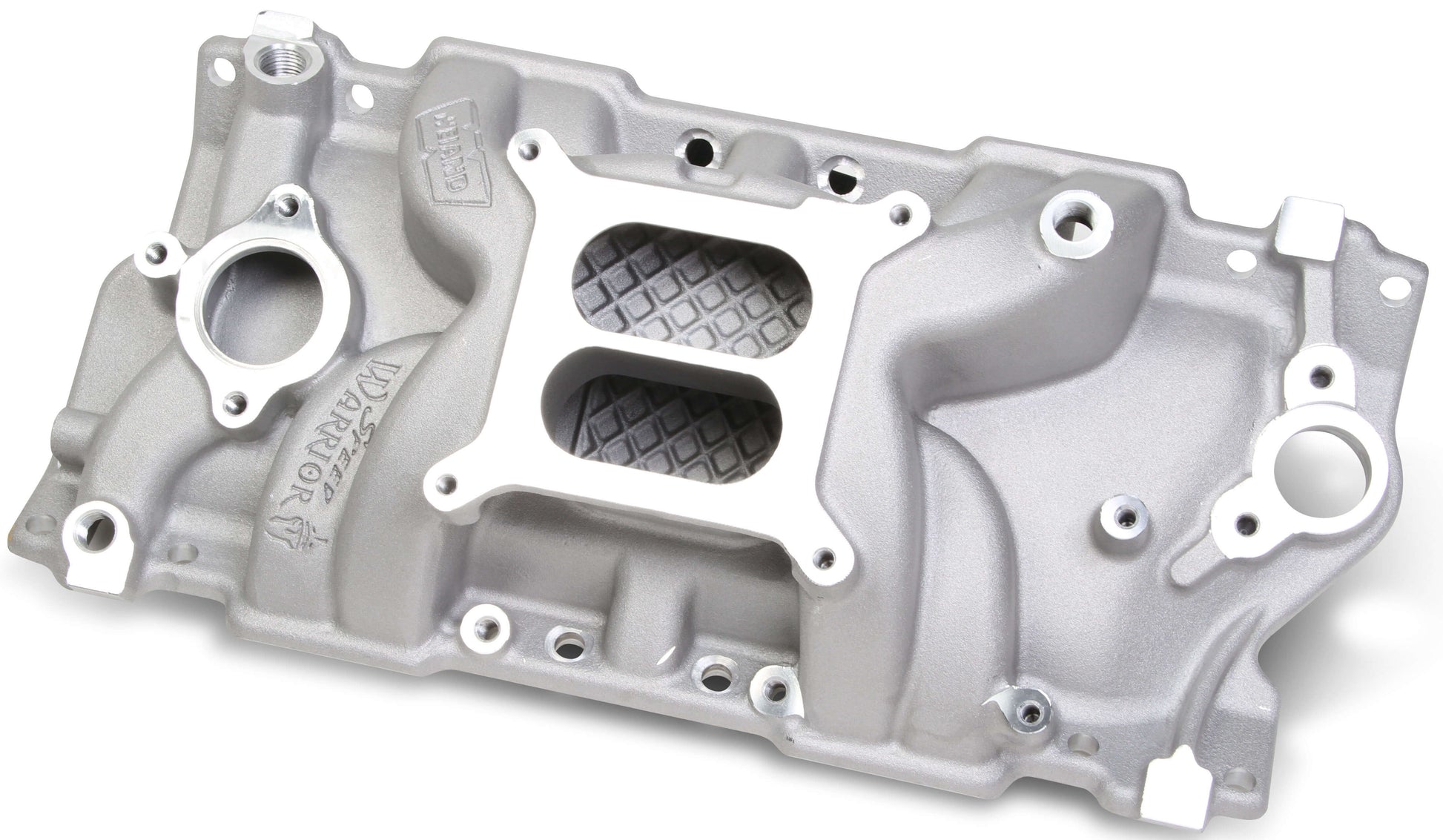

BRAND NEW WEIAND SPEED WARRIOR INTAKE MANIFOLD

THE WEIAND SPEED WARRIOR FEATURES LONG, SEPARATED RUNNERS FOR BOTTOM-END AND MID-RANGE POWER, PLUS A SPECIAL RUNNER DESIGN AND LARGER PLENUM TO FLOW THE AIR NEEDED FOR HIGH-RPM HORSEPOWER. ALL OF THIS USABLE POWER MAKES THIS INTAKE PERFECT FOR YOUR STREET AND STRIP HOT ROD! WEIAND DEVELOPED THE FIRST EVER ALUMINUM INTAKE MANIFOLD IN 1937. THIRTY YEARS LATER WEIAND DEVELOPED COMPLETE BLOWER DRIVES FOR THE GMC 6-71 SUPERCHARGER. TODAY, WEIAND IS STILL AT THE FOREFRONT OF INTAKE MANIFOLD AND BLOWER DEVELOPMENT AS WELL AS HIGH FLOW WATER PUMPS. TO MAKE MORE POWER YOU HAVE TO GET MORE AIR TO YOUR ENGINE. LOOK TO WEIAND AS YOUR POWER SOURCE!

FITS:

  • CHEVY SMALL BLOCK V8, 262-400CI, 1987 & LATER WITH CAST IRON CYLINDER HEADS, NON-VORTEC, NON-LT1

NOTE: USES LATE MODEL ALTERNATOR AN A/C BRACKET MOUNTING PROVISIONS. HAS ADDITIONAL VACUUM TAP OFF OF RUNNER. RECOMMENDED INTAKE MANIFOLD GASKET SET 5821 OR 101G.

SPECS:

  • BARRELS: 4
  • CONSTRUCTION: CAST
  • EMISSION CODE: 3
  • ENGINE: CHEVY SMALL BLOCK V8
  • FINISH: SATIN
  • FRONT HEIGHT: 4.19"
  • REAR HEIGHT: 5.27"
  • FUEL SYSTEM TYPE: CARB
  • MANIFOLD TYPE: HIGH RISE
  • RPM POWER BAND: 1500-6700

FEATURES:

  • PERMANENT MOLD CASTING
  • PORT SIZE: 1.92" HEIGHT, 1.16" WIDTH
  • HEIGHT: FRONT 4.19", REAR 5.27"
  • POWER BAND: 1500-6700 RPM
  • EXHAUST CROSSOVER FOR IMPROVED STREET DRIVABILITY (STANDARD SMALL BLOCK CHEVY HEADS)
  • SQUARE BORE CARBURETOR FLANGE
  • HIGH RISE/DUAL PLANE DESIGN
  • PRECISION CNC MACHINING
