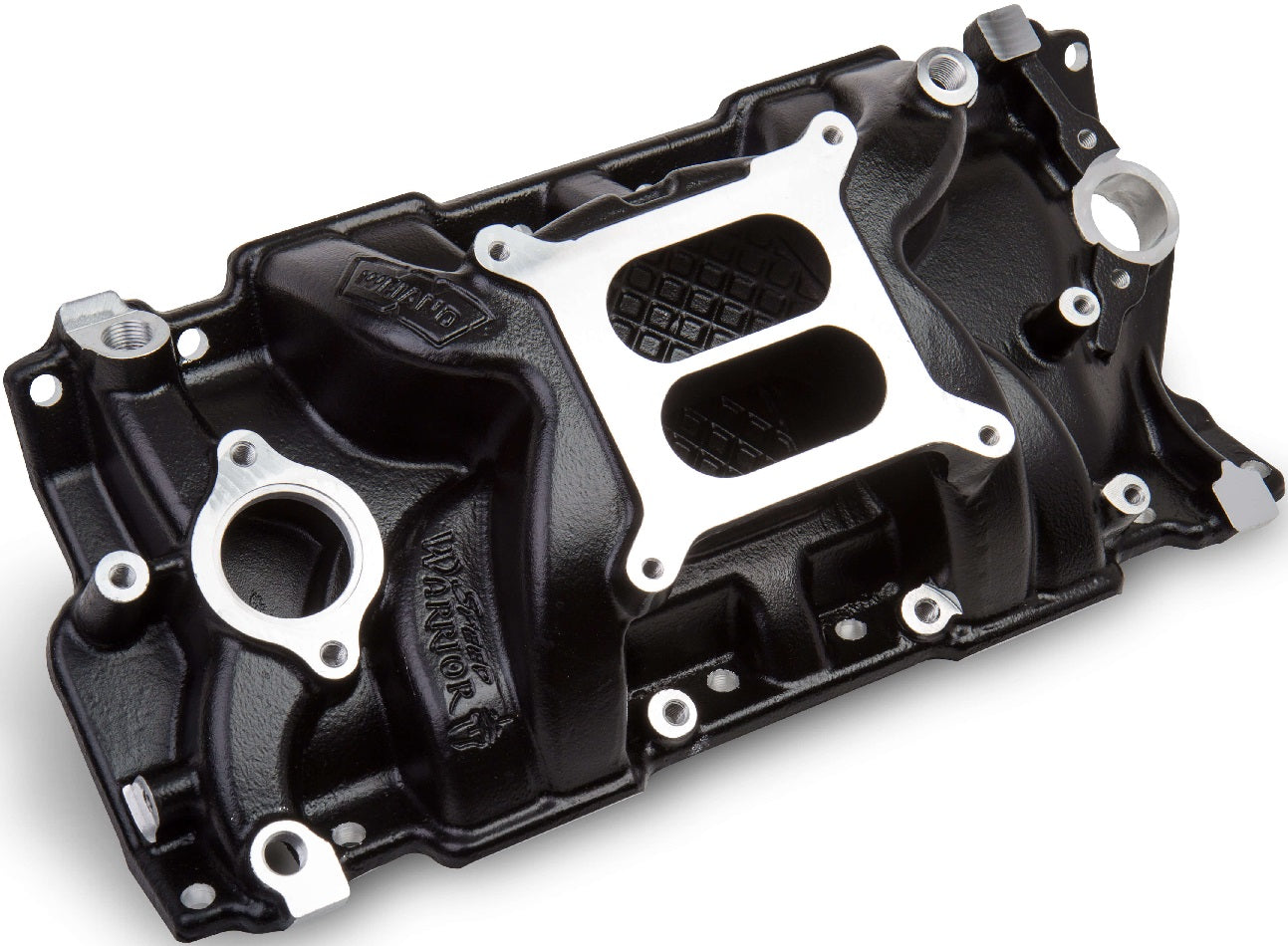

INTAKE MANIFOLD,SBC,BLACK

BRAND NEW WEIAND SPEED WARRIOR INTAKE MANIFOLD, HIGH RISE DUAL PLANE, BLACK CERAMIC CAST FINISH, COMPATIBLE WITH GEN I CHEVROLET SMALL BLOCK ENGINES

THE WEIAND SPEED WARRIOR FEATURES LONG, SEPARATED RUNNERS FOR BOTTOM-END & MID-RANGE POWER, PLUS A SPECIAL RUNNER DESIGN & LARGER PLENUM TO FLOW THE AIR NEEDED FOR HIGH-RPM HORSEPOWER. ALL OF THIS USABLE POWER MAKES THIS INTAKE PERFECT FOR YOUR STREET & STRIP HOT ROD!

NOTE: UTILIZES LATE MODEL ALTERNATOR AN A/C BRACKET MOUNTING PROVISIONS. HAS ADDITIONAL VACUUM TAP OFF OF RUNNER. RECOMMENDED INTAKE MANIFOLD GASKET - MR. GASKET #5821 OR #101G

NOTE: PLENUM DEPTH: FROM THE CARB FLANGE TO THE BOTTOM OF THE UPPER PLENUM IS 2-3/16". TO THE BOTTOM OF THE LOWER PLENUM IS 4-1/16"

FEATURES:

• BLACK CERAMIC COATING PROVIDES AN AGGRESSIVE LOOK TO YOUR ENGINE COMPARTMENT
• BLACK CERAMIC IS HEAT & CORROSION RESISTANT FOR LONG LIFE & DURABILITY
• PROVIDES AN EASY TO CLEAN FINISH
• PRECISION CNC MACHINING
• HIGH RISE/DUAL PLANE DESIGN
• SQUARE BORE CARBURETOR FLANGE
• EXHAUST CROSSOVER FOR IMPROVED STREET DRIVABILITY (STANDARD SMALL BLOCK CHEVROLET HEADS)
• POWER BAND: 1500-6700 RPM
• HEIGHT: FRONT 4.19", REAR 5.27"
• PORT SIZE: 1.92" HEIGHT, 1.16" WIDTH

SPECS:

• BARRELS: 4
• BRAND: WEIAND
• FINISH/CONSTRUCTION: BLACK CAST
• ENGINE: CHEVROLET SMALL BLOCK GEN I
• FRONT HEIGHT: 4.19"
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: HIGH RISE
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 1.16"
• RPM POWER BAND: 1500-6700

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
