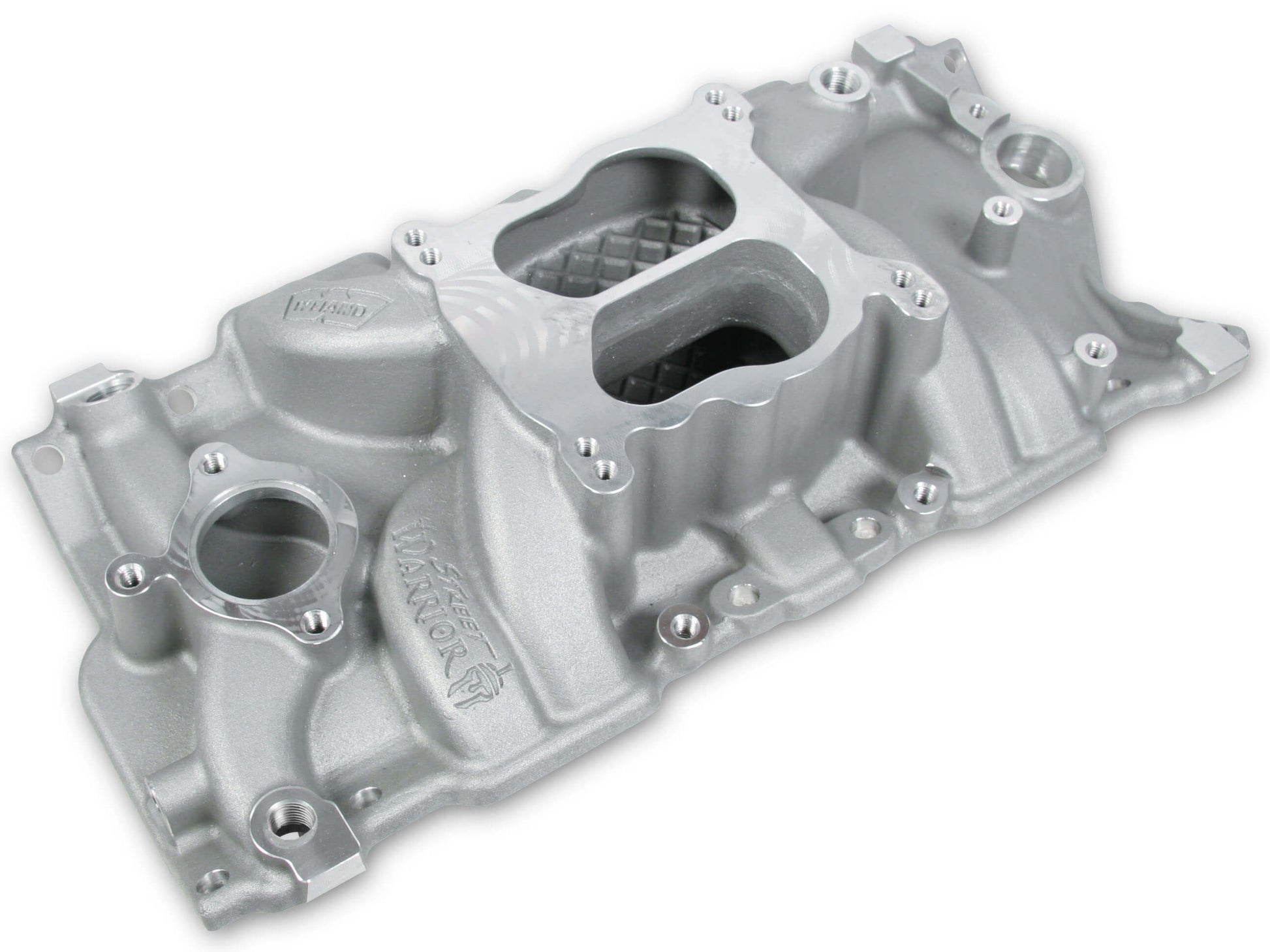

INTAKE MANIFOLD,SBC 87+ CAST IRON HEADS

BRAND NEW WEIAND STREET WARRIOR INTAKE MANIFOLD

DO NOT SETTLE FOR WEAK PERFORMANCE. THE ALL NEW SB CHEVY STREET WARRIOR DELIVERS BRUTAL LOW-END TORQUE AND KILLER HORSEPOWER THROUGHOUT USEABLE RPM RANGE! THE BATTLEGROUND HAS CHANGED IN THE PERFORMANCE WORLD. MOST OF THE INTAKES ON THE MARKET WERE DEVELOPED 20+ YEARS AGO WHEN TYPICAL ENGINES WERE 283-350 CUBIC INCHES. NOT SO ANYMORE. WITH THE POPULARITY OF LARGER STROKER ENGINES AND MORE EFFICIENT CYLINDER HEAD AND CAM DESIGNS CAME THE NEED FOR INTAKE MANIFOLDS TO SUPPORT THESE COMBINATIONS. DESIGNED WITH COMPUTATIONAL FLUID DYNAMICS SOFTWARE, THE STREET WARRIOR INTAKE RISES TO THE CHALLENGE AND DELIVERS THE PERFORMANCE TO CONQUER THE COMPETITION! WANT MAXIMUM HORSEPOWER AND TORQUE FROM TODAYS ENGINES? CHOOSE STREET WARRIOR!

FITS:

• CHEVY SMALL BLOCK V8, 283-400CI, 1987-95 WITH IRON HEAD SBC GEN I

NOTE: DESIGNED SPECIFICALLY FOR 1987-96 WITH IRON HEAD SMALL BLOCK CHEVY GEN I ENGINE APPLICATIONS

SPECS:

• BARRELS: 4
• CONSTRUCTION: CAST
• EMISSION CODE: 3
• ENGINE: CHEVY SMALL BLOCK V8
• FINISH: SATIN
• FRONT HEIGHT: 3.50"
• REAR HEIGHT: 4.50"
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: LOW RISE
• RPM POWER BAND: IDLE-5500

FEATURES:

• ALL NEW, OPTIMIZED DESIGN FOR TODAYS HIGHER OUTPUT SMALL BLOCK ENGINES
• IDLE TO 5,500 RPM BAND
• UNIVERSAL DUAL PATTERN CARB FLANGE ACCEPTS SPREAD BORE (QUADRAJETS) AND SQUARE BORE CARBS
• RUNNER GEOMETRY OPTIMIZED USING COMPUTATIONAL FLUID DYNAMICS SOFTWARE FOR EVEN FUEL & AIR DISTRIBUTION
• SAND CAST ALUMINUM CONSTRUCTION PRECISION CNC MACHINED DELIVERING HIGHEST VALUE MANIFOLDS ON THE MARKET & MORE POWER FOR YOUR DOLLAR
• LOW RISE DUAL PLANE DESIGN DELIVERING STREET FRIENDLY POWER AND TORQUE ACROSS THE USEABLE RPM RANGE
• FRONT HEIGHT= 3.50" REAR HEIGHT= 4.50"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS MANIFOLD HERE.
