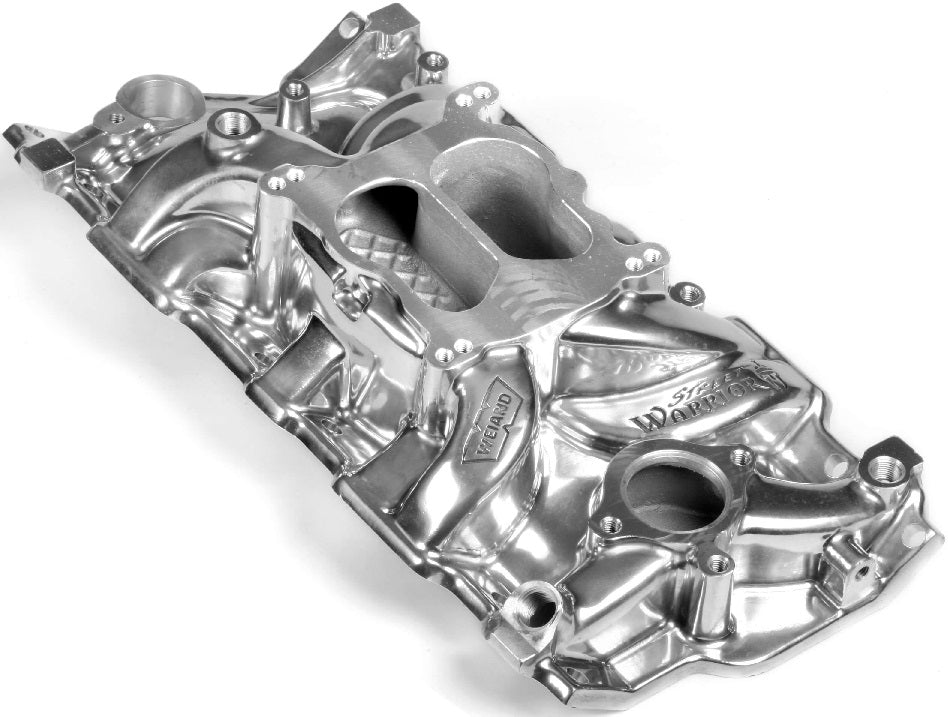

INTAKE MANIFOLD,SBC,POLISHED

BRAND NEW WEIAND STREET WARRIOR INTAKE MANIFOLD, POLISHED, 283-406CI, 1955-86, 1987 & UP WITH ALUMINUM HEADS, COMPATIBLE WITH SMALL BLOCK CHEVROLET V8 ENGINES

DELIVERS BRUTAL LOW-END TORQUE & KILLER HORSEPOWER THROUGHOUT USEABLE RPM RANGE! THE BATTLEGROUND HAS CHANGED IN THE PERFORMANCE WORLD. MOST OF THE INTAKES ON THE MARKET WERE DEVELOPED 20 PLUS YEARS AGO WHEN TYPICAL ENGINES WERE 283-350 CUBIC INCHES.

WITH THE POPULARITY OF LARGER STROKER ENGINES & MORE EFFICIENT CYLINDER HEAD & CAM DESIGNS CAME THE NEED FOR INTAKE MANIFOLDS TO SUPPORT THESE COMBINATIONS. DESIGNED WITH COMPUTATIONAL FLUID DYNAMICS SOFTWARE, THE STREET WARRIOR INTAKE RISES TO THE CHALLENGE.

NOTE: DESIGNED SPECIFICALLY FOR 1955-86 & 1987 & LATER WITH ALUMINUM HEADS (CORVETTE) SMALL BLOCK CHEVROLET GEN I ENGINE APPLICATIONS

FEATURES:

• ALL NEW, OPTIMIZED DESIGN FOR MODERN DAY HIGHER OUTPUT SMALL BLOCK ENGINES
• PORT SIZE: 1.84" HEIGHT 1.12" WIDTH
• IDLE TO 5,500 RPM BAND
• UNIVERSAL DUAL PATTERN CARB FLANGE ACCEPTS SPREAD BORE (QUADRAJETS) & SQUARE BORE CARBS
• RUNNER GEOMETRY OPTIMIZED USING COMPUTATIONAL FLUID DYNAMICS SOFTWARE FOR EVEN FUEL & AIR DISTRIBUTION
• SAND CAST ALUMINUM CONSTRUCTION PRECISION CNC MACHINED DELIVERING VALUE & POWER
• LOW RISE DUAL PLANE DESIGN DELIVERING STREET FRIENDLY POWER & TORQUE ACROSS THE USEABLE RPM RANGE
• FRONT HEIGHT: 3.50" REAR HEIGHT: 4.50"

SPECS:

• BRAND: WEIAND
• CONSTRUCTION: CAST
• ENGINE: CHEVY SMALL BLOCK GEN I
• FINISH: POLISHED
• FRONT HEIGHT: 3.50"
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: LOW RISE
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 4.50"
• RPM POWER BAND: IDLE-5500

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
