INTAKE MANIFOLD,SBF 221>302

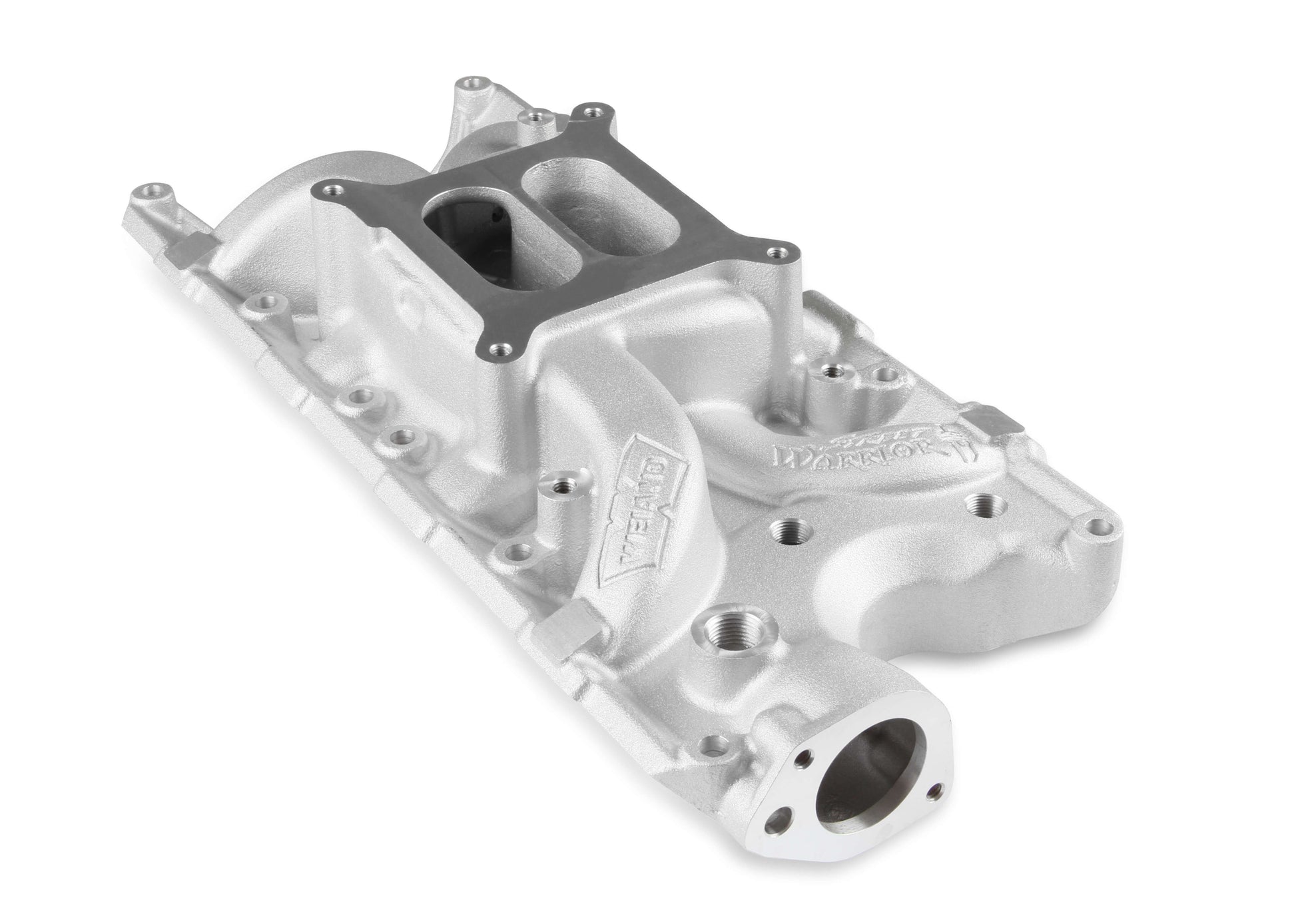

BRAND NEW WEIAND STREET WARRIOR INTAKE MANIFOLD

LOOKING FOR THE ULTIMATE IN HIGH PERFORMANCE STREET INTAKES? A LOT HAS CHANGED IN THE PERFORMANCE WORLD SINCE THE TIME MANY OF THE MANIFOLDS ON THE MARKET WERE INTRODUCED 20+ YEARS AGO. WITH THE POPULARITY OF LARGER STROKER ENGINES AND MORE EFFICIENT CYLINDER HEAD/CAM DESIGNS HAS COME A NEED FOR MANIFOLDS TO SUPPORT THESE LARGER DISPLACEMENTS. WEIAND RECOGNIZED THIS AND HAS DEVELOPED A NEW LINE OF STREET WARRIOR MANIFOLDS DESIGNED WITH COMPUTATIONAL FLUID DYNAMICS (CFD) TO GENERATE MAXIMUM HORSEPOWER AND TORQUE OUT OF TODAYS ENGINES. DYNO TESTING OF THE NEW WEIAND 8124 FOUND AN ADDITIONAL 14 PEAK HP AND 13LB/FT TORQUE OVER BRAND E- P/N 2121. AVERAGE TORQUE WAS INCREASED BY 9.5 AND HP BY 8.5 FROM 2,200 TO 6,000 RPM! TESTING WAS PERFORMED ON A 302 WITH HIGH FLOW 58CC HEADS, 268/279 DUR/.522 LIFT LUNATI CAM P/N 51023, 600 CFM CARB & 1-5/8" HEADERS.

FITS:

• FORD SMALL BLOCK V8, 289-302

NOTE: HAS ADDITIONAL VACUUM TAP OFF OF RUNNER FOR BRAKE BOOSTERS/AC. RECOMMENDED MR. GASKET #5831 GASKET. HOLLEY STREET AVENGER CARB SERIES IN 570 OR 670 CFM & UNIVERSAL CARBURETOR INSTALLATION KIT, P/N 20-124 ARE RECOMMENDED ACCESSORIES.

SPECS:

• BARRELS: 4
• CONSTRUCTION: CAST
• EMISSION CODE: 3
• ENGINE: FORD SMALL BLOCK V8
• FINISH: SATIN
• FRONT HEIGHT: 3.82"
• REAR HEIGHT: 4.75"
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: LOW RISE
• RPM POWER BAND: IDLE-5500

FEATURES:

• PORT SIZE: 1.82" HEIGHT 1.02" WIDTH
• HEIGHT: FRONT 3.82", REAR 4.75"
• POWER BAND: IDLE-5500 RPM
• EXHAUST CROSSOVER FOR IMPROVED STREET DRIVABILITY
• PERMANENT MOLD CASTING PROCESS FOR LIGHTER, SMOOTHER & BETTER LOOKS
• SQUARE BORE CARBURETOR MOUNTING FLANGE
• LOW RISE DUAL PLANE DESIGN BUILDS MAXIMUM TORQUE FOR STREET PERFORMANCE ENGINES

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS MANIFOLD HERE.
