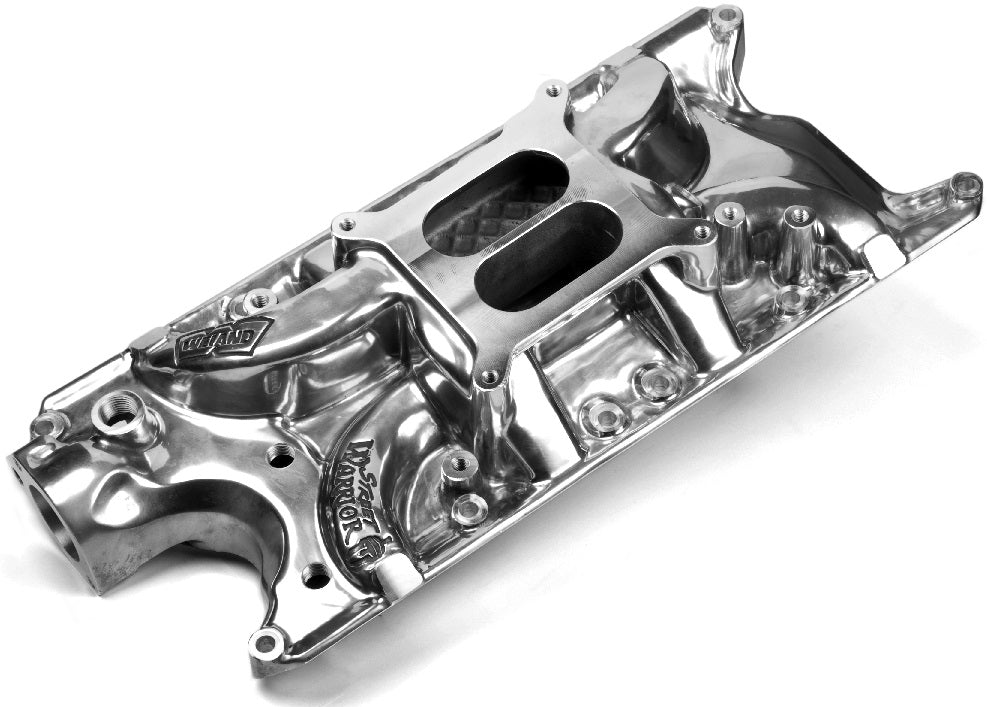

INTAKE MANIFOLD,SBF 221>302,POLISHED

BRAND NEW WEIAND STREET WARRIOR LOW RISE INTAKE MANIFOLD, POLISHED FINISH, SQUARE BORE FLANGE, COMPATIBLE WITH FORD 289-302 SMALL BLOCK V8 ENGINES

DYNO TESTING OF THE NEW WEIAND 8124 FOUND AN ADDITIONAL 14 PEAK HP AND 13LB/FT TORQUE OVER BRAND E - PART #2121. AVERAGE TORQUE WAS INCREASED BY 9.5 & HP BY 8.5 FROM 2,200 TO 6,000 RPM! TESTING WAS PERFORMED ON A 302 WITH HIGH FLOW 58CC HEADS, 268/279 DUR/.522 LIFT LUNATI CAM PART #51023, 600 CFM CARB & 1-5/8" HEADERS.

NOTE: HAS ADDITIONAL VACUUM TAP OFF OF RUNNER FOR BRAKE BOOSTERS/AC. RECOMMENDED MR. GASKET #5831 GASKET. HOLLEY STREET AVENGER CARB SERIES IN 570 OR 670 CFM & UNIVERSAL CARBURETOR INSTALLATION KIT, PART #20-124 ARE RECOMMENDED ACCESSORIES.

FEATURES:

• LOW RISE DUAL PLANE DESIGN BUILDS MAXIMUM TORQUE FOR STREET PERFORMANCE ENGINES
• POLISHED FINISH
• SQUARE BORE CARBURETOR MOUNTING FLANGE
• PERMANENT MOLD CASTING PROCESS FOR LIGHTER, SMOOTHER & BETTER LOOKS
• EXHAUST CROSSOVER FOR IMPROVED STREET DRIVABILITY
• POWER BAND: IDLE-5500 RPM
• HEIGHT: FRONT 3.82", REAR 4.75"
• PORT SIZE: 1.82" HEIGHT 1.02" WIDTH

SPECS:

• BARRELS: 4
• BRAND: WEIAND
• CONSTRUCTION: CAST
• ENGINE: FORD SMALL BLOCK V8
• FINISH: SHINY
• FRONT HEIGHT: 3.82 INCH
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: LOW RISE
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 4.75 INCH
• RPM POWER BAND: IDLE-5500

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
