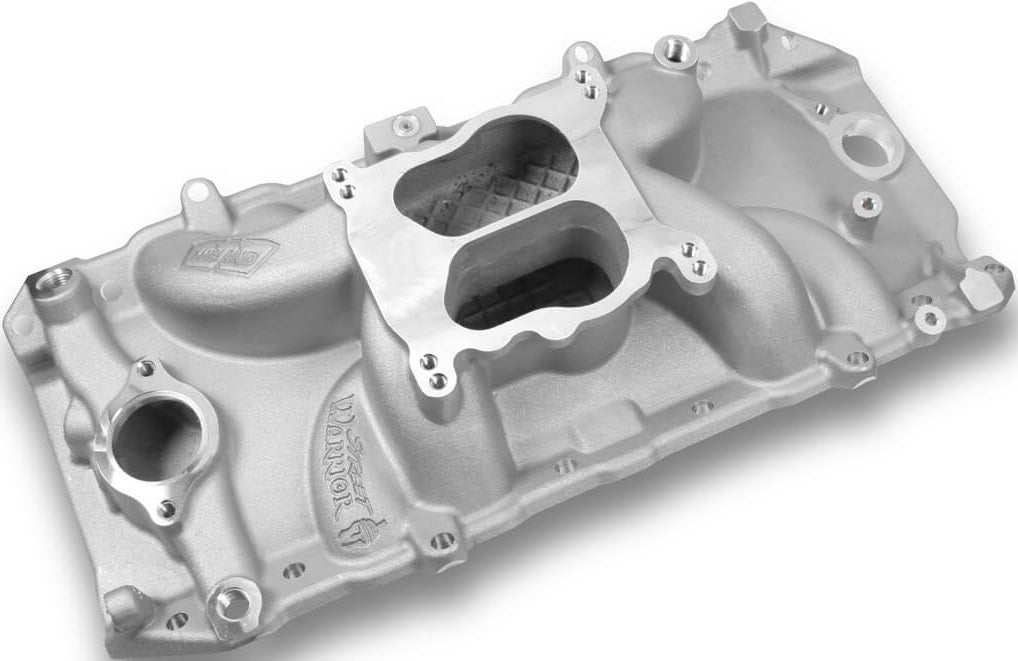

INTAKE MANIFOLD,BBC,PEANUT PORT,396>502

BRAND NEW WEIAND STREET WARRIOR INTAKE MANIFOLD, SILVER, 396-454CI WITH PEANUT PORT HEADS, COMPATIBLE WITH BIG BLOCK CHEVROLET V8 ENGINES

MOST OF THE INTAKES ON THE MARKET WERE DEVELOPED 20 PLUS YEARS AGO WHEN TYPICAL ENGINES WERE 396-454 CUBIC INCHES, BUT NOT ANYMORE. WITH THE POPULARITY OF LARGER ENGINES, STROKER COMBINATIONS AND MORE EFFICIENT CYLINDER HEAD AND CAM DESIGNS CAME THE NEED FOR INTAKE MANIFOLDS TO SUPPORT THESE COMBINATIONS. DESIGNED WITH COMPUTATIONAL FLUID DYNAMICS SOFTWARE.

FEATURES:

• ALL NEW OPTIMIZED DESIGN FOR MODERN DAY HIGHER OUTPUT BIG BLOCK ENGINES
• IDLE TO 5,500 RPM BAND
• UNIVERSAL DUAL PATTERN CARB FLANGE ACCEPTS SPREAD BORE (QUADRAJETS) & SQUARE BORE CARBS
• RUNNER GEOMETRY OPTIMIZED USING COMPUTATIONAL FLUID DYNAMICS SOFTWARE FOR EVEN FUEL & AIR DISTRIBUTION
• SAND CAST 319 ALUMINUM CONSTRUCTION IS PRECISION CNC MACHINED PROVIDING LIGHTER CASTINGS WITH BETTER SURFACE FINISHES
• LOW RISE DUAL PLANE DESIGN DELIVERING FRIENDLY POWER & TORQUE ACROSS THE USABLE RPM RANGE
• PEANUT OVAL PORT DIMENSIONS: 1.570" HIGH X 1.600" WIDE
• HEIGHT: FRONT 4.25", REAR 5.42"

SPECS:

• BARRELS: 4
• CONSTRUCTION: CAST
• ENGINE: CHEVROLET BIG BLOCK V8
• FINISH: SILVER SATIN
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: LOW RISE
• PRODUCT TYPE: INTAKE MANIFOLD
• RPM POWER BAND: IDLE-5500

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
