INTAKE MANIFOLD,BBC,PEANUT PORT,396>502,POLISHED

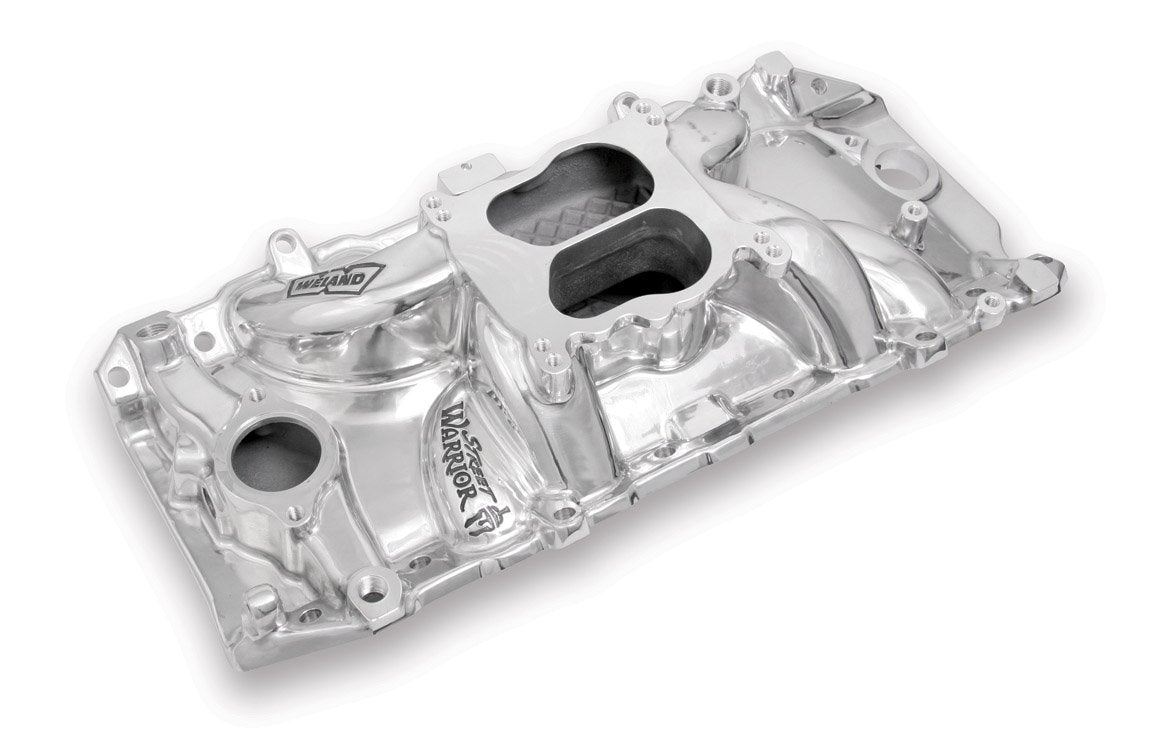

BRAND NEW WEIAND STREET WARRIOR INTAKE MANIFOLD, SHINY, 396-427CI WITH PEANUT PORT HEADS, COMPATIBLE WITH BIG BLOCK CHEVROLET V8 ENGINES (HOLLEY PART #8122P).

MOST OF THE INTAKES ON THE MARKET WERE DEVELOPED 20+ YEARS AGO WHEN TYPICAL ENGINES WERE 396-427 CUBIC INCHES. NOT SO ANYMORE. WITH THE POPULARITY OF LARGER ENGINES, STROKER COMBINATIONS AND MORE EFFICIENT CYLINDER HEAD AND CAM DESIGNS CAME THE NEED FOR INTAKE MANIFOLDS TO SUPPORT THESE COMBINATIONS. DESIGNED WITH COMPUTATIONAL FLUID DYNAMICS SOFTWARE, THE STREET WARRIOR INTAKE RISES TO THE CHALLENGE AND DELIVERS THE PERFORMANCE TO CONQUER THE COMPETITION! WANT MAXIMUM HORSEPOWER AND TORQUE FROM TODAYS ENGINES? CHOOSE STREET WARRIOR!

FEATURES:

• UNIVERSAL DUAL PATTERN CARB FLANGE ACCEPTS SPREAD BORE (QUADRAJETS) AND SQUARE BORE CARBS
• RUNNER GEOMETRY OPTIMIZED USING COMPUTATIONAL FLUID DYNAMICS SOFTWARE FOR EVEN FUEL & AIR DISTRIBUTION
• PERMANENT MOLD 319 ALUMINUM CONSTRUCTION IS PRECISION CNC MACHINED PROVIDING LIGHTER CASTINGS WITH BETTER SURFACE FINISHES
• LOW RISE DUAL PLANE DESIGN DELIVERING FRIENDLY POWER AND TORQUE ACROSS THE USABLE RPM RANGE
• ALL NEW OPTIMIZED DESIGN FOR TODAY’S HIGHER OUTPUT BIG BLOCK ENGINES
• IDLE TO 5,500 RPM BAND
• PEANUT OVAL PORT DIMENSIONS: 1.570" HIGH X 1.600" WIDE

SPECS:

• BARRELS: 4
• CONSTRUCTION: CAST
• ENGINE: CHEVROLET BIG BLOCK V8
• FINISH: SHINY
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: LOW RISE
• PRODUCT TYPE: INTAKE MANIFOLD
• RPM POWER BAND: IDLE-5500

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET HERE.
