INTAKE MANIFOLD,SBF 221>302

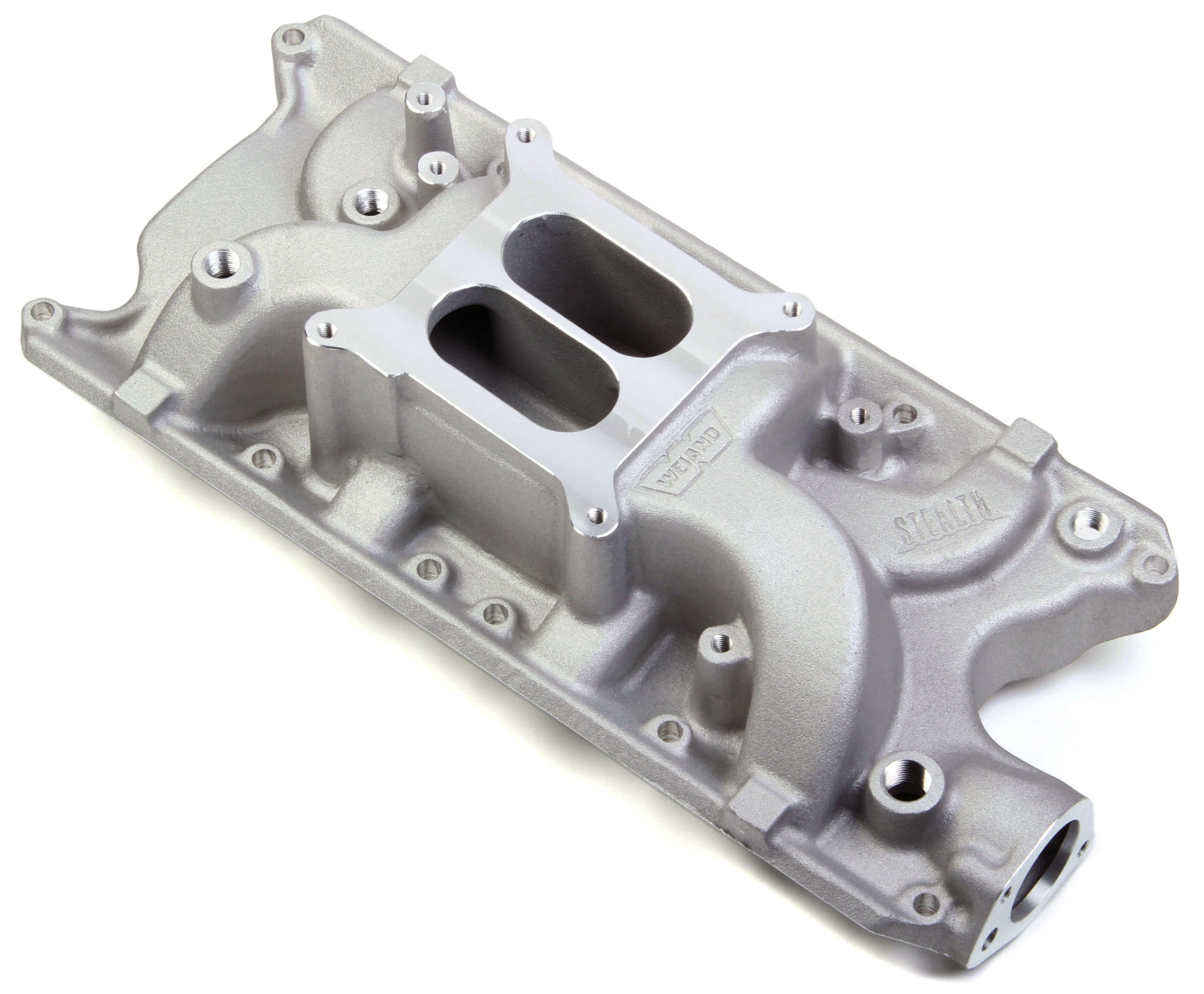

BRAND NEW WEIAND STEALTH INTAKE MANIFOLD

THIS MANIFOLD IS PART OF THE WEIAND NOSTALGIA SERIES OF INTAKE MANIFOLDS. WEIAND NOSTALGIA SERIES INTAKE MANIFOLDS ARE MADE USING THE ORIGINAL TOOLING, AND MAY HAVE MINOR APPEARANCE IMPERFECTIONS THAT DO NOT AFFECT THE FUNCTIONALITY OF THE PART. THESE MINOR BLEMISHES ARE A NATURAL PART OF THE CASTING PROCESS WHEN USING THE ORIGINAL SAND CASTING TOOLING. WEIAND NOSTALGIA SERIES INTAKES ARE PROUDLY CAST AND MACHINED IN THE USA. WE SUPPORT ALL AREAS OF THE VINTAGE, SHOW, AND NOSTALGIA CAR HOBBY, AND WANT TO CONTINUE TO PRODUCE THESE LOWER VOLUME MANIFOLDS USING THE ORIGINAL TOOLS. THERE IS NO NEED TO SEARCH FOR THAT VINTAGE INTAKE AT SWAP MEETS OR ON THE INTERNET WHEN YOU CAN BUY THE REAL DEAL NEW FROM WEIAND!

FITS:

• FORD SMALL BLOCK V8 221, 260, 289 & 302

NOTE: FITS GT-40 AND TFS HEADS. WILL NOT FIT 255 OR BOSS 302 ENGINES.

SPECS:

• BARRELS: 4
• CONSTRUCTION: CAST
• EMISSION CODE: 3
• ENGINE: FORD SMALL BLOCK V8
• FINISH: SATIN
• FRONT HEIGHT: 4.35"
• REAR HEIGHT: 5.59"
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: HIGH RISE
• RPM POWER BAND: IDLE-6000

FEATURES:

• PORT SIZE: 1.83" HEIGHT 1.02" WIDTH
• HEIGHT: FRONT 4.35", REAR 5.59"
• HIGH RISE DUAL PLANE DESIGN
• SQUARE CARBURETOR MOUNTING FLANGE
• NO EGR PROVISIONS
• POWER BAND: IDLE-6000 RPM

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS MANIFOLD HERE.
