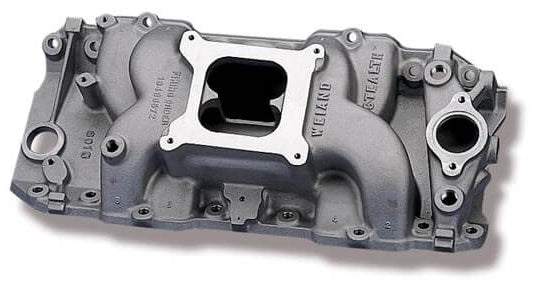

INTAKE MANIFOLD,OVAL,BBC 396>502

BRAND NEW WEIAND STEALTH INTAKE MANIFOLD

THIS MANIFOLD IS DESIGNED TO BE USED WITH PERFORMANCE OVAL PORT HEADS. THIS MANIFOLD IS PART OF THE WEIAND NOSTALGIA SERIES OF INTAKE MANIFOLDS. WEIAND NOSTALGIA SERIES INTAKE MANIFOLDS ARE MADE USING THE ORIGINAL TOOLING, AND MAY HAVE MINOR APPEARANCE IMPERFECTIONS THAT DO NOT AFFECT THE FUNCTIONALITY OF THE PART. THESE MINOR BLEMISHES ARE A NATURAL PART OF THE CASTING PROCESS WHEN USING THE ORIGINAL SAND CASTING TOOLING. WEIAND NOSTALGIA SERIES INTAKES ARE PROUDLY CAST AND MACHINED IN THE USA. WE SUPPORT ALL AREAS OF THE VINTAGE, SHOW, AND NOSTALGIA CAR HOBBY, AND WANT TO CONTINUE TO PRODUCE THESE LOWER VOLUME MANIFOLDS USING THE ORIGINAL TOOLS. THERE IS NO NEED TO SEARCH FOR THAT VINTAGE INTAKE AT SWAP MEETS OR ON THE INTERNET WHEN YOU CAN BUY THE REAL DEAL NEW FROM WEIAND!

FITS:

• CHEVY BIG BLOCK V8, 396-502CI WITH HIGH PERFOMANCE OVAL PORT HEADS

SPECS:

• BARRELS: 4
• CONSTRUCTION: CAST
• EMISSION CODE: 3
• ENGINE: CHEVY BIG BLOCK V8
• FINISH: SATIN
• FRONT HEIGHT: 4.75"
• REAR HEIGHT: 5.75"
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: LOW RISE
• RPM POWER BAND: IDLE-6500

FEATURES:

• HIGH RISE/DUAL PLANE DESIGN
• PORT SIZE: 1.84" HEIGHT 1.64" WIDTH
• HEIGHT: FRONT 4.75", REAR 5.75"
• POWER BAND: IDLE-6500 RPM
• MACHINED FOR STANDARD DECK BLOCKS
• 4150 STYLE SQUARE BORE MOUNTING FLANGE
• WEIAND NOSTALGIA SERIES INTAKE MANIFOLD
• WILL CLEAR HEI DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS MANIFOLD HERE.
