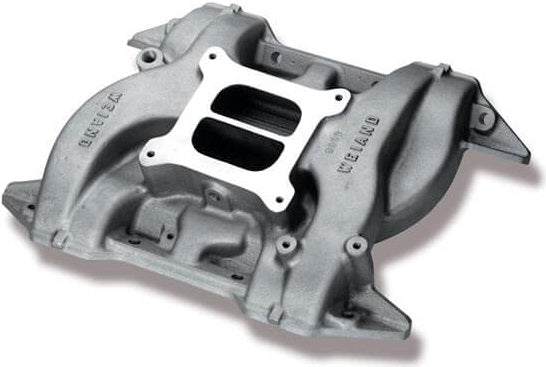

INTAKE MANIFOLD,BB MOPAR,361,383,400,ACTION PLUS

BRAND NEW WEIAND ACTION PLUS INTAKE, SILVER FINISH, 4 BARREL, COMPATIBLE WITH CHRYSLER BIG BLOCK 361, 383, 400 V8 ENGINES

ACTION +PLUS INTAKE MANIFOLD 361, 383, 400 V8 IS PART OF THE WEIAND NOSTALGIA SERIES OF INTAKE MANIFOLDS. THEY ARE MADE USING THE ORIGINAL TOOLING, AND MAY HAVE MINOR APPEARANCE IMPERFECTIONS THAT DO NOT AFFECT THE FUNCTIONALITY OF THE PART. THESE MINOR BLEMISHES ARE A NATURAL PART OF THE CASTING PROCESS WHEN USING THE ORIGINAL SAND CASTING TOOLING.

FEATURES:

• PORT SIZE: 2.14" HEIGHT & 1.11" WIDTH
• HEIGHT: FRONT 3.62" & REAR 4.00"
• POWER BAND: IDLE-6000 RPM
• SQUARE BORE CARBURETOR MOUNTING FLANGE
• MEDIUM RISE/DUAL PLANE DESIGN
• WEIAND NOSTALGIA SERIES INTAKE MANIFOLD

SPECS:

• BARRELS: 4
• BRAND: WEIAND
• CONSTRUCTION: CAST
• ENGINE: CHRYSLER BIG BLOCK V8
• FINISH: SATIN
• FRONT HEIGHT: 3.62"
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: LOW RISE
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 4"
• RPM POWER BAND: IDLE-6000

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
