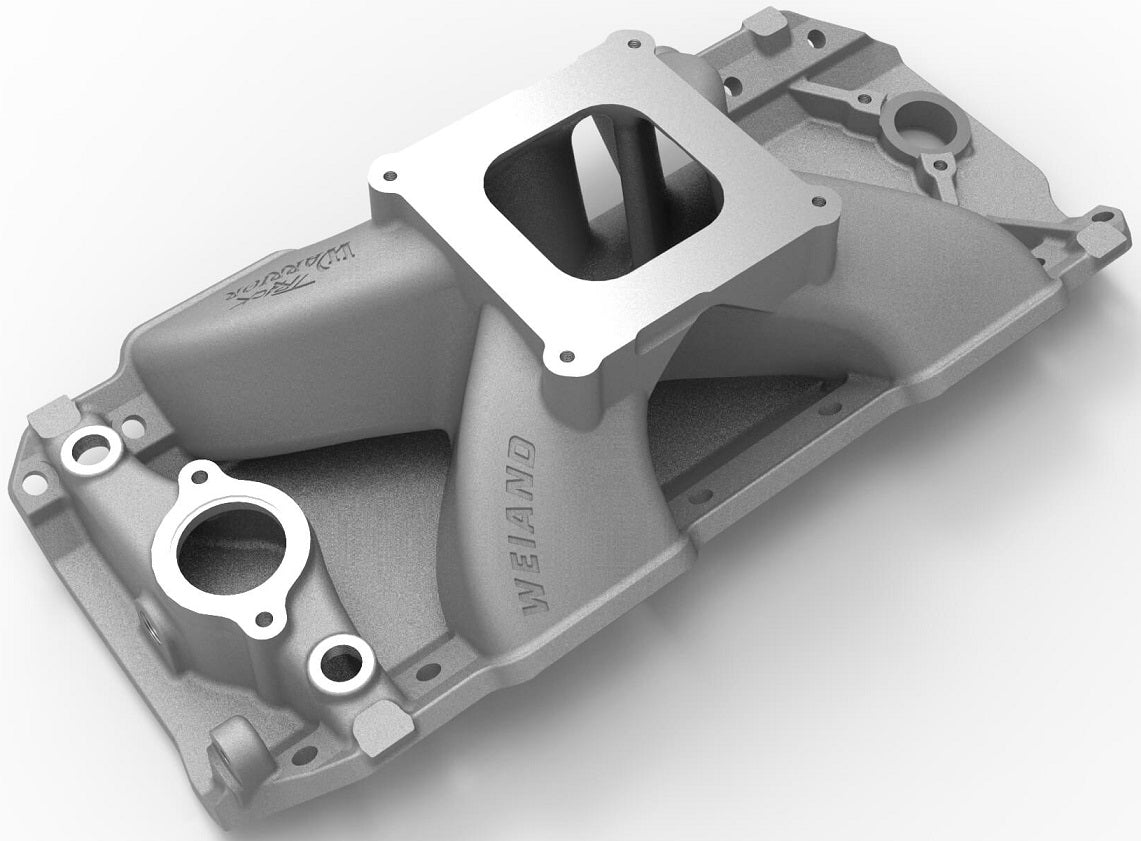

INTAKE MANIFOLD,BBC RECTANGULAR PORT HEADS,4150,WARRIOR

BRAND NEW WEIAND TRACK WARRIOR INTAKE MANIFOLD, SINGLE PLANE WITH OPEN PLENUM, 4150 CARBURETOR MOUNTING FLANGE, POWER BAND: 3500-8000 RPM, RECTANGULAR PORT HEADS, FITS CHEVY BIG BLOCK V8

THE WEIAND NEW TRACK WARRIOR RACE INTAKES ARE DESIGNED TO PROVIDE THE ULTIMATE PERFORMANCE FOR BIG BLOCK CHEVY ENGINES. THESE MANIFOLDS ARE PERFECT FOR DRAG RACING AND BIG-INCH BIG BLOCK ENGINES. COMPUTER ENGINEERED AND DYNO PROVEN TO PRODUCE MORE HORSEPOWER AND TORQUE AS A RESULT OF SUPERIOR CYLINDER TO CYLINDER DISTRIBUTION GIVES THIS PIECE THE EDGE OVER THE COMPETITION AND ENSURES SAFE, CONSISTENT AIR/FUEL RATIOS FOR YOU ENGINE. WHEN YOU LOOK FOR THE PINNACLE OF PERFORMANCE, PRICE, AND QUALITY, LOOK TO WEIAND.

FEATURES:

• OPEN PLENUM/SINGLE PLANE DESIGN
• NO EGR PROVISIONS
• 3500-8000 RPM POWER BAND
• 4150 CARBURETOR MOUNTING FLANGE
• 396CI, 402CI, 427CI, 454CI, 502CI, RECTANGLE PORT DIMENSIONS: 2.28" HIGH X 1.48" WIDE
• HEIGHT: FRONT 5.96", REAR 5.96"
• FITS STANDARD DECK HEIGHT BLOCKS
• PERFECT FOR HARD CORE DRAG RACERS IN THE NHRA SUPER COMP, SUPER GAS, & STREET CLASSES AS WELL AS IHRA QUICK ROD, SUPER ROD, & HOT ROD CATEGORIES

SPECS:

• BRAND: WEIAND
• CONSTRUCTION: CAST
• EMISSION CODE: 3
• ENGINE: CHEVY BIG BLOCK V8
• MANIFOLD TYPE: HIGH RISE
• PRODUCT TYPE: INTAKE MANIFOLD
• RPM POWER BAND: 3000-7500

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE.
