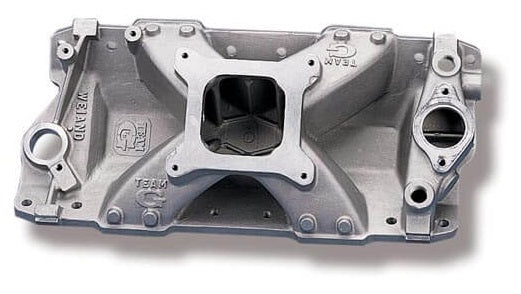

INTAKE MANIFOLD,SBC,SINGLE,TEAM G

BRAND NEW WEIAND TEAM G INTAKE MANIFOLD, SINGLE PLANE WITH ISOLATED PLENUM, SQUARE CARBURETOR MOUNTING FLANGE, POWER BAND: 2800-7200 RPM, FITS CHEVY SMALL BLOCK V8

TEAM G INTAKE MANIFOLD 1957-1986 262CI-400CI, 1987-LATER WITH ALUMINUM HEADS, IS PART OF THE WEIAND NOSTALGIA SERIES OF INTAKE MANIFOLDS. THEY ARE MADE USING THE ORIGINAL TOOLING, AND MAY HAVE MINOR APPEARANCE IMPERFECTIONS THAT DO NOT AFFECT THE FUNCTIONALITY OF THE PART. THESE MINOR BLEMISHES ARE A NATURAL PART OF THE CASTING PROCESS WHEN USING THE ORIGINAL SAND CASTING TOOLING.

FEATURES:

• 1957-1986 262CI-400CI, 1987 & LATER WITH ALUMINUM HEADS
• SINGLE PLANE WITH ISOLATED PLENUM
• SQUARE CARBURETOR MOUNTING FLANGE
• ISOLATED WATER CROSS-OVER
• POWER BAND: 2800-7200 RPM
• HEIGHT: FRONT 3.63", REAR 4.56"
• PORT SIZE: 2.10" HEIGHT 1.24" WIDTH
• WEIAND NOSTALGIA SERIES INTAKE MANIFOLD

SPECS:

• BARRELS: 4
• BRAND: WEIAND
• CONSTRUCTION: CAST
• EMISSION CODE: 3
• ENGINE: CHEVY SMALL BLOCK V8
• FINISH: SATIN
• FRONT HEIGHT: 3.63"
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: HIGH RISE
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 4.56"
• RPM POWER BAND: 2800-7200

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS INTAKE MANIFOLD HERE, THE BOLT NOTICE HERE, AND GENERAL PART INFORMATION HERE.
