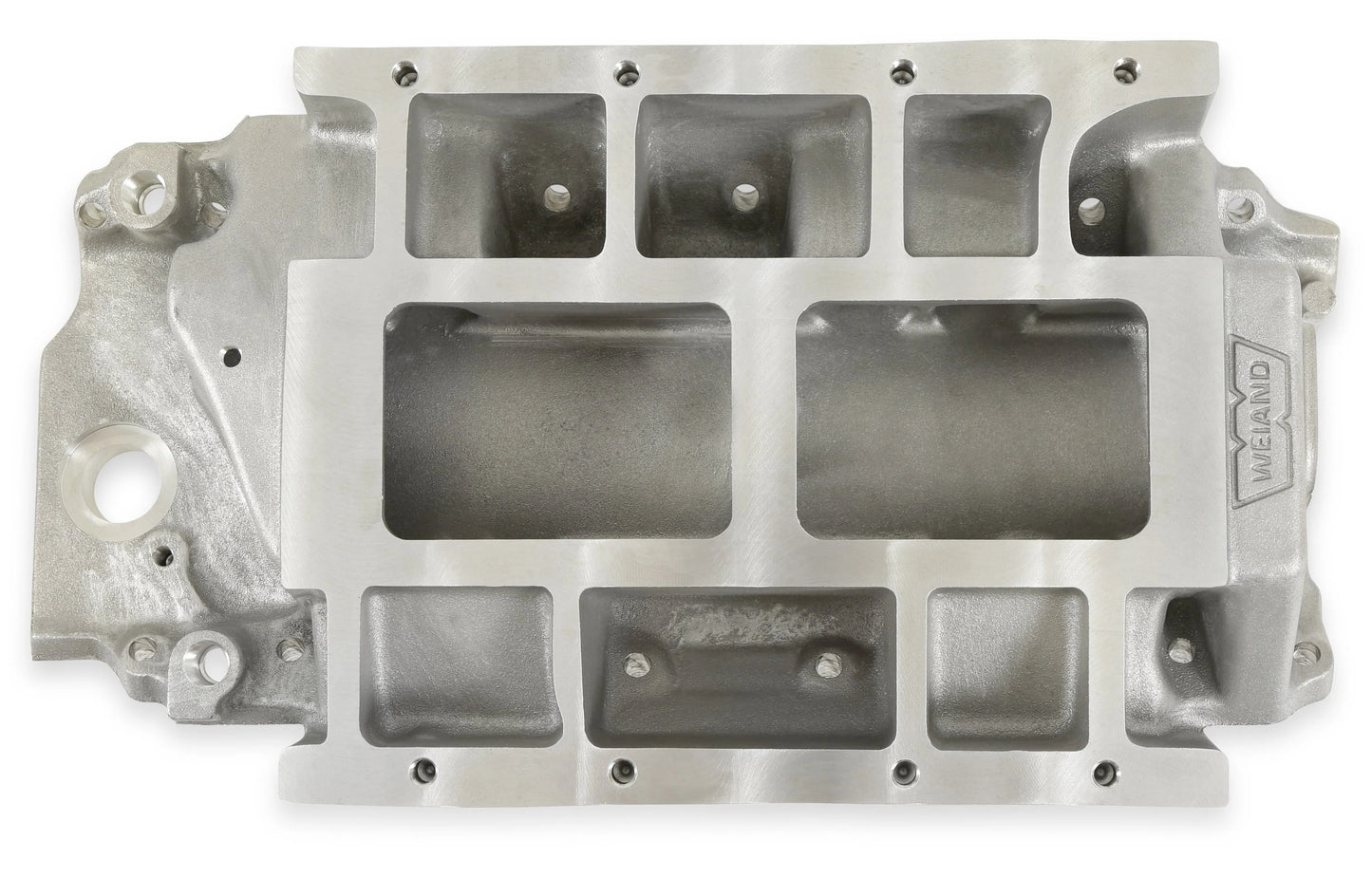

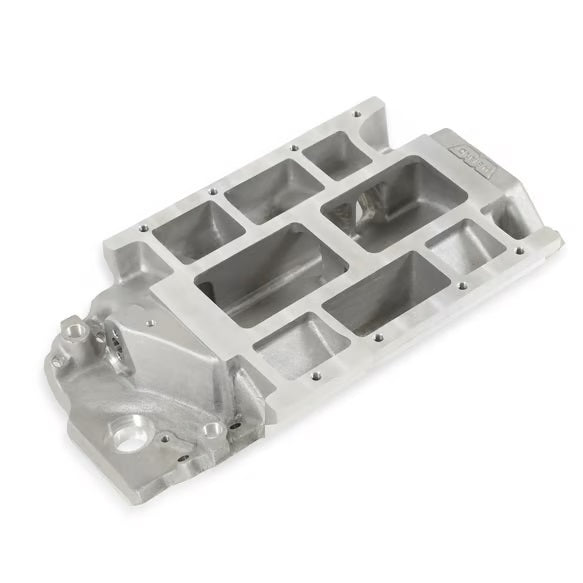

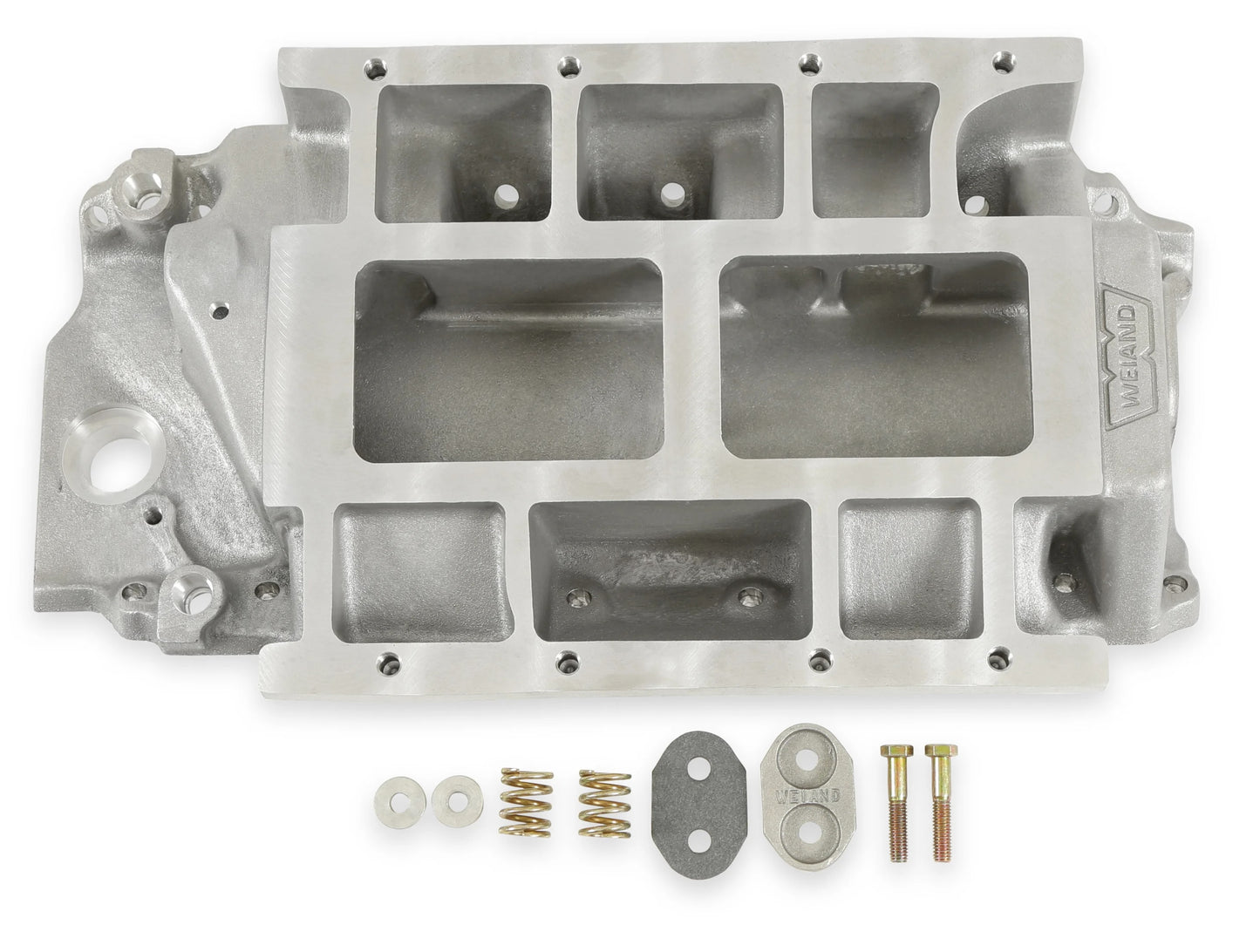

MANIFOLD,671 THRU 1471 CBB SAT

Brand New Weiand 6-71/8-71 Supercharger Intake Manifold for Chevy Big Block 396-502 with Rectangle Ports (Part #7151WND).

6-71/8-71 Chevy B/B 396-502

Compatible with:

• Chevrolet Big Block 396, 402, 427, & 454 V8 Engines


Note:

• Manifold is designed for rectangle or oval port heads. Must use Felpro Gasket P/N 1251 for installation on oval port heads.

Features:

• Standard deck only

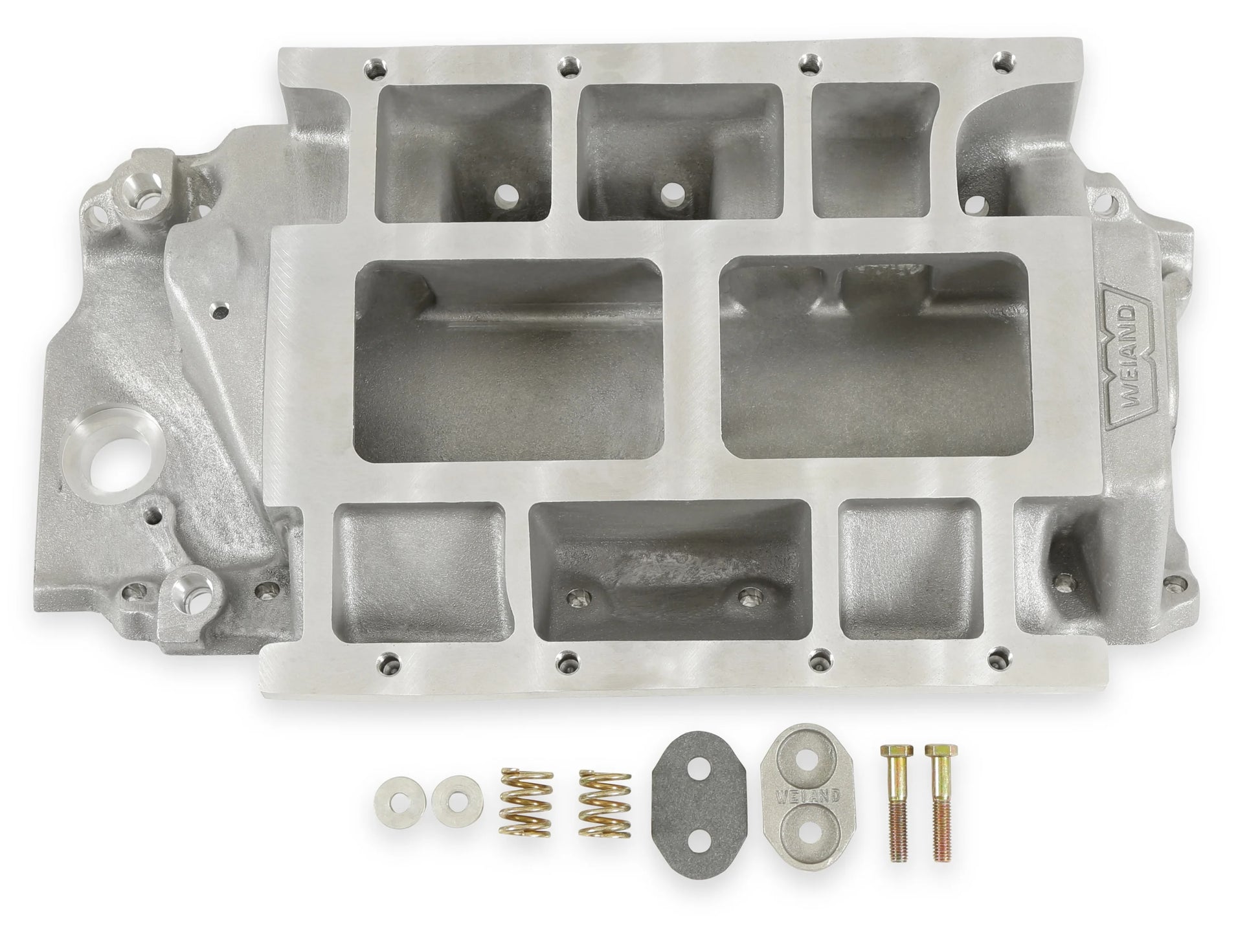

• Rear Mounted Pop Off Plate (Included)

• Boost Gauge port

• Precision-machined aluminum construction.

Specs:

• Blower Size: 6-71 & 8-71

• Brand: Weiand

• Carburetor Studs Included: No

• CNC Ported: No

• Construction: Cast

• Cylinder Head Port Shape: Rectangle

• Deck Height: 9.8 IN

• EGR Port: No

• Engine: Chevy Big Block V8

• Fuel Injectors Included: No

• Fuel Rail(s) Included: No

• Gasket Or Seal Included: No

• Intake Port Gasket(s) Included: No

• Material: Aluminum

• Nitrous Bung(s) Included: No

• Product Type: Supercharger Intake Manifold

• Removable Runners: No

• Removable Top/Lid: No

• Single Or Dual Plane Type: Dual

• Throttle Body Gasket Included: No

• Throttle Body Included: No

• Type of Component: Lower Manifold

• Vacuum Ports: Yes


You can view and download the instructions here, here, and here.
