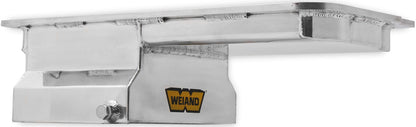

OIL PAN KIT,LS1/2/6 & LQ9,POLISHED,6 3/8,REAR SUMP

OIL PAN KIT,LS1/2/6 & LQ9,POLISHED,6 3/8,REAR SUMP

SKU:WEI 5049WND

Regular price $319.99
Regular price Sale price $319.99
View full details

BRAND NEW WEIAND FABRICATED ALUMINUM OIL PAN KIT WITH .375" FLANGE, REAR SUMP, 7 QUARTS, 6.375" DEPTH, POLISHED FINISH, FITS GM LS1,LS2,LS6 & LQ9 ENGINES

SAVE TIME AND AGGRAVATION WITH THIS MONEY SAVING OIL PAN KIT FOR GM LS ENGINES. EACH KIT COMES WITH EVERYTHING YOU NEED TO GET THE JOB OF CHANGING OUT YOUR OIL PAN!

NOTE: -10 AN OIL FITTING SIZE.

FITS:

  • GM LS1, LS2, LS6 & LQ9 ENGINES

FEATURES:

  • INCREASED 7 QT OIL CAPACITY TO KEEP YOUR HIGH PERFORMANCE ENGINE SYSTEMS FED PROPERLY
  • FEATURED 3/8" THICK PAN MOUNTING FLANGE FOR ENHANCED STRENGTH
  • BAFFLES KEEP OIL FROM SLOSHING DURING HARD ACCELERATION RESULTING IN OIL STARVATION
  • REAR SUMP DESIGN FOR GM LS1/2/6 AND LQ9 ENGINES

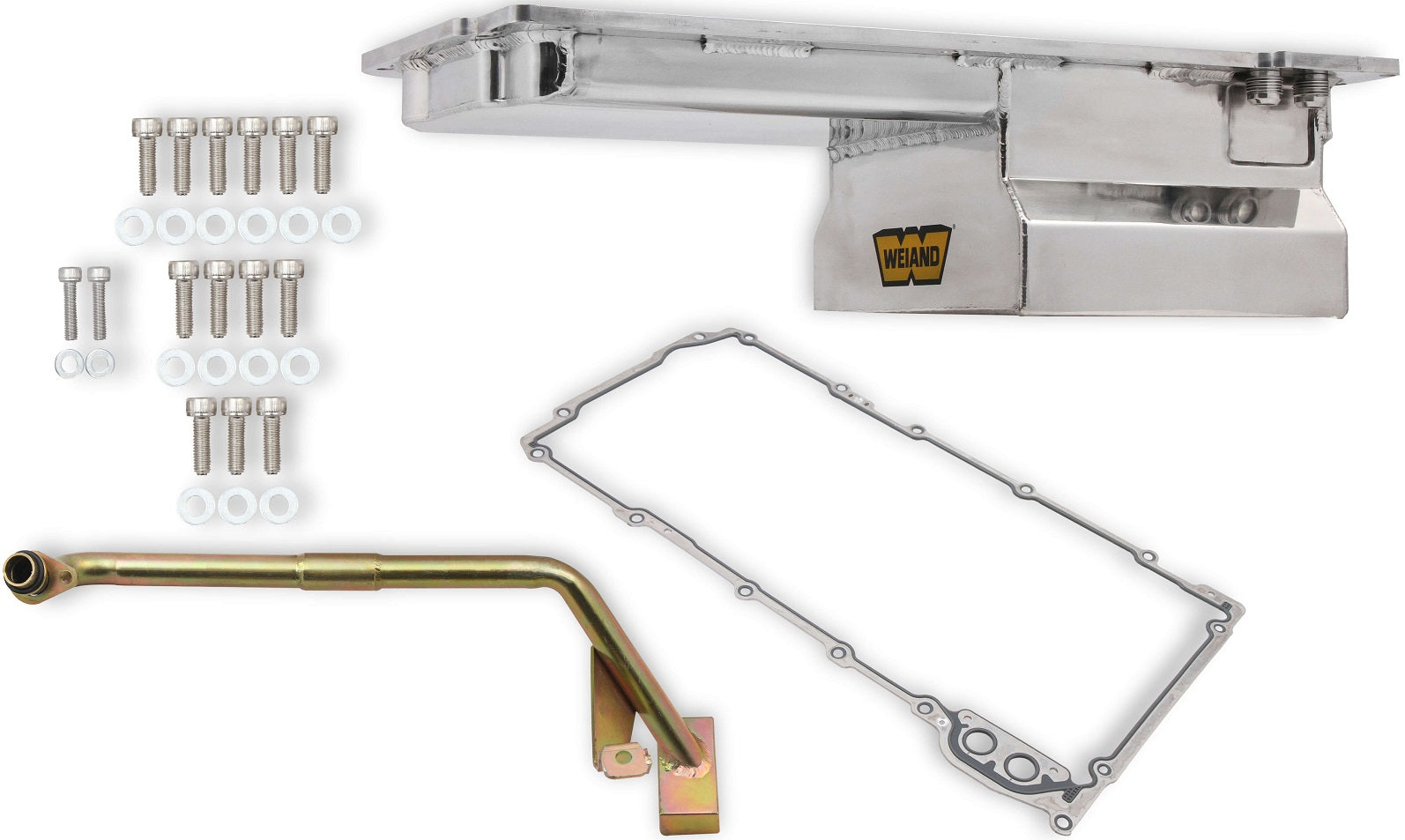

  • COMPLETE KIT INCLUDES OIL PAN, OIL PAN GASKET, OIL PAN PICKUP TUBE & OIL PAN MOUNTING HARDWARE

SPECS:

  • APPLICATION: GM LS ENGINES
  • BRAND: WEIAND
  • CRANK SCRAPER INCLUDED: NO
  • DIPSTICK LOCATION: NONE
  • EMISSION CODE: 5
  • FINISH: POLISHED
  • MATERIAL: ALUMINUM
  • OIL PAN CAPACITY: 7 QUARTS
  • OIL PAN DEPTH: 6.375"
  • OIL PAN TYPE: FABRICATED
  • PRODUCT TYPE: OIL PAN KIT
  • SUMP LOCATION: REAR
  • WINDAGE TRAY INCLUDED: NO
