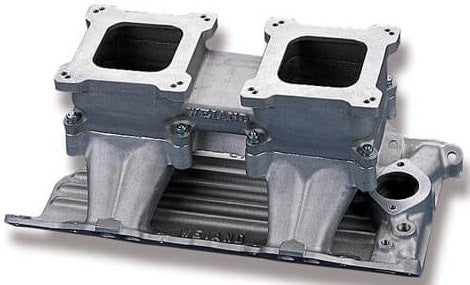

INTAKE MANIFOLD,SB MOPAR,HI-RAM

BRAND NEW WEIAND HI-RAM INTAKE MANIFOLD, 2800-8000 RPM,318 LATE STYLE,340,360, FITS CHRYSLER SMALL BLOCK V8

THESE HI-RAM SERIES TUNNEL RAM MANIFOLDS ARE USED PRIMARILY IN DRAG RACING, TRACTOR/TRUCK PULLS AND PERFORMANCE MARINE APPLICATIONS WHERE HIGH RPM PERFORMANCE IS REQUIRED. THE EFFECTIVE RPM RANGE IS BETWEEN 2,800 TO 8,000 RPM. THE WEIAND HI-RAM, WITH THE PATENTED D-SHAPED PORT RUNNERS AND LARGE PLENUM CHAMBER, PROVIDE OPTIMUM VELOCITY OF THE AIR/FUEL MIXTURE TO THE CYLINDER HEAD INTAKE PORTS. FOR MAXIMUM PERFORMANCE IN A NATURALLY ASPIRATED COMPETITION APPLICATION, THE WEIAND HI-RAM IS THE MANIFOLD OF CHOICE!

NOTE: USE SIDE-BY-SIDE 2 X 4 TUNNEL RAM CARBURETOR LINKAGE KIT # 4023. WHEN USING CARBURETORS WITH VACUUM OPERATED SECONDARIES, USE DIAPHRAGM HOUSING COVERS # 20-28, FOR MORE EVEN AND BALANCED SECONDARY OPERATION. MINOR MODIFICATIONS TO THE LINKAGE KIT MAY BE NECESSARY WITH THIS INTAKE MANIFOLD.

FITS:

• CHRYSLER SMALL BLOCK V8

FEATURES:

• 2 X 4 CARBURETOR TOP
• SQUARE FLANGE CARBURETOR MOUNTING
• SPECIAL D-SHAPED PORT RUNNER DESIGN
• POWER BAND: 2800-8000 RPM
• LARGE VOLUME PLENUM
• HEIGHT: FRONT 8.93", REAR 9.37"
• PORT SIZE: 2.08" HEIGHT 1.08" WIDTH
• CARB FLANGE CENTER-TO CENTER 9"
• WEIAND NOSTALGIA SERIES INTAKE MANIFOLD

SPECS:

• BRAND: WEIAND
• CONSTRUCTION: CAST
• EMISSION CODE: 3
• ENGINE: CHRYSLER SMALL BLOCK V8
• FINISH: SATIN
• FRONT HEIGHT: 8.93"
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: HI-RAM
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 9.37"
• RPM POWER BAND: 2800-8000

YOU CAN VIEW AND DOWNLOAD THE GENERAL INFORMATION HERE, AND BOLT NOTICE HERE.
