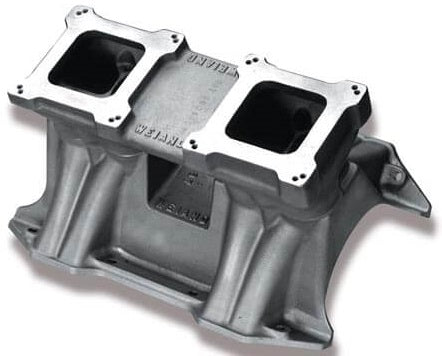

INTAKE MANIFOLD,BB MOPAR,HI-RAM

BRAND NEW WEIAND HI-RAM INTAKE MANIFOLD, 2500-8000 RPM,413,426 WEDGE, 440, FITS CHRYSLER BIG BLOCK V8

THESE TUNNEL RAM MANIFOLDS ARE USED PRIMARILY IN DRAG RACING, TRACTOR/TRUCK PULLS AND PERFORMANCE MARINE APPLICATIONS WHERE HIGH RPM PERFORMANCE IS REQUIRED. THE EFFECTIVE RPM RANGE IS BETWEEN 2,500 TO 8,000 RPM. WITH THE PATENTED D-SHAPED PORT RUNNERS AND LARGE PLENUM CHAMBER, PROVIDE OPTIMUM VELOCITY OF THE AIR/FUEL MIXTURE TO THE CYLINDER HEAD INTAKE PORTS. FOR MAXIMUM PERFORMANCE IN A NATURALLY ASPIRATED COMPETITION APPLICATION, THE WEIAND HI-RAM IS THE MANIFOLD OF CHOICE!

FITS:

• CHRYSLER BIG BLOCK V8

FEATURES:

• CARB FLANGE CENTER-TO CENTER 9-11/16"
• 2 X 4 CARBURETOR TOP
• SQUARE FLANGE CARBURETOR MOUNTING
• 2500-8000 RPM POWER BAND
• SPECIAL D-SHAPED PORT RUNNER DESIGN
• LARGE VOLUME PLENUM
• HEIGHT: FRONT 9.50", REAR 10.31"
• PORT SIZE: 2.14" HEIGHT 1.12" WIDTH
• CARB FLANGE CENTER-TO CENTER 9-11/16"
• WEIAND NOSTALGIA SERIES INTAKE MANIFOLD

SPECS:

• BRAND: WEIAND
• CONSTRUCTION: CAST
• EMISSION CODE: 4
• ENGINE: CHRYSLER BIG BLOCK V8
• FINISH: SATIN
• FRONT HEIGHT: 9.50"
• FUEL SYSTEM TYPE: CARB
• MANIFOLD TYPE: HI-RAM
• PRODUCT TYPE: INTAKE MANIFOLD
• REAR HEIGHT: 10.31"
• RPM POWER BAND: 2500-8000

YOU CAN VIEW AND DOWNLOAD THE GENERAL INFORMATION HERE, AND BOLT NOTICE HERE.
