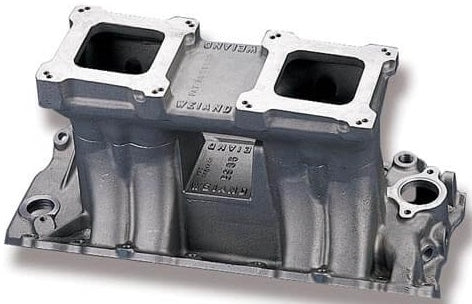

INTAKE MANIFOLD,BBC RECTANGULAR PORT HEADS,HI-RAM,2 CARBURETOR

INTAKE MANIFOLD,BBC RECTANGULAR PORT HEADS,HI-RAM,2 CARBURETOR

SKU:WEI 1985WND

Regular price $597.95
Regular price Sale price $597.95
View full details

BRAND NEW WEIAND HI-RAM INTAKE MANIFOLD, 396-502CI, RECTANGULAR PORT HEADS, FITS CHEVY BIG BLOCK V8

HI-RAM SERIES TUNNEL RAM MANIFOLDS ARE USED PRIMARILY IN DRAG RACING, TRACTOR/TRUCK PULLS AND PERFORMANCE MARINE APPLICATIONS WHERE HIGH RPM PERFORMANCE IS REQUIRED. THE EFFECTIVE RPM RANGE IS BETWEEN 2,800 TO 8,000 RPM. THE WEIAND HI-RAM, WITH THE PATENTED D-SHAPED PORT RUNNERS AND LARGE PLENUM CHAMBER, PROVIDE OPTIMUM VELOCITY OF THE AIR/FUEL MIXTURE TO THE CYLINDER HEAD INTAKE PORTS. FOR MAXIMUM PERFORMANCE IN A NATURALLY ASPIRATED COMPETITION APPLICATION, THE WEIAND HI-RAM IS THE MANIFOLD OF CHOICE! THIS MANIFOLD IS DESIGNED TO BE USED WITH PERFORMANCE RECTANGULAR PORT HEADS.

NOTE: GM HEI WILL NOT CLEAR, USE SIDE-BY-SIDE 2 X 4 TUNNEL RAM CARBURETOR LINKAGE KIT # 4022. WHEN USING CARBURETORS WITH VACCUM OPERATED SECONDARIES, USE DIAPHRAGM HOUSING COVERS # 20-28, FOR MORE EVEN AND BALANCED SECONDARY OPERATION.WILL FIT TALL BLOCKS WITH USE OF WEIAND P/N 8204 MANIFOLD SPACER PLATE KIT.

FITS:

  • CHEVY BIG BLOCK V8

FEATURES:

  • 2 X 4 CARBURETOR TOP
  • SQUARE FLANGE CARBURETOR MOUNTING
  • SPECIAL D-SHAPED PORT RUNNER DESIGN
  • LARGE VOLUME PLENUM
  • POWER BAND: 2500-7800 RPM
  • HEIGHT: FRONT 10.12", REAR 10.93"
  • PORT SIZE: 2.34" HEIGHT 1.5" WIDTH
  • CARB FLANGE CENTER-TO CENTER 9-11/16"
  • WEIAND NOSTALGIA SERIES INTAKE MANIFOLD

SPECS:

  • BRAND: WEIAND
  • CONSTRUCTION: CAST
  • EMISSION CODE: 4
  • ENGINE: CHEVY BIG BLOCK V8
  • FINISH: SATIN
  • FRONT HEIGHT: 10.12"
  • FUEL SYSTEM TYPE: CARB
  • MANIFOLD TYPE: HI-RAM
  • PRODUCT TYPE: INTAKE MANIFOLD
  • REAR HEIGHT: 10.93"
  • RPM POWER BAND: 2500-7800

YOU CAN VIEW AND DOWNLOAD THE GENERAL INFORMATION HERE, AND BOLT NOTICE HERE.
