ZONE 2016-2023 TOYOTA TACOMA 4WD 4" LIFT KIT

ZONE 2016-2023 TOYOTA TACOMA 4WD 4" LIFT KIT

STU ZONT8

$1,199.99
$1,199.99
View full details

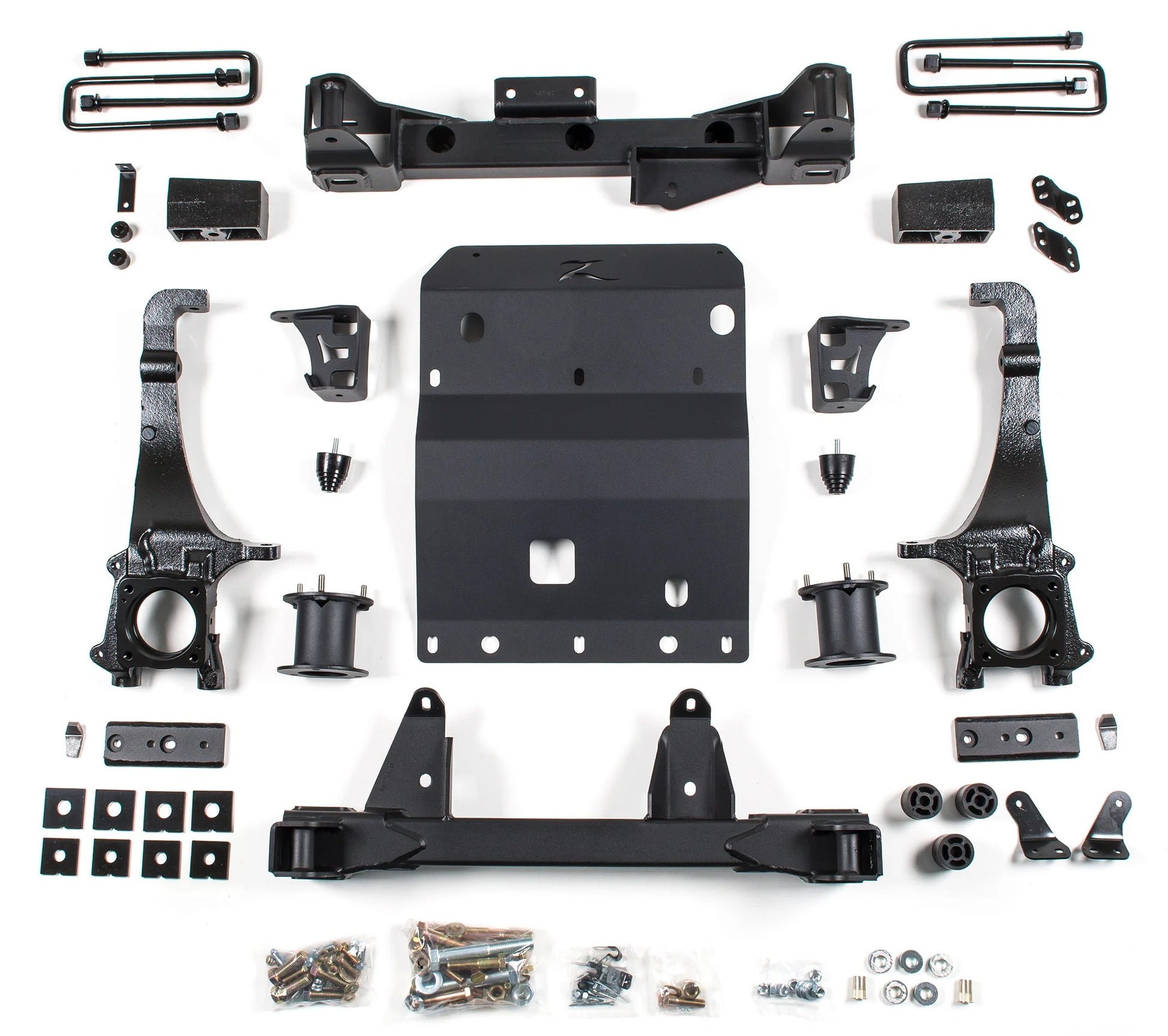

Brand New Zone Offroad 4" Crossmember & Strut Spacer Kit (Part #ZONT8).

Take your Tacoma to new heights with this 4" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 33" tires.

Fits:

  • Toyota:
    • 2016-2023 Tacoma 4WD

Notes:

  • System will work on RWD PreRunner models.
  • Will not work on TRD Pro Models.
  • Requires frame bracket modification.
  • Stock wheels cannot be reinstalled. 18" or larger wheels must be used.
  • Recommended Tires & Wheels (Trimming may be required): 33 x 12.5 with 18 x 9 and 4.5 in. Backspace, 33 x 12.5 with 20 x 9 and 4.5 in. Backspace, or 33 x 12.5 with 22 x 9 and 4.5 in. Backspace

Features:

  • High strength crossmembers to correct lower control arm positioning.
  • Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility.
  • Top mounted strut spacers to provide lift and install easily.
  • Full width belly skid plate offers improved off-road protection.
  • Rear lift blocks and u-bolts to lift and level the stance.
  • Bump stop, sway bar and brake line relocation brackets to correct operating angles

Specs:

  • Front Lift Height: 4"
  • Rear Lift Height: 3"
  • Front Lift Method: Cross Member & Strut Spacer
  • Rear Lift Method: Block

You can view and download the assembly/instruction booklet here.
