ZONE 2005-2015 TOYOTA TACOMA 4WD 4" LIFT KIT WITH NITRO SHOCKS

ZONE 2005-2015 TOYOTA TACOMA 4WD 4" LIFT KIT WITH NITRO SHOCKS

STU ZONT4N

$1,286.95
$1,286.95
View full details

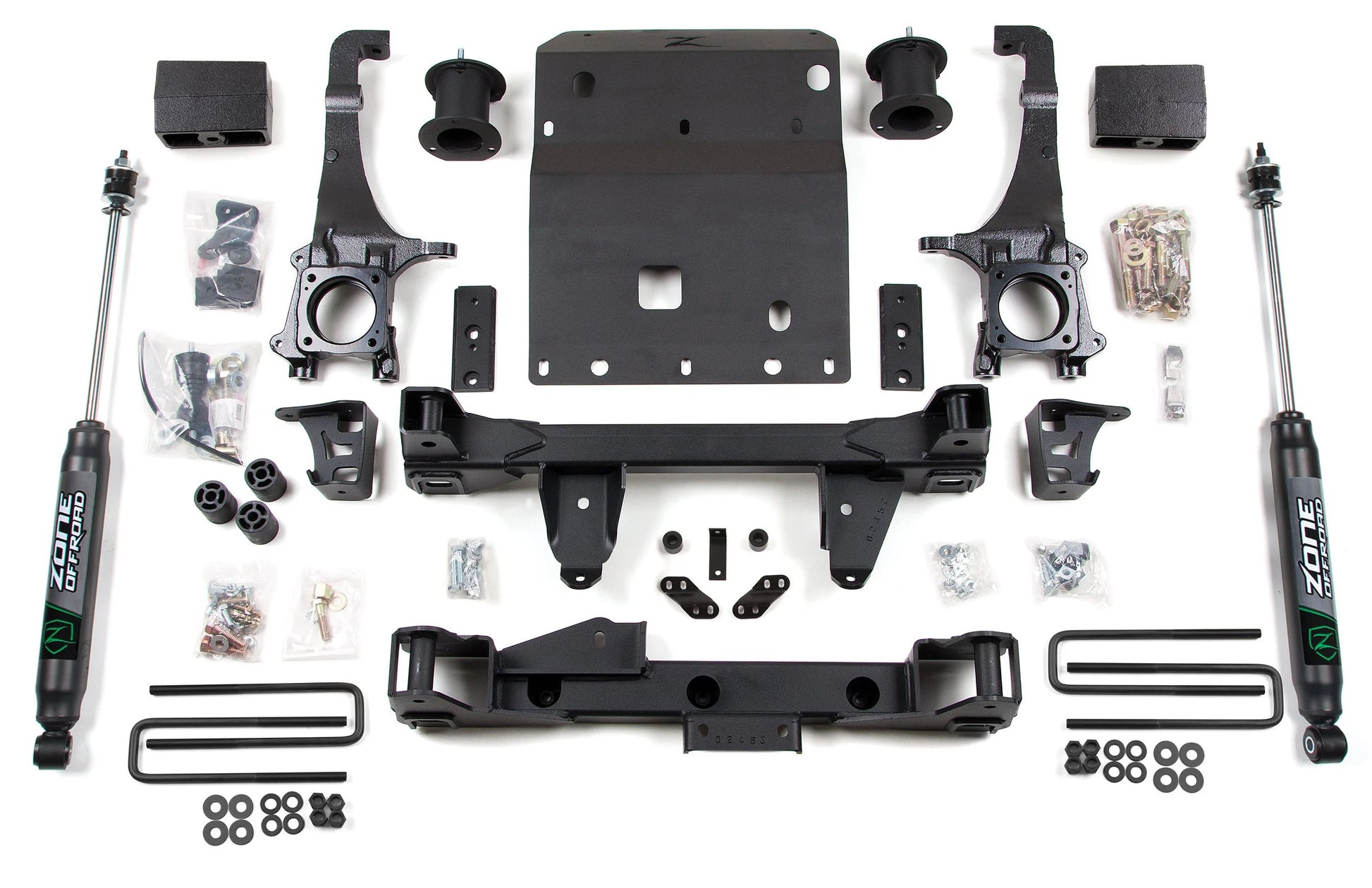

Brand New Zone Offroad 4" Crossmember & Strut Spacer Lift Kit with Nitro Shocks (Part #ZONT4N).

Raise it up with this 4" Lift Kit made for serious off road adventure. Featuring a combination of strut spacers, iron knuckle for the front and cast blocks for the rear. This kit clears your 4WD 2005-2015 Toyota Tacoma for tires up to 33 inches with some trimming.

Fits:

  • Toyota:
    • 2005-2015 Tacoma 4WD

Notes:

  • System will also work on RWD PreRunner models.
  • Will NOT work on TRD Pro Models.
  • Factory wheels cannot be reinstalled with this lift kit, 18" or larger aftermarket wheels required.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, 35 x 12.5 with 20 x 9 and 4.5 in. Backspace, or 35 x 12.5 with 22 x 9 and 4.5 in. Backspace

Features:

  • High strength crossmembers to correct lower control arm positioning.
  • Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility.
  • Top mounted strut spacers to provide lift and install easily.
  • Full width belly skid plate offers improved off-road protection.
  • Rear lift blocks and u-bolts to lift and level the stance.
  • Bump stop, sway bar and brake line relocation brackets to correct operating angles

Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

Specs:

  • Front Lift Height: 4"
  • Rear Lift Height: 3"
  • Front Lift Method: Cross Member & Strut Spacer
  • Rear Lift Method: Block

You can view and download the assembly/instruction booklet here.
