ZONE 2005-2015 TOYOTA TACOMA 4WD 4" LIFT KIT WITH FOX SHOCKS

ZONE 2005-2015 TOYOTA TACOMA 4WD 4" LIFT KIT WITH FOX SHOCKS

STU ZONT4F

$1,399.99
$1,399.99
View full details

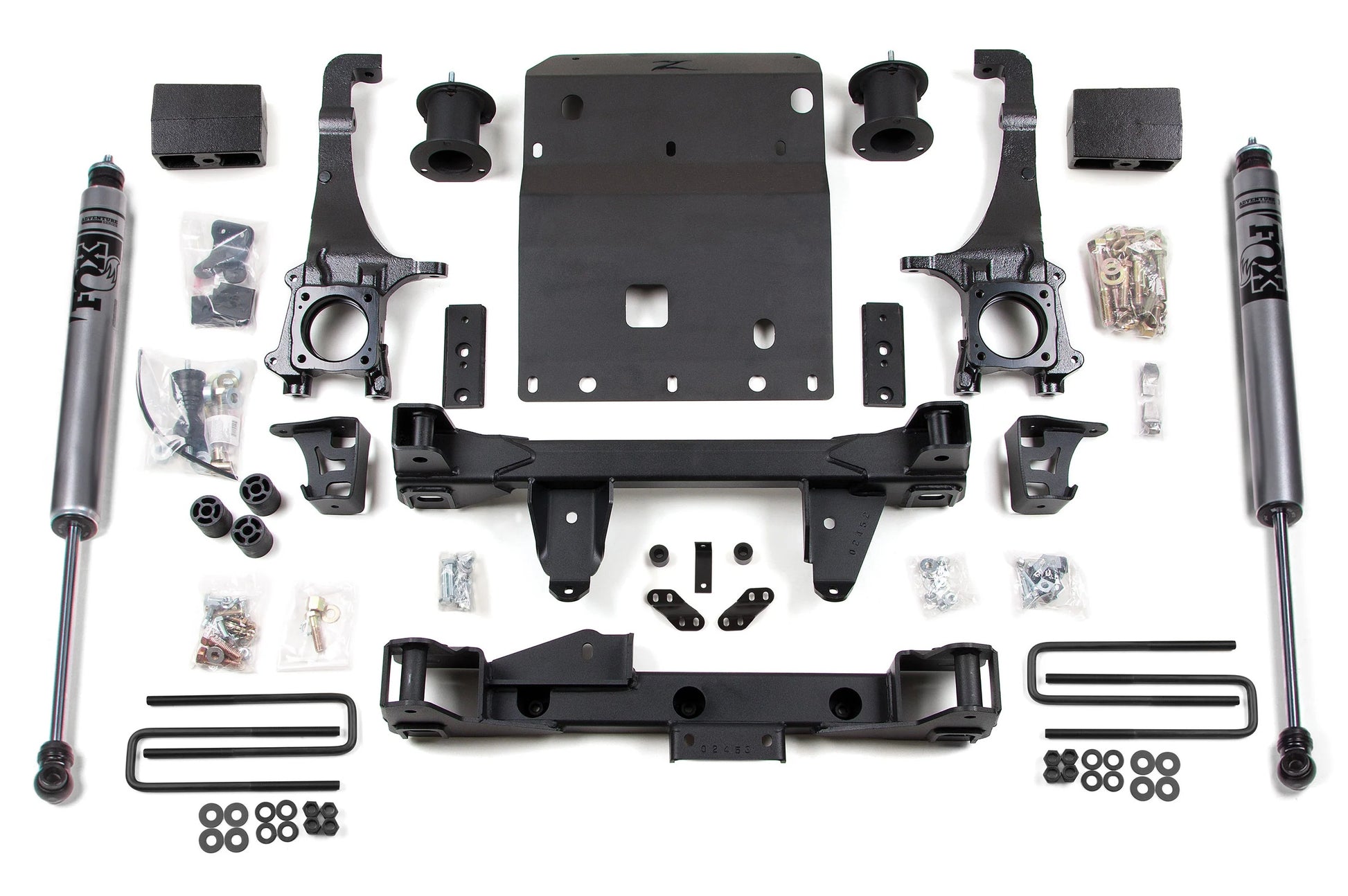

Brand New Zone Offroad 4" Crossmember & Strut Spacer Lift Kit with Fox Shocks (Part #ZONT4F).

Raise it up with this 4" Lift Kit made for serious off road adventure. Featuring a combination of strut spacers, iron knuckle for the front and cast blocks for the rear. This kit clears your 4WD 2005-2015 Toyota Tacoma for tires up to 33 inches with some trimming.

Fits:

  • Toyota:
    • 2005-2015 Tacoma 4WD

Notes:

  • System will also work on RWD PreRunner models.
  • Will NOT work on TRD Pro Models.
  • Factory wheels cannot be reinstalled with this lift kit, 18" or larger aftermarket wheels required.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, 35 x 12.5 with 20 x 9 and 4.5 in. Backspace, or 35 x 12.5 with 22 x 9 and 4.5 in. Backspace

Features:

  • High strength crossmembers to correct lower control arm positioning.
  • Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility.
  • Top mounted strut spacers to provide lift and install easily.
  • Full width belly skid plate offers improved off-road protection.
  • Rear lift blocks and u-bolts to lift and level the stance.
  • Bump stop, sway bar and brake line relocation brackets to correct operating angles

FOX 2.0 Adventure Series:

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Height: 4"
  • Rear Lift Height: 3"
  • Front Lift Method: Cross Member & Strut Spacer
  • Rear Lift Method: Block

You can view and download the assembly/instruction booklet here.
