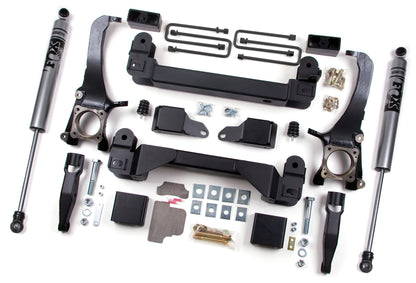

ZONE 2007-2015 TOYOTA TUNDRA 4WD 5" LIFT KIT WITH FOX SHOCKS

ZONE 2007-2015 TOYOTA TUNDRA 4WD 5" LIFT KIT WITH FOX SHOCKS

STU ZONT1F

$1,479.99
$1,479.99
View full details

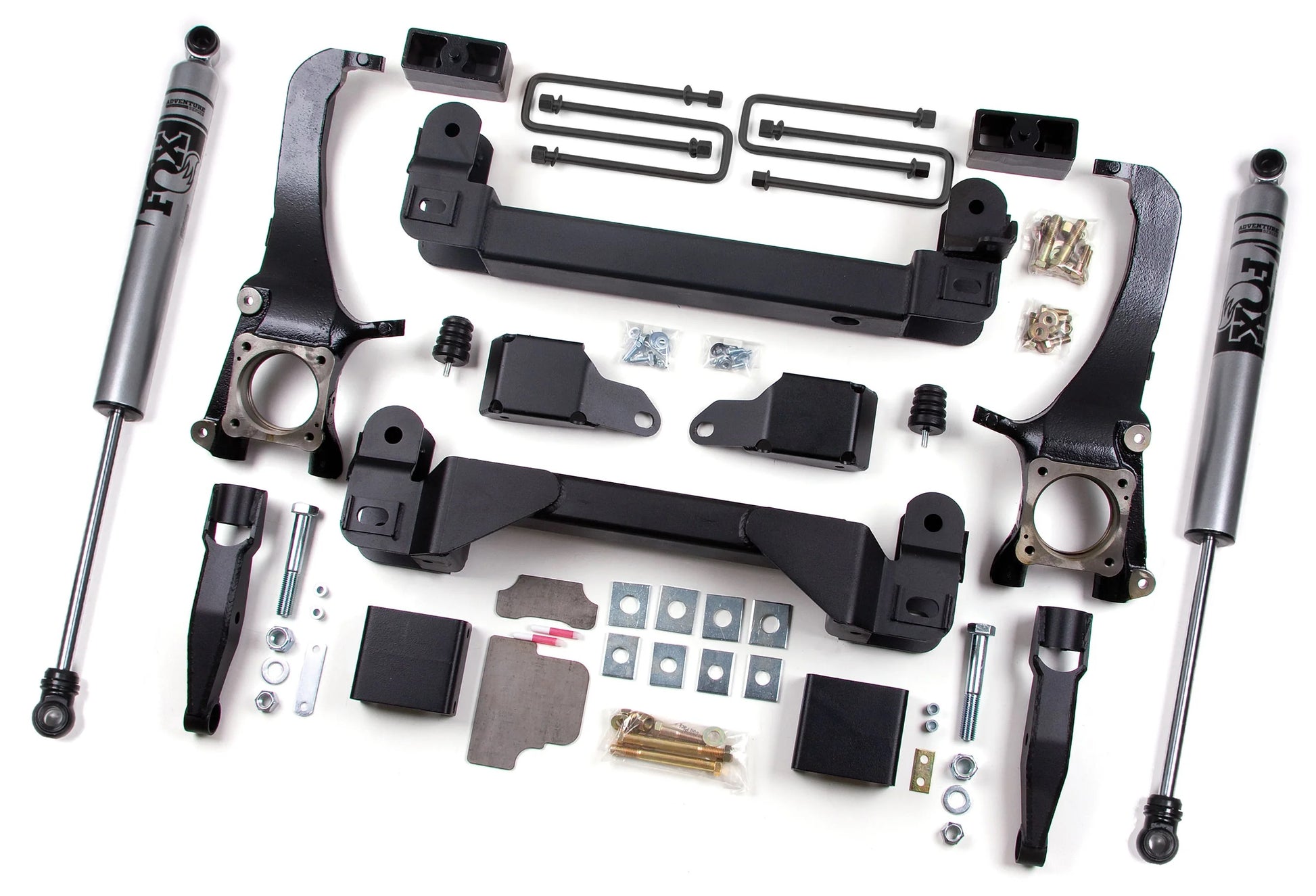

Brand New Zone Offroad 5" Crossmember & Strut Spacer Lift Kit with Fox Shocks (Part #ZONT1F).

The Tundra has some serious power, take advantage of it with this 5" Lift Kit that makes your truck an off road machine. Iron knuckles and heavy-duty, boxed crossmembers integrate with differential mounts to lock everything together. Fits 2007-2015 Toyota Tundra.

Fits:

  • Toyota:
    • 2007-2015 Tundra 4WD

Notes:

  • Will NOT work on 2015 TRD Pro Models.
  • Will work with Bilstein (yellow) factory front struts on 2014-2015 models.
  • RWD models may require driveline modification.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  • Models equipped with 6 piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.
  • Factory 18" wheels cannot be reinstalled with this kit due to steering interference.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 18 x 9 and 5.5 in. Backspace, 35 x 12.5 with 20 x 9 and 6.25 in. Backspace, or 35 x 12.5 with 22 x 9 and 6.25 in. Backspace

Features:

  • High strength crossmembers to correct lower control arm positioning.
  • Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility.
  • Lower strut extensions to provide lift and install easily.
  • Weld-in chassis plates add strength and rigidity.
  • Rear lift blocks and u-bolts to lift and level the stance.
  • Sway bar, brake line, and bump stop relocation brackets to correct operating angles

FOX 2.0 Adventure Series:

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Height: 5"
  • Rear Lift Height: 3"
  • Front Lift Method: Cross Member & Strut Spacer
  • Rear Lift Method: Block

You can view and download the assembly/instruction booklet here.
