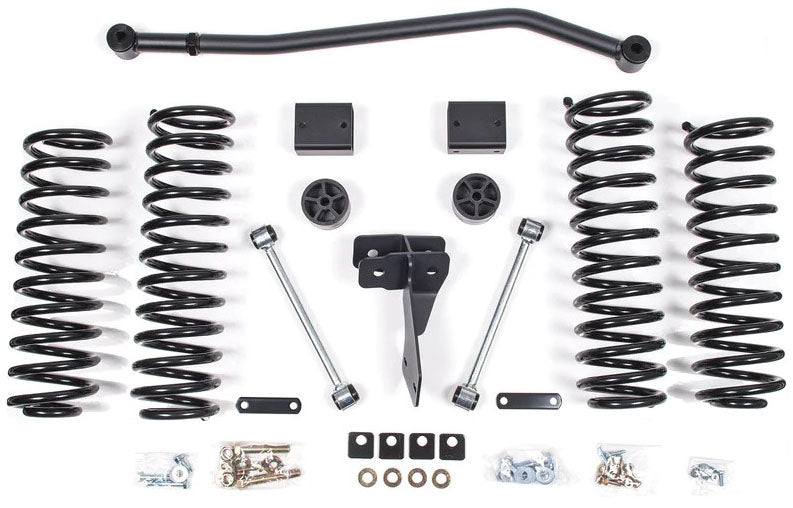

ZONE 2012-2018 JEEP WRANGLER JK 4-DOOR 4" COIL SPRING LIFT KIT

BRAND NEW ZONE OFFROAD 4" COIL SPRING LIFT KIT (PART #ZONJ38)

WANT THE PERFECT COMBINATION OF OFF ROAD PERFORMANCE AND ON ROAD HANDLING? THIS 4" SUSPENSION LIFT LETS YOU CLEAR 35" TIRES AND HAVE THE GROUND CLEARANCE AND WHEEL TRAVEL YOU WANT WHEN YOU VENTURE OFF ROAD. FITS 4 DOOR 4WD 2012 - 2018 JEEP WRANGLER (JK).

INCLUDES ZONE EXHAUST EXTENSION WHICH IS NECESSARY FOR THE 2012-2018 MODELS.

COMPATIBLE WITH:

• JEEP:
• 2012-2018 WRANGLER JK 4 DOOR 4WD

NOTE: WHEELS / TIRES: FACTORY WHEELS CANNOT BE REINSTALLED WITH LIFT KIT DUE TO REAR SWAY BAR INTERFERENCE. FOLLOW RECOMMENDED WHEEL/TIRE SPECIFICATIONS FOR PROPER CLEARANCE.

FEATURES:

• BRAKE LINE RELOCATION BRACKETS INCREASE WHEEL TRAVEL AND ALLOW USE OF FACTORY BRAKE LINES
• BUMP STOP EXTENSIONS PROPERLY LIMIT UP-TRAVEL, PROTECTING YOUR VEHICLE
• FULL LENGTH REPLACEMENT COIL SPRINGS ADD ADDITIONAL RIDE HEIGHT WHILE MAINTAINING RIDE QUALITY
• HEAVY-DUTY, ADJUSTABLE FRONT TRACK BAR RE-CENTERS FRONT AXLE AND ADDS STRENGTH
• HEAVY-DUTY, EXTENDED-LENGTH SWAY BAR LINKS IMPROVE OPERATING ANGLE FOR REDUCED BODY ROLL
• LOWER CAM WASHERS CORRECT AXLE CASTER FOR FRONT END ALIGNMENT
• REAR TRACK BAR BRACKET CORRECTLY POSITIONS REAR AXLE UNDER VEHICLE

SPECS:

• FRONT LIFT HEIGHT: 4"
• REAR LIFT HEIGHT: 4"
• FRONT LIFT METHOD: COIL SPRINGS
• REAR LIFT METHOD: COIL SPRINGS
• LIFT TYPE: LIFT KIT
• WHEEL SIZE: 16 X 8
• BACK SPACING: 4.5"
• MAX TIRE SIZE: 35 X 12.5
• WHEEL SIZE 2: 17 X 9
• BACK SPACING 2: 4.5"
• MAX TIRE SIZE 2: 35 X 12.5
• WHEEL SIZE 3: 18 X 9
• BACK SPACING 3: 4.5"
• MAX TIRE SIZE 3: 35 X 12.5
• IS ADJUSTABLE: NO
• CUTTING REQUIRED: NO
• ACCOMMODATES FACTORY WHEELS: NO
• WELDING REQUIRED: NO
