ZONE 2012-2018 JEEP WRANGLER JK 4-DOOR 3" COIL SPRING LIFT KIT,NITRO SHOCKS

ZONE 2012-2018 JEEP WRANGLER JK 4-DOOR 3" COIL SPRING LIFT KIT,NITRO SHOCKS

SKU:STU ZONJ36N

Regular price $531.70
Regular price Sale price $531.70
View full details

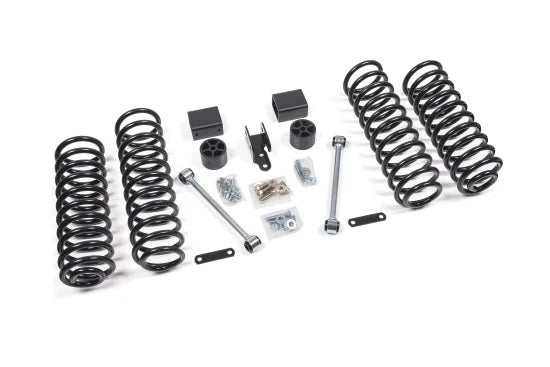

Brand New Zone Offroad 3" Coil Spring Lift Kit with Nitro Shocks (Part #ZONJ36N).

Lift your Jeep and raise your performance expectations with this 3" Lift Kit. Increase your droop, wheel travel and get enough lift to fit 35" tires. Heavy-duty coil springs handle all the abuse you can throw at them. Fits 2012-2018 4WD 4 door Jeep Wrangler JKs. Fits 4 door 4WD 2012 - 2018 Jeep Wrangler (JK).

Includes Zone's Exhaust Extension which is necessary for the 2012-2018 models.

Fits:

  • Jeep:
    • 2012-2018 Wrangler JK 4 Door 4WD

Features:

  • Brake line relocation brackets increase wheel travel and allow use of factory brake lines.
  • Bump stop extensions properly limit up-travel, protecting your vehicle.
  • Full length replacement coil springs add additional ride height while maintaining ride quality.
  • Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll.
  • Lower cam washers correct axle caster for front end alignment.
  • Rear track bar bracket correctly positions rear axle under vehicle.

Specs:

  • Front Lift Height: 3"
  • Rear Lift Height: 3"
  • Front Lift Method: Coil Springs
  • Rear Lift Method: Coil Springs
  • Lift Type: Lift Kit
  • Wheel Size: 16 x 8
  • Back Spacing: 4.5"
  • Max Tire Size: 35 x 12.5
  • Wheel Size 2: 17 x 9
  • Back Spacing 2: 4.5"
  • Max Tire Size 2: 35 x 12.5
  • Wheel Size 3: 18 x 9
  • Back Spacing 3: 4.5"
  • Max Tire Size 3: 35 x 12.5
  • Is Adjustable: No
  • Cutting Required: No
  • Accommodates Factory Wheels: No
  • Welding Required: No

Notes:

  • Wheels / Tires: Factory wheels cannot be reinstalled with lift kit due to rear sway bar interference. Follow recommended wheel/tire specifications for proper clearance.

You can view and download the assembly/instruction booklet here.
