ZONE 2012-2018 JEEP WRANGLER JK 4-DOOR 3" SUSPENSION LIFT KIT,FOX SHOCKS

ZONE 2012-2018 JEEP WRANGLER JK 4-DOOR 3" SUSPENSION LIFT KIT,FOX SHOCKS

STU ZONJ36F

$791.70
$791.70
View full details

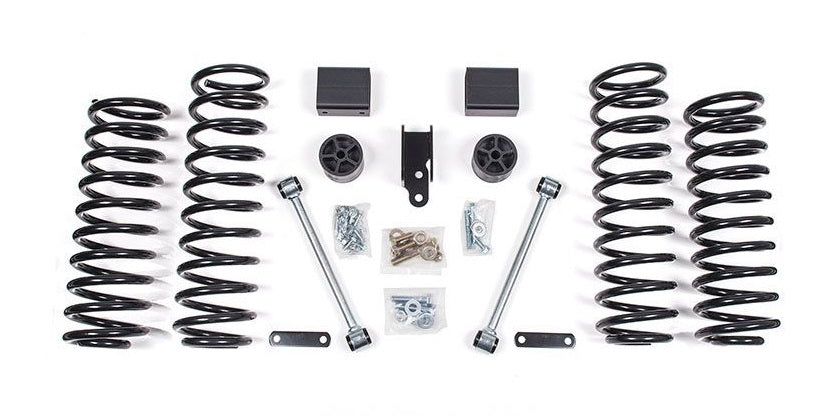

Brand New Zone Offroad 3" Coil Spring Lift Kit with Fox Shocks (Part #ZONJ36F).

Lift your Jeep and raise your performance expectations with this 3" Lift Kit. Increase your droop, wheel travel and get enough lift to fit 35" tires. Heavy-duty coil springs handle all the abuse you can throw at them. Includes Zone's Exhaust Extension which is necessary for the 2012-2018 models.

Fits:

  • Jeep:
    • 2012-2018 Wrangler JK 4 Door 4WD

Notes:

  • Wheels / Tires: Factory wheels cannot be reinstalled with lift kit due to rear sway bar interference.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 4.5 in. Backspace or 37 x 12.5 with 17 x 9 and 4.5 in. Backspace

Features:

  • Brake line relocation brackets increase wheel travel and allow use of factory brake lines.
  • Bump stop extensions properly limit up-travel, protecting your vehicle.
  • Full length replacement coil springs add additional ride height while maintaining ride quality.
  • Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll.
  • Lower cam washers correct axle caster for front end alignment.
  • Rear track bar bracket correctly positions rear axle under vehicle.

FOX 2.0 Adventure Series:

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Height: 3"
  • Rear Lift Height: 3"
  • Front Lift Method: Coil Springs
  • Rear Lift Method: Coil Springs

You can view and download the assembly/instruction booklet here.
