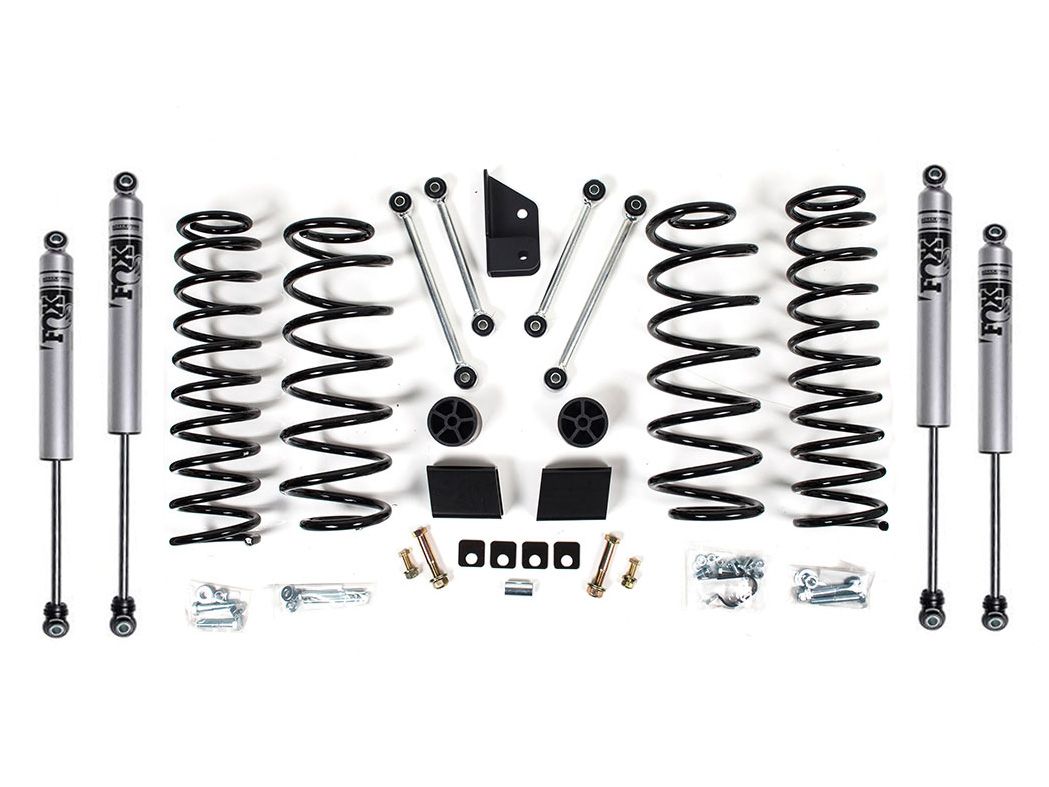

ZONE 2018-2023 JEEP WRANGLER JL 2-DOOR 3" SUSPENSION LIFT KIT WITH FOX SHOCKS

ZONE 2018-2023 JEEP WRANGLER JL 2-DOOR 3" SUSPENSION LIFT KIT WITH FOX SHOCKS

STU ZONJ33F

$760.75
$760.75
View full details

Brand New Zone Offroad 3" Suspension Lift Kit with Fox Shocks (Part #ZONJ33F).

Designed as a complete system, this 3" lift includes everything necessary to properly lift your new Wrangler JL while allowing clearance for 35-37" tires. The extra ride height comes from a set of replacement JL-specific coil springs at each corner. These springs are engineered for additional ride height, improved suspension articulation, and to provide an custom-tailored "spring rate" to compensate for the mass of aftermarket wheels/tires and extra gear / off-roading equipment. In additional to replacement coil springs and shocks, this kit includes front lower control arm cam washers to correct caster alignment. Extended-length, heavy-duty front and rear sway bar links are supplied to correct sway bar geometry, while bump stop extensions limit suspension up-travel. Wrapping up this kit is a heavy-duty rear track bar bracket, used to re-center the rear axle and all the necessary hardware required to complete the full install.

Fox Performance Shocks:

  • 2" Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Fits:

  • Jeep:
    • 2018-2023 Wrangler JL 2 Door 4WD

Features:

  • F/R coil springs to set ride height, maintain ride and improve articulation
  • F/R extended sway bar links to correct sway bar operating angle
  • F/R bump stop extensions to properly limit suspension up travel
  • Front LCA cam washers to correct front end caster
  • Rear track bar bracket to recenter rear axle
  • Allows clearance for 35-37" tires

Specs:

  • Front Lift Height: 3"
  • Rear Lift Height: 3"
  • Material: Steel
  • Front Lift Method: Coil Springs
  • Rear Lift Method: Coil Springs
  • Lift Type: Lift Kit
  • Wheel Size: 17 x 9
  • Back Spacing: 4.5"
  • Max Tire Size: 35 x 12.5
  • Finish: Powdercoat
  • Cutting Required: No
  • Accommodates Factory Wheels: No
  • Welding Required: No

Notes:

  • Stock wheels cannot be reinstalled w/o installing wheel spacers due to clearance issue to rear sway bar links.

You can view and download the complete assembly instruction booklet here.
