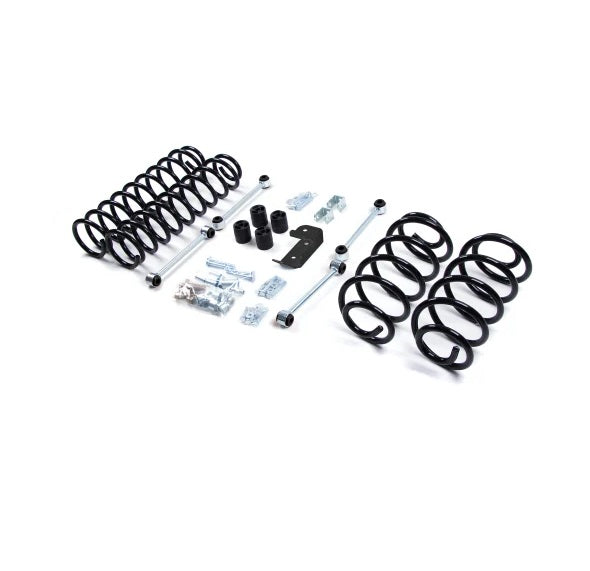

ZONE 2003-2006 JEEP WRANGLER TJ 3" SUSPENSION LIFT KIT

BRAND NEW ZONE OFFROAD 3" COIL SPRING LIFT KIT, COMPATIBLE WITH 2003-2006 JEEP WRANGLER TJ 4WD

LIFT YOUR JEEP AND RAISE YOUR PERFORMANCE WITH THIS 3" LIFT KIT. INCREASE YOUR DROOP, WHEEL TRAVEL AND GET ENOUGH LIFT TO FIT 33" TIRES. HEAVY-DUTY COIL SPRINGS HANDLE ALL THE ABUSE YOU CAN THROW AT THEM AND STILL HOLD THEIR ORIGINAL HEIGHT.

NOTE: FACTORY LCAS? OPTIONAL FRONT ALIGNMENT CAM BOLTS ARE RECOMMENDED WHEN USING FACTORY LENGTH FRONT/LOWER CONTROL ARMS. TJS EQUIPPED WITH ALIGNMENT CAM BOLTS FROM THE FACTORY CAN REUSE FACTORY CAMS. ADD IN CONFIGURATION / CHECKOUT.

NOTE: ALSO FITS RUBICON AND UNLIMITED MODELS.

COMPATIBLE WITH:

• JEEP:
• 2003-2006 WRANGLER TJ 4WD

FEATURES:

• BUMP STOP EXTENSIONS PROPERLY LIMIT UP-TRAVEL, PROTECTING YOUR VEHICLE
• HEAVY-DUTY, EXTENDED-LENGTH SWAY BAR LINKS IMPROVE OPERATING ANGLE FOR REDUCED BODY ROLL
• REAR TRACK BAR BRACKET CORRECTLY POSITIONS REAR AXLE UNDER VEHICLE
• TRANSFER CASE DROP KIT INCLUDED TO CORRECT REAR DRIVELINE ANGLE AND ALLOW USE OF FACTORY REAR DRIVESHAFT

SPECS:

• FRONT LIFT HEIGHT: 3"
• REAR LIFT HEIGHT: 3"
• FRONT LIFT METHOD: COIL SPRINGS
• REAR LIFT METHOD: COIL SPRINGS
• LIFT TYPE: LIFT KIT
• WHEEL SIZE: 15 X 8
• BACK SPACING: 3.5"
• MAX TIRE SIZE: 33 X 12.5
• WHEEL SIZE: 16 X 8
• BACK SPACING: 3.5"
• MAX TIRE SIZE: 33 X 12.5
• IS ADJUSTABLE: NO
• CUTTING REQUIRED: NO
• ACCOMMODATES FACTORY WHEELS: YES
• WELDING REQUIRED: NO

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS LIFT KIT HERE.
