ZONE 4.5" COIL SPRING LIFT KIT WITH NITRO SHOCKS,84-01 JEEP XJ W/ CHRYSLER REAR

ZONE 4.5" COIL SPRING LIFT KIT WITH NITRO SHOCKS,84-01 JEEP XJ W/ CHRYSLER REAR

STU ZONJ23N

$803.65
$803.65
View full details

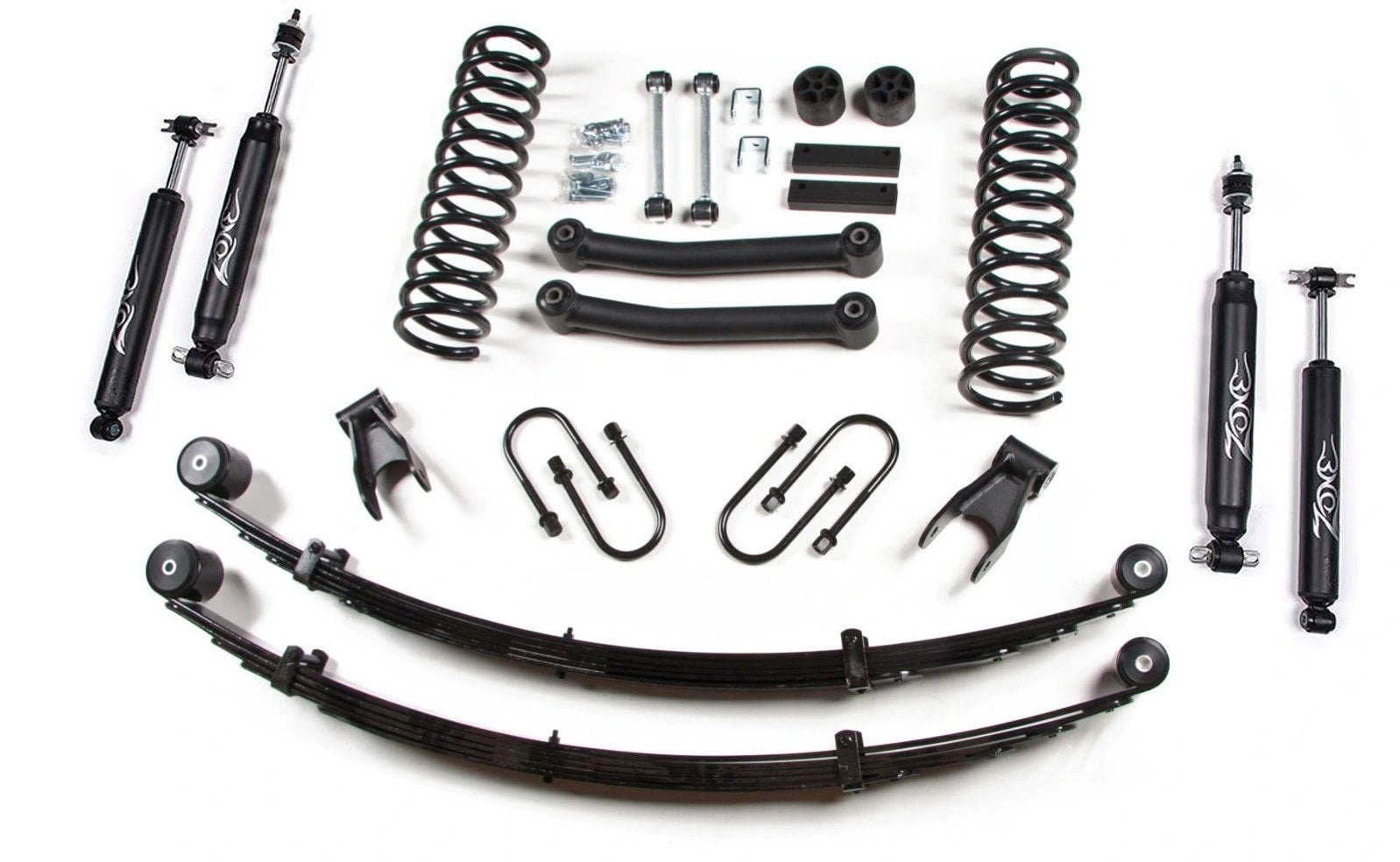

Brand New Zone Offroad 4.5" Coil Spring Lift Kit with Zone Nitro Shocks (Part #ZONJ23N).

Leave the pavement and explore more in your Jeep with this 4.5" Lift Kit with rear leaf springs. Fit 32" tires and get the ground clearance and wheel travel you want in your 4WD 1984-2001 Cherokee XJ. Yet another kit from enthusiasts, for enthusiasts.

Notes:

  • Leaf springs not designed for excess additional cargo weight, lower ride height may result.
  • Check Rear Axle Diameter: The XJ was manufactured with different rear axles. You’ll need to identify yours to complete an order. To tell the difference, measure the inner diameter (I.D.) of your rear U-bolts. The Chrysler 8.25 rear axle uses a 3" I.D. U-bolt and the Dana 35 rear axle requires a 2-3/4" I.D. U-bolt.

Fits:

  • Jeep:
    • 1984-2001 Cherokee XJ with Chrysler 8.25 Rear Axle

Features:

  • Brake line relocation brackets allow re-use of factory brake lines.
  • Full length replacement coil springs add additional ride height while maintaining ride quality.
  • Heavy-duty lower control arms improve strength and articulation while correcting caster.
  • Heavy-duty replacement front leaf springs provide lift and great ride quality.
  • Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll.
  • High-strength, black e-coated U-bolts.
  • High-strength shackles provide lift and improve articulation.
  • High-strength shackles provide lift and improve articulation.
  • Transfer case drop kit included to correct rear driveline angle and allow use of factory rear driveshaft.

Nitro Series Shocks Features:

  • Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance
  • Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft
  • Bushings and sleeves included for easy, direct replacement installation

Specs:

  • Front Lift Height: 4.5"
  • Rear Lift Height: 4"
  • Front Lift Method: Coil Springs
  • Rear Lift Method: Leaf Springs
  • Lift Type: Lift Kit
  • Wheel Size: 15 x 8
  • Back Spacing: 4.75"
  • Max Tire Size: 31 x 10.5
  • Wheel Size 2: 15 x 8
  • Back Spacing 2: 4.75"
  • Max Tire Size 2: 32 x 11.5
  • Wheel Size 3: 16 x 8
  • Back Spacing 3: 4.75"
  • Max Tire Size 3: 32 x 11.5
  • Cutting Required: No
  • Accommodates Factory Wheels: Yes
  • Welding Required: No

You can view and download the assembly/instruction booklet here.
