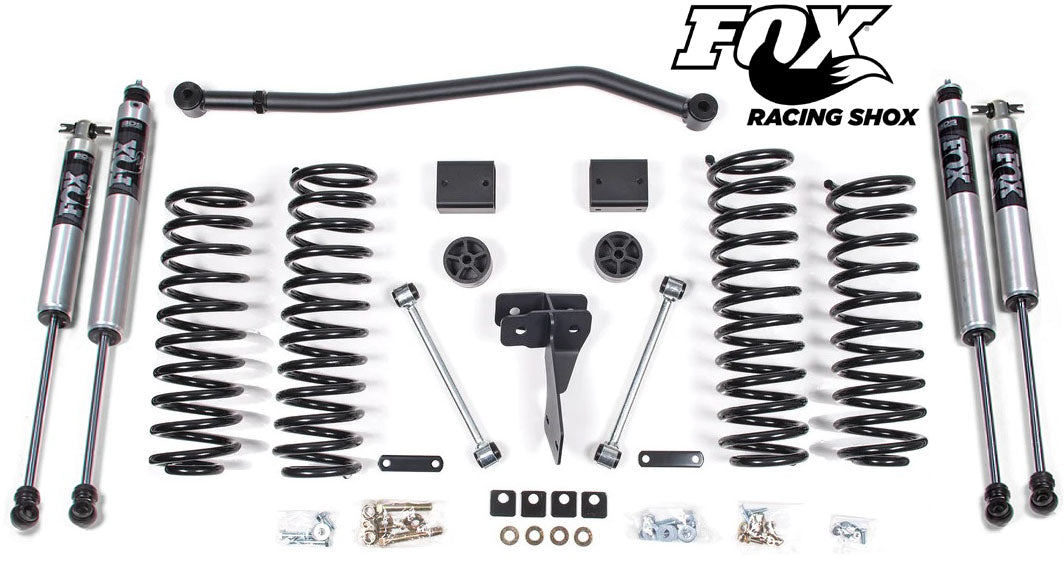

ZONE 2007-2011 JEEP WRANGLER JK 4-DOOR 4" COIL SPRING LIFT KIT,FOX SHOCKS

BRAND NEW ZONE OFFROAD 4" COIL SPRING LIFT KIT WITH FOX RACING SHOCKS (PART #ZONJ15F)

WANT THE PERFECT COMBINATION OF OFF ROAD PERFORMANCE AND ON ROAD HANDLING? THIS 4" SUSPENSION LIFT LETS YOU CLEAR 35" TIRES AND HAVE THE GROUND CLEARANCE AND WHEEL TRAVEL YOU WANT WHEN YOU VENTURE OFF ROAD. FITS 4 DOOR 4WD 2007 - 2011 JEEP WRANGLER (JK).

FOX 2.0 IFP SERIES SHOCKS ARE SPECIFICALLY VALVED FOR YOUR JK. CONSTRUCTED OF THE HIGHEST-QUALITY MATERIALS FOR ULTIMATE DURABILITY AND MANUFACTURED TO EXCEED STRICT QUALITY REQUIREMENTS, THESE SHOCKS ARE DESIGNED TO GIVE TROUBLE-FREE, CONSISTENT PERFORMANCE. FEATURING A CHROME-PLATED, HEAT-TREATED ALLOY STEEL SHAFT AND A MONO-TUBE RESERVOIR DESIGN THAT SEPARATES SHOCK OIL FROM HIGH-PRESSURE NITROGEN, AS WELL AS QUIET NITRILE RUBBER BUSHINGS TO ALLOW FOR INCREASED SUSPENSION ARTICULATION.

COMPATIBLE WITH:

• JEEP:
• 2007-2011 WRANGLER JK 4 DOOR 4WD

NOTE: WHEELS / TIRES: FACTORY WHEELS CANNOT BE REINSTALLED WITH LIFT KIT DUE TO REAR SWAY BAR INTERFERENCE. FOLLOW RECOMMENDED WHEEL/TIRE SPECIFICATIONS FOR PROPER CLEARANCE.

FEATURES:

• BRAKE LINE RELOCATION BRACKETS INCREASE WHEEL TRAVEL AND ALLOW USE OF FACTORY BRAKE LINES
• BUMP STOP EXTENSIONS PROPERLY LIMIT UP-TRAVEL, PROTECTING YOUR VEHICLE
• FULL LENGTH REPLACEMENT COIL SPRINGS ADD ADDITIONAL RIDE HEIGHT WHILE MAINTAINING RIDE QUALITY
• HEAVY-DUTY, ADJUSTABLE FRONT TRACK BAR RE-CENTERS FRONT AXLE AND ADDS STRENGTH
• HEAVY-DUTY, EXTENDED-LENGTH SWAY BAR LINKS IMPROVE OPERATING ANGLE FOR REDUCED BODY ROLL
• LOWER CAM WASHERS CORRECT AXLE CASTER FOR FRONT END ALIGNMENT
• REAR TRACK BAR BRACKET CORRECTLY POSITIONS REAR AXLE UNDER VEHICLE

SPECS:

• FRONT LIFT HEIGHT: 4"
• REAR LIFT HEIGHT: 4"
• FRONT LIFT METHOD: COIL SPRINGS
• REAR LIFT METHOD: COIL SPRINGS
• LIFT TYPE: LIFT KIT
• WHEEL SIZE: 16 X 8
• BACK SPACING: 4.5"
• MAX TIRE SIZE: 35 X 12.5
• WHEEL SIZE 2: 17 X 9
• BACK SPACING 2: 4.5"
• MAX TIRE SIZE 2: 35 X 12.5
• WHEEL SIZE 3: 18 X 9
• BACK SPACING 3: 4.5"
• MAX TIRE SIZE 3: 35 X 12.5
• IS ADJUSTABLE: NO
• CUTTING REQUIRED: NO
• ACCOMMODATES FACTORY WHEELS: NO
• WELDING REQUIRED: NO
