ZONE 2007-2011 JEEP WRANGLER JK 4WD 2-DOOR 4" COIL SPRING LIFT KIT,NITRO SHOCKS

ZONE 2007-2011 JEEP WRANGLER JK 4WD 2-DOOR 4" COIL SPRING LIFT KIT,NITRO SHOCKS

STU ZONJ14N

$626.75
$626.75
View full details

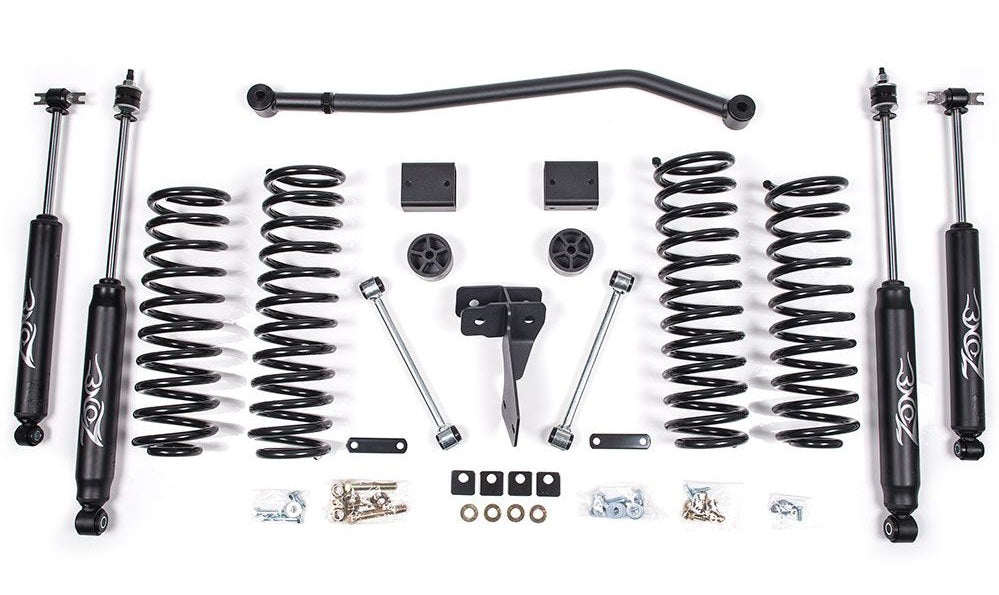

Brand New Zone Offroad 4" Coil Spring Lift Kit with Zone Nitro Shocks (Part #ZONJ14N).

Want the perfect combination of looks, ground clearance and wheel travel? This 4" Suspension Lift lets you clear 35" tires and the confidence you want when you venture off-road.

Notes:

  • 2012-18 models using the stock front driveshaft require exhaust extension kit J5305.
  • Wheels / Tires: Factory wheels cannot be reinstalled with lift kit due to rear sway bar interference. Follow recommended wheel/tire specifications for proper clearance.

Fits:

  • Jeep:
    • 2007-2011 Jeep Wrangler JK 4WD 2-Door

Features:

  • Brake line relocation brackets increase wheel travel and allow use of factory brake lines.
  • Bump stop extensions properly limit up-travel, protecting your vehicle.
  • Full length replacement coil springs add additional ride height while maintaining ride quality.
  • Heavy-duty, adjustable front track bar re-centers front axle and adds strength.
  • Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll.
  • Lower cam washers correct axle caster for front end alignment.
  • Rear track bar bracket correctly positions rear axle under vehicle.

Nitro Series Shocks Features:

  • Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance
  • Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft
  • Bushings and sleeves included for easy, direct replacement installation

Specs:

  • Front Lift Height: 4"
  • Rear Lift Height: 4"
  • Front Lift Method: Coil Springs
  • Rear Lift Method: Coil Springs
  • Lift Type: Lift Kit
  • Wheel Size: 16 x 8
  • Back Spacing: 4.5"
  • Max Tire Size: 35 x 12.5
  • Wheel Size 2: 17 x 9
  • Back Spacing 2: 4.5"
  • Max Tire Size 2: 35 x 12.5
  • Wheel Size 3: 18 x 9
  • Back Spacing 3: 4.5"
  • Max Tire Size 3: 35 x 12.5
  • Cutting Required: No
  • Accommodates Factory Wheels: No
  • Welding Required: No

You can view and download the assembly/instruction booklet here.
