ZONE 2007-2011 JEEP WRANGLER JK 4WD 2-DOOR 4" COIL SPRING LIFT KIT,FOX SHOCKS

ZONE 2007-2011 JEEP WRANGLER JK 4WD 2-DOOR 4" COIL SPRING LIFT KIT,FOX SHOCKS

STU ZONJ14F

$886.75
$886.75
View full details

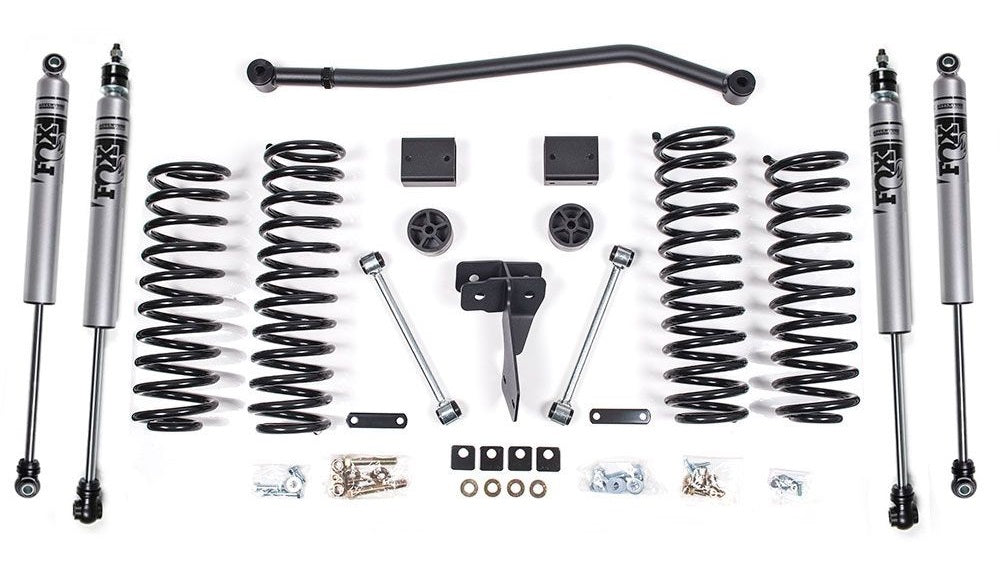

Brand New Zone Offroad 4" Coil Spring Lift Kit with FOX 2.0 Adventure Shocks (Part #ZONJ14F).

Want the perfect combination of looks, ground clearance and wheel travel? This 4" Suspension Lift lets you clear 35" tires and the confidence you want when you venture off-road.

Notes:

  • 2012-18 models using the stock front driveshaft require exhaust extension kit J5305.
  • Wheels / Tires: Factory wheels cannot be reinstalled with lift kit due to rear sway bar interference. Follow recommended wheel/tire specifications for proper clearance.

Fits:

  • Jeep:
    • 2007-2011 Jeep Wrangler JK 4WD 2-Door

Features:

  • Brake line relocation brackets increase wheel travel and allow use of factory brake lines.
  • Bump stop extensions properly limit up-travel, protecting your vehicle.
  • Full length replacement coil springs add additional ride height while maintaining ride quality.
  • Heavy-duty, adjustable front track bar re-centers front axle and adds strength.
  • Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll.
  • Lower cam washers correct axle caster for front end alignment.
  • Rear track bar bracket correctly positions rear axle under vehicle.

Fox 2.0 Adventure Series Shocks Features:

  • Body Plating: Thick silver powder coat
  • Body: 2.0 Smooth bore and honed seamless alloy bodies.
  • Bushings: Quiet nitrile rubber allows for increased suspension articulation
  • Internal Reservoir: Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
  • Mounting: Direct replacement for stock and aftermarket lifts kits
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel

Specs:

  • Front Lift Height: 4"
  • Rear Lift Height: 4"
  • Front Lift Method: Coil Springs
  • Rear Lift Method: Coil Springs
  • Lift Type: Lift Kit
  • Wheel Size: 16 x 8
  • Back Spacing: 4.5"
  • Max Tire Size: 35 x 12.5
  • Wheel Size 2: 17 x 9
  • Back Spacing 2: 4.5"
  • Max Tire Size 2: 35 x 12.5
  • Wheel Size 3: 18 x 9
  • Back Spacing 3: 4.5"
  • Max Tire Size 3: 35 x 12.5
  • Cutting Required: No
  • Accommodates Factory Wheels: No
  • Welding Required: No

You can view and download the assembly/instruction booklet here.
