ZONE 2009-2013 FORD F-150 4WD 6" SUSPENSION LIFT KIT,4" BLOCK,FOX SHOCKS

ZONE 2009-2013 FORD F-150 4WD 6" SUSPENSION LIFT KIT,4" BLOCK,FOX SHOCKS

STU ZONF75F

$1,733.60
$1,733.60
View full details

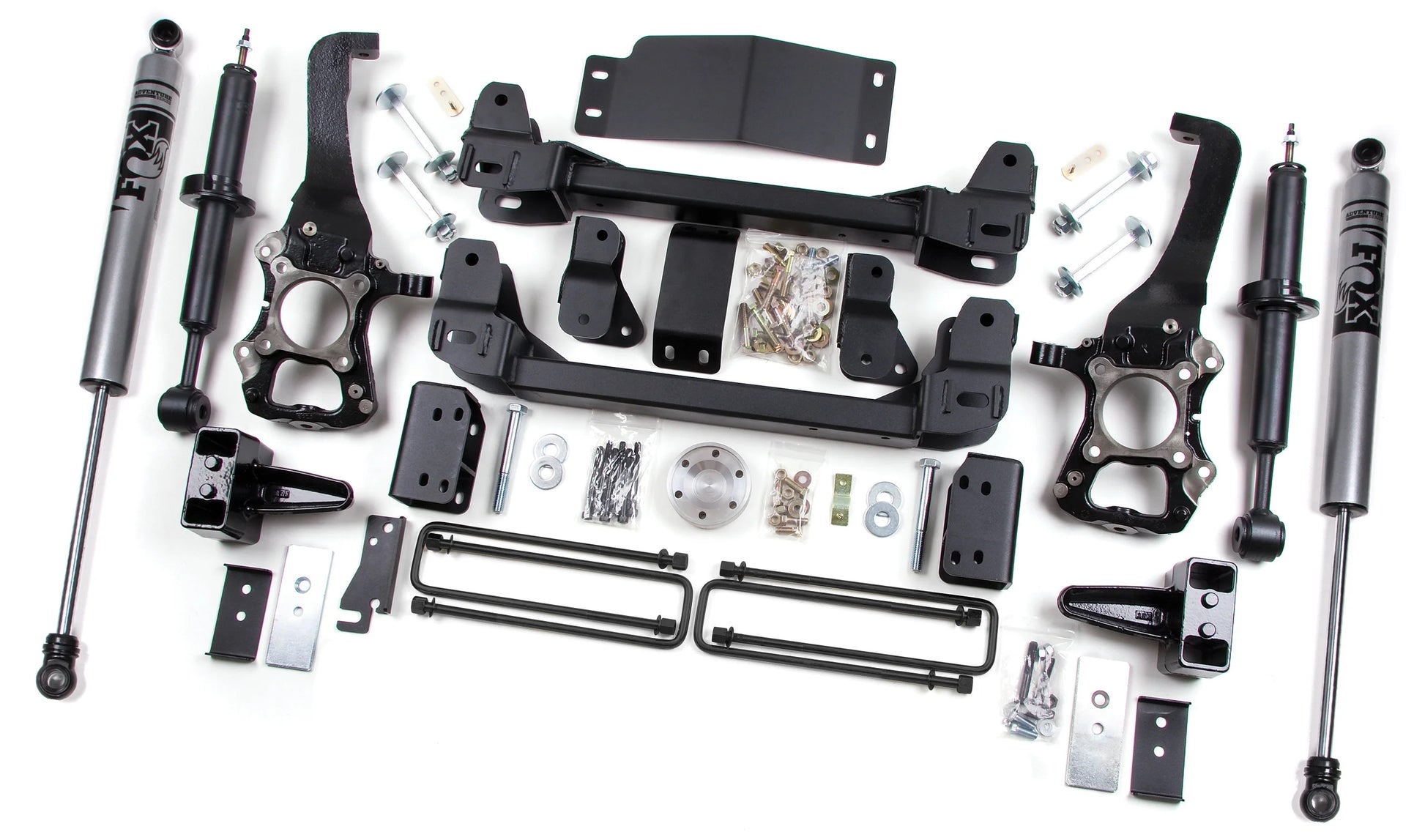

Brand New Zone Offroad 6" Lift Kit with Crossmembers, Strut Spacers, 4 Inch Blocks, and Fox Shocks (Part #ZONF75F).

Take your F150 to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear a block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Fits:

  • Ford:
    • 2009-2013 F-150 4WD

Notes:

  • Although rare, some models with 1-piece rear driveshaft may require rear driveshaft spacer kit to ensure sufficient spline engagement.
  • Will not fit Raptor models.
  • Power steps? If your vehicle is equipped with factory power steps, it will require E-Brake Relocation Bracket. Add in configuration / checkout.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.

  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 18 x 9 and 5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, 37 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • Heavy-duty differential skid slate improves off-road protection.
  • High-strength, 1/4" steel construction crossmembers correct lower control arm geometry.
  • High-pressure, extended length, replacement front struts improve performance on and off-road.
  • High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
  • Lift system does not change the front track width of the vehicle.

FOX 2.0 Adventure Series:

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Crossmember & Strut Spacer
  • Front Lift Height: 6"
  • Rear Lift Method: Block
  • Rear Lift Height: 4"

You can view and download the assembly/instruction booklet here.
