ZONE 2015-2020 FORD F-150 4WD 3" ADVENTURE LIFT KIT WITH FOX SHOCKS

ZONE 2015-2020 FORD F-150 4WD 3" ADVENTURE LIFT KIT WITH FOX SHOCKS

STU ZONF66F

$1,032.85
$1,032.85
View full details

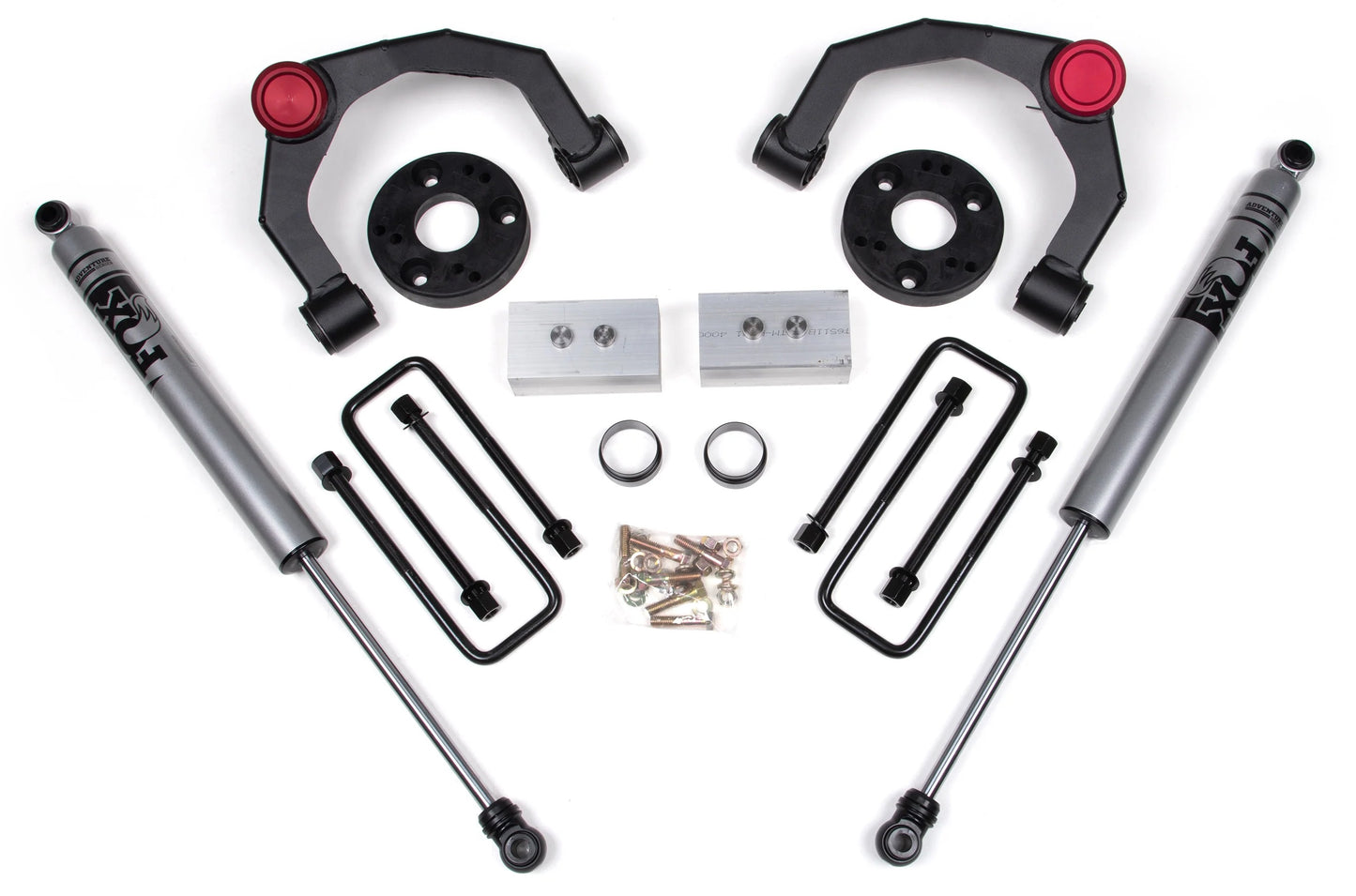

Brand New Zone Offroad 3" Lift Kit with Strut Spacers, 1 Inch Blocks, and Fox Shocks (Part #ZONF66F).

Looking to get more out of your 2015-2020 Ford F150 without going all in on a full 4" or 6" suspension system? These 3" Adventure Series lift kits are designed to be more than a leveling kit and work with the factory suspension mounting points to improve ground clearance, allow room for larger tires and improve your truck's capability.

Fits:

  • Ford:
    • 2015-2020 F-150 4WD

Notes:

  • Preload ring may not work with aftermarket struts, designed to be used with OEM struts Strut compressor required for installation.
  • Will fit EcoBoost models.
  • Will fit on diesel models, but may result in a lower ride height.
  • Will not fit Raptor models
  • Maximum 5.5" BS wheels recommended (due to wheel/tire clearance to the UCAs)
  • This kit will not work on trucks with stock ride height over 22in. (FX4, Snow Prep, and other off-road packages may have a stock ride height over 22in)
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 18 x 9 and 5.5 in. Backspace, 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Features:

  • High strength UCAs are boxed and fully welded, specially designed with an indexed ball joint cup to correct ball joint operating angle for more suspension travel.
  • Utilizes a combination top-mount and preload strut spacers to correctly lift vehicle, retain factory ride quality without over extending suspension/drivelines at full suspension droop.
  • Maintains ride and handling characteristics with clearance for larger tires 2" replacement rear lift blocks and heavy duty u-bolts to level the stance.

FOX 2.0 Adventure Series:

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Strut Spacer
  • Front Lift Height: 3"
  • Rear Lift Method: Block
  • Rear Lift Height: 1"

You can view and download the assembly/instruction booklet here.
