ZONE 2020-2022 F250,F350 4WD GAS,7" RADIUS ARM LIFT KIT WITH NITRO SHOCKS

ZONE 2020-2022 F250,F350 4WD GAS,7" RADIUS ARM LIFT KIT WITH NITRO SHOCKS

SKU:STU ZONF65N

Regular price $1,398.45
Regular price Sale price $1,398.45
View full details

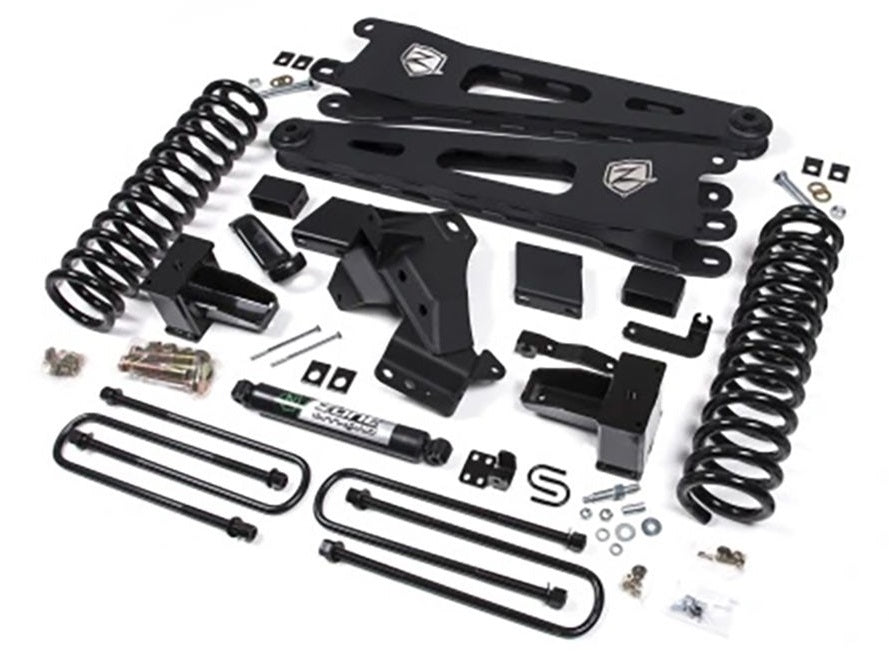

Brand New Zone Offroad 7" Radius Arm Lift Kit with Nitro Shocks (Part #ZONF65N).

Zone Offroad now offers 7" radius arm lift kits for the 2020-2022 Ford F250/F350 Super Duty 4WD gas trucks. These new 7" lift kits are designed to be complete with everything needed to properly lift your new Super Duty to allow clearance for up to 37" tires. As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.

Fits:

  • Ford:
    • 2020-2022 F-250 Super Duty 4WD Gas
    • 2020-2022 F-350 Super Duty 4WD Gas

Features:

  • Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance
  • Forged pitman arm to correct steering angles
  • Heavy duty fabricated track bar relocation bracket to re-center front axle
  • Full length Gas specific coil springs for a smooth ride

Specs:

  • Front Lift Height: 7"
  • Rear Lift Height: 5"
  • Front Lift Method: Coil Springs
  • Rear Lift Method: Block Kit
  • Lift Type: Lift Kit
  • Wheel Size: 20 x 9
  • Back Spacing: 4.5"
  • Max Tire Size: 37 x 12.5
  • Finish: Powdercoat
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: No

Notes:

  • GAS MODELS ONLY
  • Front exhaust modification may be required to clear front drive shaft.
  • 37x12.50 tires may require minor trimming. Factory wheels fit when paired with factory / original equipment tire size.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  • Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift.
You can view and download the assembly/instruction booklet here.
