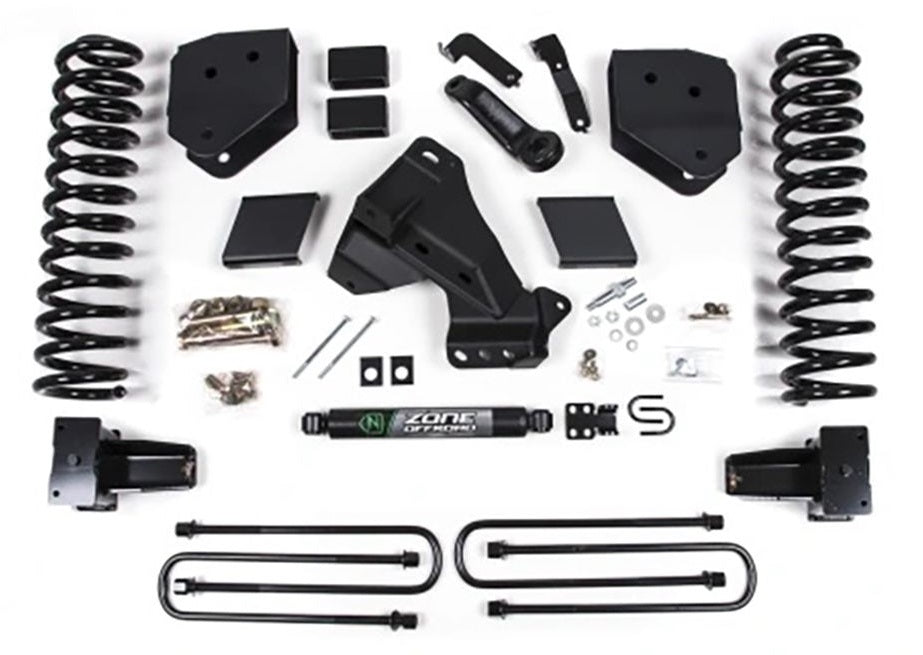

ZONE 2020-2022 F250,F350 4WD GAS,7" LIFT KIT WITH FOX SHOCKS

ZONE 2020-2022 F250,F350 4WD GAS,7" LIFT KIT WITH FOX SHOCKS

STU ZONF63F

$1,474.55
$1,474.55
View full details

Brand New Zone Offroad 7" Suspension Lift Kit with Fox Shocks (Part #ZONF63F).

Step up your game with these 7" standard lift kits from Zone Offroad. These kits use full length coil springs, high strength radius arm relocation brackets, steering and sway bar correction along with rear lift to level the stance and optional shocks. Kits include a 5 year/60,000 mile drivetrain warranty.

Fox Shocks:

  • 2" Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Fits:

  • Ford:
    • 2020-2022 F-250 Super Duty 4WD Gas
    • 2020-2022 F-350 Super Duty 4WD Gas

Features:

  • Corrects suspension geometry with high strength radius arm drop brackets
  • Forged pitman arm to correct steering angles
  • Heavy duty fabricated track bar relocation bracket to re-center front axle
  • Full length Diesel/ Gas specific coil springs for a smooth ride
  • Fox Shock Features:
  • Body Plating: Thick silver powder coat.
  • Body: 2.0 Smooth bore and honed seamless alloy bodies.
  • Bushings: Quiet nitrile rubber allows for increased suspension articulation.
  • Internal Reservoir: Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen.
  • Mounting: Direct replacement for stock and aftermarket lifts kits.
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures.
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel.

Specs:

  • Front Lift Height: 7"
  • Rear Lift Height: 5"
  • Front Lift Method: Coil Springs
  • Rear Lift Method: Block Kit
  • Lift Type: Suspension
  • Wheel Size: 20 x 9
  • Back Spacing: 4.5"
  • Max Tire Size: 37 x 12.5
  • Finish: Powdercoat
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: No

Notes:

  • GAS MODELS ONLY
  • Front exhaust modification may be required to clear front drive shaft
  • 37x12.50 tires may require minor trimming. Factory wheels fit when paired with factory / original equipment tire size. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  • Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift.
You can view and download the assembly/instruction booklet here.
