ZONE 2020-2022 F250,F350 4WD DIESEL,7" LIFT KIT WITH FOX SHOCKS

ZONE 2020-2022 F250,F350 4WD DIESEL,7" LIFT KIT WITH FOX SHOCKS

STU ZONF62F

$1,474.55
$1,474.55
View full details

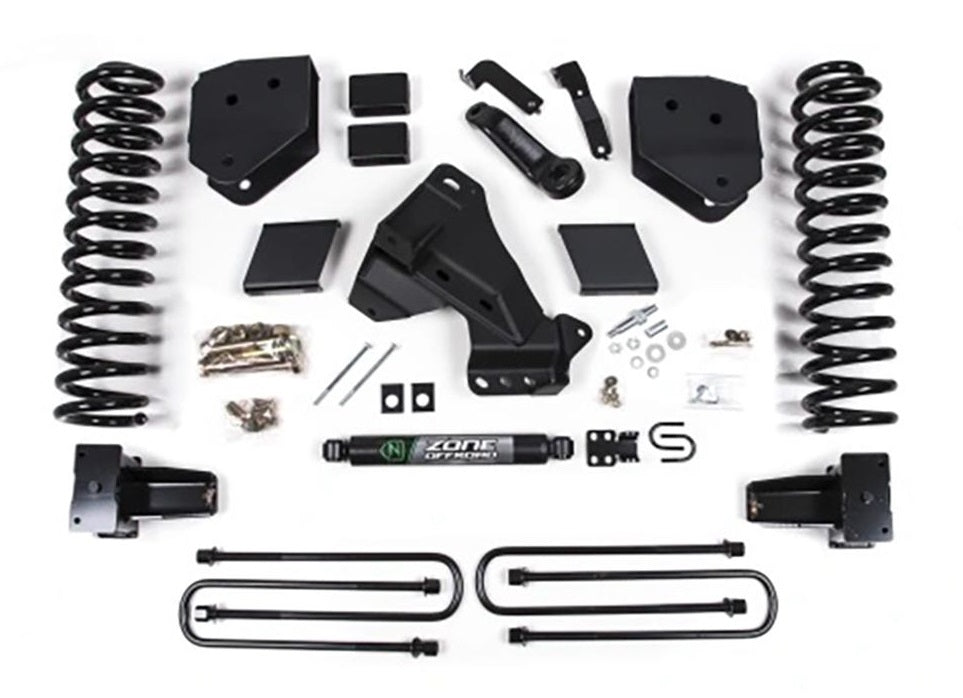

Brand New Zone Offroad 7" Standard Lift Kit with FOX Shocks (Part #ZONF62F).

Step up your game with these 7" standard lift kits from Zone Offroad. These kits use full length coil springs, high strength radius arm relocation brackets, steering and sway bar correction along with rear lift to level the stance and optional shocks. Kits include a 5year/60,000mile drivetrain warranty.

Built specifically to compliment your Zone lift kit, FOX's proven damping technology provides a comfortable on-road ride and predictable off-road handling in a variety of conditions. Their monotube design uses an internal floating piston (IFP) to separate the shock oil from the high-pressure, nitrogen-charged gas chamber, preventing oil aeration for fade-free performance in rough terrain. Get more out of your truck or Jeep with FOX Adventure Series 2.0 shocks.

Fits:

  • Ford:
    • 2020-2022 F-250 Super Duty 4WD Diesel
    • 2020-2022 F-350 Super Duty 4WD Diesel

Features:

  • Corrects suspension geometry with high strength radius arm drop brackets
  • Forged pitman arm to correct steering angles
  • Heavy duty fabricated track bar relocation bracket to re-center front axle
  • Full length Diesel/ Gas specific coil springs for a smooth ride
  • Fox Shock Features:
  • Body Plating: Thick silver powder coat.
  • Body: 2.0 Smooth bore and honed seamless alloy bodies.
  • Bushings: Quiet nitrile rubber allows for increased suspension articulation.
  • Internal Reservoir: Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen.
  • Mounting: Direct replacement for stock and aftermarket lifts kits.
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures.
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel.

Specs:

  • Front Lift Height: 7"
  • Rear Lift Height: 5"
  • Front Lift Method: Coil Springs
  • Rear Lift Method: Block Kit
  • Lift Type: Lift Kit
  • Wheel Size: 20 x 9
  • Back Spacing: 4.5"
  • Max Tire Size: 37 x 12.5
  • Finish: Powdercoat
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: No

Notes:

  • 37x12.50 tires may require minor trimming. Factory wheels fit when paired with factory / original equipment tire size. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  • Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models
  • Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift.
You can view and download the assembly/instruction booklet here.
