ZONE 2020-2022 F250,F350 4WD DIESEL,5" RADIUS ARM LIFT KIT WITH FOX SHOCKS

ZONE 2020-2022 F250,F350 4WD DIESEL,5" RADIUS ARM LIFT KIT WITH FOX SHOCKS

STU ZONF60F

$1,566.45
$1,566.45
View full details

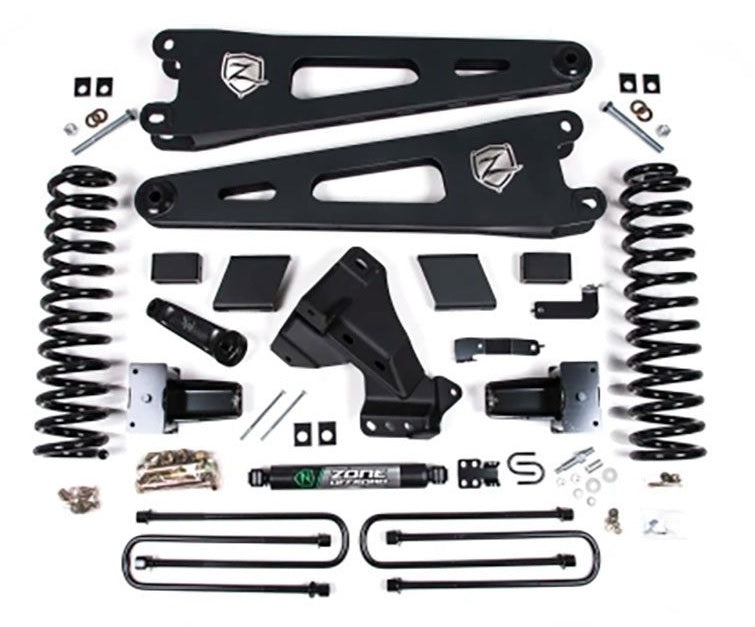

Brand New Zone Offroad 5" Radius Arm Lift Kit with FOX Shocks (Part #ZONF60F).

Zone Offroad now offers a suspension lifts for the 2020-2022 Ford F250/F350 Super Duty 4WD trucks. These new 5" lift kits are available for gas and diesel applications, as well as offered in standard (radisu arm drop bracket) as well as replacement HD radius arm configurations to allow clearance for up to 37" tires. As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.

Built specifically to compliment your Zone lift kit, FOX's proven damping technology provides a comfortable on-road ride and predictable off-road handling in a variety of conditions. Their monotube design uses an internal floating piston (IFP) to separate the shock oil from the high-pressure, nitrogen-charged gas chamber, preventing oil aeration for fade-free performance in rough terrain. Get more out of your truck or Jeep with FOX Adventure Series 2.0 shocks.

Fits:

  • Ford:
    • 2020-2022 F-250 Super Duty 4WD Diesel
    • 2020-2022 F-350 Super Duty 4WD Diesel

Features:

  • Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance
  • Forged pitman arm to correct steering angles
  • Heavy duty fabricated track bar relocation bracket to re-center front axle
  • Full length Diesel specific coil springs for a smooth ride
  • Fox Shock Features:
  • Body Plating: Thick silver powder coat.
  • Body: 2.0 Smooth bore and honed seamless alloy bodies.
  • Bushings: Quiet nitrile rubber allows for increased suspension articulation.
  • Internal Reservoir: Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen.
  • Mounting: Direct replacement for stock and aftermarket lifts kits.
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures.
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel.

Specs:

  • Front Lift Height: 5"
  • Rear Lift Height: 3"
  • Front Lift Method: Coil Springs
  • Rear Lift Method: Cast Blocks
  • Lift Type: Lift Kit
  • Wheel Size: 20 x 9
  • Back Spacing: 4.5"
  • Max Tire Size: 37 x 12.5
  • Finish: Powdercoat
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: No

Notes:

  • 37x12.50 tires may require minor trimming. Factory wheels fit when paired with factory / original equipment tire size. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  • Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models
  • Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift.

You can view and download the assembly/instruction booklet here.
