ZONE 2005-2007 F250/350 DIESEL 4WD 4" LIFT KIT WITH FOX SHOCKS

ZONE 2005-2007 F250/350 DIESEL 4WD 4" LIFT KIT WITH FOX SHOCKS

STU ZONF5F

$1,115.60
$1,115.60
View full details

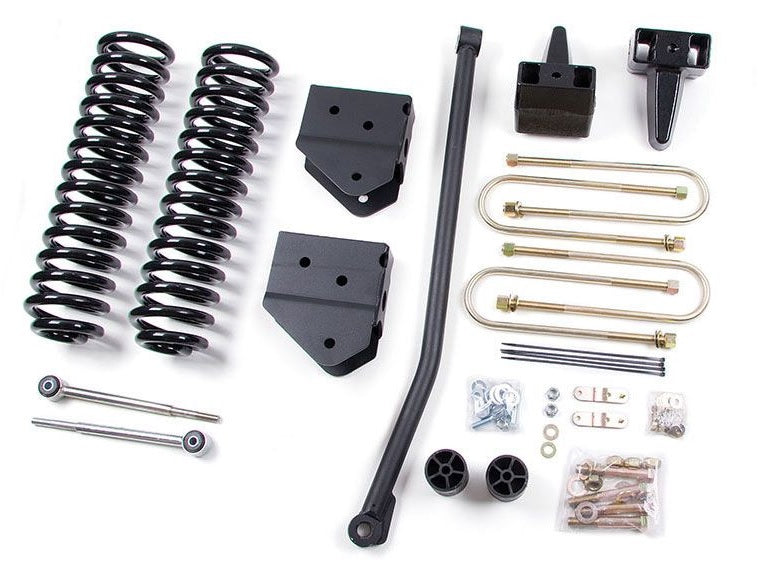

Brand New Zone Offroad 4" Standard Lift Kit with FOX Shocks for a 2005-2007 F-250 & F-350 Super Duty 4WD Diesel (Part #ZONF5F).

Take your Super Duty to new heights with this 4" lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arm relocation brackets to HD track bar and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

Built specifically to compliment your Zone lift kit, FOX's proven damping technology provides a comfortable on-road ride and predictable off-road handling in a variety of conditions. Their monotube design uses an internal floating piston (IFP) to separate the shock oil from the high-pressure, nitrogen-charged gas chamber, preventing oil aeration for fade-free performance in rough terrain. Get more out of your truck or Jeep with FOX Adventure Series 2.0 shocks.

Fits:

  • Ford:
    • 2005-2007 F-250 Super Duty 4WD Diesel
    • 2005-2007 F-350 Super Duty 4WD Diesel

Features:

  • Heavy duty fabricated steel radius arms that correct caster alignment while maximizing ground clearance.
  • Forged pitman arm to correct steering angles.
  • Heavy duty fabricated track
  • Bar relocation bracket to re-center the front axle.
  • Full length specific coil springs which are gas or diesel specific.
  • Fox Shock Features:
  • Body Plating: Thick silver powder coat.
  • Body: 2.0 Smooth bore and honed seamless alloy bodies.
  • Bushings: Quiet nitrile rubber allows for increased suspension articulation.
  • Internal Reservoir: Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen.
  • Mounting: Direct replacement for stock and aftermarket lifts kits.
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures.
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel.

Specs:

  • Front Lift Height: 4"
  • Rear Lift Height: 5"
  • Front Lift Method: Coil Springs & Bracket Kit
  • Rear Lift Method: Cast Blocks
  • Lift Type: Lift Kit
  • Wheel Size: 17 x 9
  • Back Spacing: 4.5"
  • Max Tire Size: 35 x 12.5
  • Wheel Size 2: 18 x 9
  • Back Spacing 2: 4.5"
  • Max Tire Size 2: 35 x 12.5
  • Wheel Size 3: 20 x 9
  • Back Spacing 3: 4.5"
  • Max Tire Size 3: 35 x 12.5
  • Finish: Powdercoat
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: No

Notes:

  • Check Your Rear Springs: If your vehicle is equipped with both a stock 4" rear block and a top mounted overload/helper spring, select the longer 18.5" Rear U-Bolts.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.

You can view and download the assembly/instruction booklet here.
