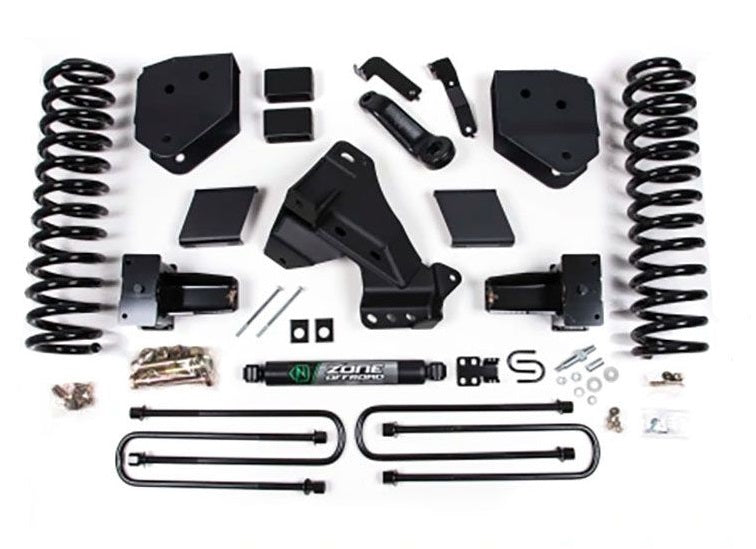

ZONE 2020-2022 F250/F350 4WD GAS,5" SUSPENSION LIFT KIT WITH FOX SHOCKS

ZONE 2020-2022 F250/F350 4WD GAS,5" SUSPENSION LIFT KIT WITH FOX SHOCKS

STU ZONF59F

$1,286.55
$1,286.55
View full details

 Brand New Zone Offroad 5" Suspension Lift Kit with Fox Shocks (Part #ZONF59F).

Zone Offroad now offers suspension lifts for the 2020-2022 Ford F250/F350 Super Duty 4WD trucks. These new 5" lift kits are available for gas and diesel applications, as well as offered in standard (radius arm drop bracket) as well as replacement HD radius arm configurations to allow clearance for up to 37" tires. As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.

Fox Shocks:

  • 2" Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Fits:

  • Ford:
    • 2020-2022 F-250 Super Duty 4WD Gas
    • 2020-2022 F-350 Super Duty 4WD Gas

Features:

  • Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance
  • Forged pitman arm to correct steering angles
  • Heavy duty fabricated track bar relocation bracket to re-center front axle
  • Full length Gas specific coil springs for a smooth ride
  • Fox Shock Features:
  • Body Plating: Thick silver powder coat.
  • Body: 2.0 Smooth bore and honed seamless alloy bodies.
  • Bushings: Quiet nitrile rubber allows for increased suspension articulation.
  • Internal Reservoir: Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen.
  • Mounting: Direct replacement for stock and aftermarket lifts kits.
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures.
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel.

Specs:

  • Front Lift Height: 5"
  • Rear Lift Height: 3"
  • Front Lift Method: Coil Springs
  • Rear Lift Method: Cast Blocks
  • Lift Type: Lift Kit
  • Wheel Size: 20 x 9
  • Back Spacing: 4.5"
  • Max Tire Size: 37 x 12.5
  • Finish: Powdercoat
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: No

Notes:

  • 37x12.50 tires may require minor trimming. Factory wheels fit when paired with factory / original equipment tire size. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  • Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift.
  • Front exhaust modification may be required to clear front drive shaft (Gas Models Only)
You can view and download the assembly/instruction booklet here.
