ZONE 2020-2022 F250/F350 4WD DIESEL,5" SUSPENSION LIFT KIT

ZONE 2020-2022 F250/F350 4WD DIESEL,5" SUSPENSION LIFT KIT

STU ZONF58

$846.75
$846.75
View full details

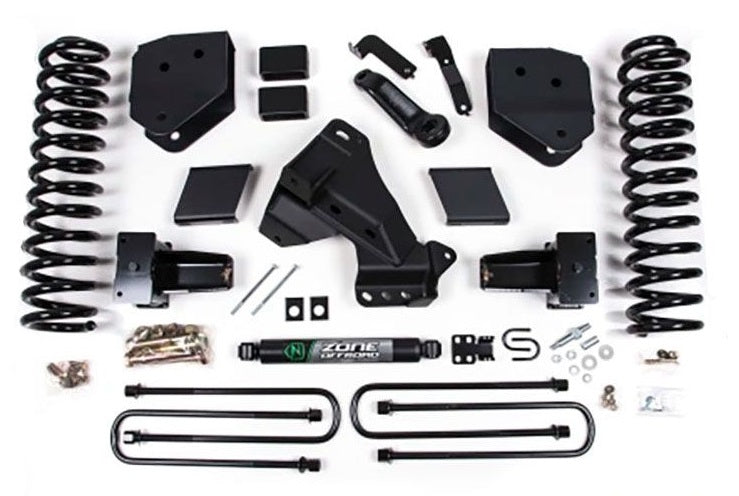

Brand New Zone Offroad 5" Suspension Lift Kit (Part #ZONF58).

Zone Offroad now offers a suspension lifts for the 2020-2022 Ford F250/F350 Super Duty 4WD trucks. These new 5" lift kits are available for gas and diesel applications, as well as offered in standard (radius arm drop bracket) as well as replacement HD radius arm configurations to allow clearance for up to 37" tires. As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.

Fits:

  • Ford:
    • 2020-2022 F-250 Super Duty 4WD Diesel
    • 2020-2022 F-350 Super Duty 4WD Diesel

Features:

  • Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance
  • Forged pitman arm to correct steering angles
  • Heavy duty fabricated track bar relocation bracket to re-center front axle
  • Full length Diesel specific coil springs for a smooth ride

Specs:

  • Front Lift Height: 5"
  • Rear Lift Height: 3"
  • Front Lift Method: Coil Springs
  • Rear Lift Method: Cast Blocks
  • Lift Type: Lift Kit
  • Wheel Size: 20 x 9
  • Back Spacing: 4.5"
  • Max Tire Size: 37 x 12.5
  • Finish: Powdercoat
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: No

Notes:

  • 37x12.50 tires may require minor trimming. Factory wheels fit when paired with factory / original equipment tire size. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  • Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models
  • Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends to have this performed prior to installing the lift.

You can view and download the assembly/instruction booklet here.
