ZONE 2017-2019 F250,F350 4WD DIESEL 2-LEAF,4" LIFT KIT

ZONE 2017-2019 F250,F350 4WD DIESEL 2-LEAF,4" LIFT KIT

STU ZONF48

$847.75
$847.75
View full details

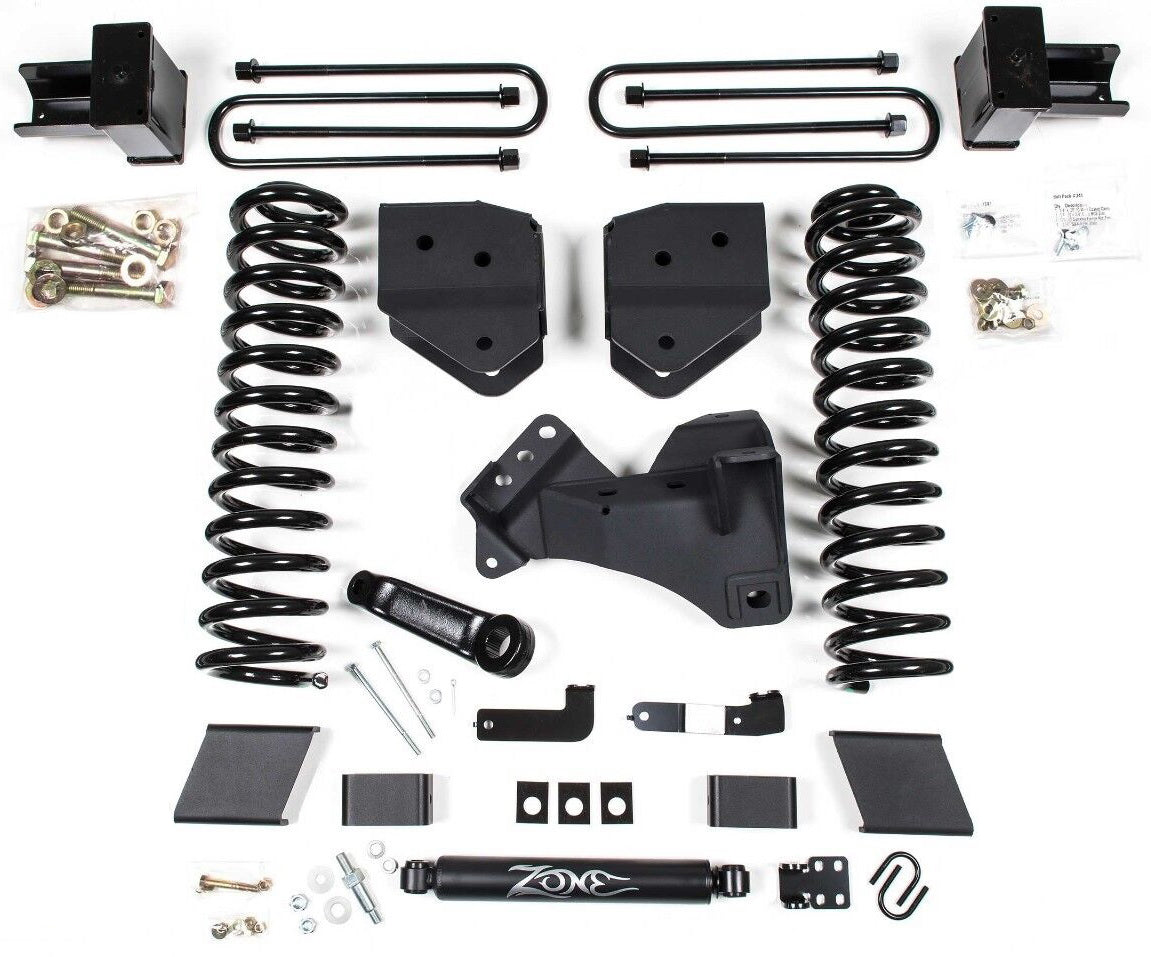

Brand New Zone Offroad 4" Lift Kit (Part #ZONF48).

Take your Super Duty to new heights with this 4" lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arm relocation brackets to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for 37" tires.

Fits:

  • Ford:
    • 2017-2019 F-250 Super Duty 4WD Diesel with 2-Leaf Main Spring Pack
    • 2017-2019 F-350 Super Duty 4WD Diesel with 2-Leaf Main Spring Pack

Features:

  • High strength front coil springs improve ride quality
  • Radius arm drop brackets to correct caster and maintain suspension geometry
  • Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
  • Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles
  • Replacement 5" rear lift blocks and u-bolts to lift and level the stance

Specs:

  • Front Lift Height: 4"
  • Rear Lift Height: 3"
  • Material: 1/4" Steel
  • Front Lift Method: Coil Springs
  • Rear Lift Method: Cast Blocks
  • Lift Type: Lift Kit
  • Wheel Size: 17 x 9
  • Back Spacing: 5"
  • Max Tire Size: 37 x 12.5
  • Wheel Size 2: 18 x 9
  • Back Spacing 2: 5"
  • Max Tire Size 2: 37 x 12.5
  • Wheel Size 3: 20 x 9
  • Back Spacing 3: 5"
  • Max Tire Size 3: 37 x 12.5
  • Finish: Powdercoat
  • Cutting Required: No
  • Accommodates Factory Wheels: Yes
  • Welding Required: No

Notes:

  • 37x12.50 tires may require minor trimming.
  • Determine if your truck is equipped with standard (2-leaf main) or heavy payload (3-leaf main w/overload) factory rear leaf spring packs. Standard 2-leaf main applications will require kit # F48, heavy payload 3-leaf main w/ overload applications will require kit # F50.
  • Factory wheels fit when paired with factory / original equipment tire size.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.

You can view and download the complete assembly instruction booklet here.
