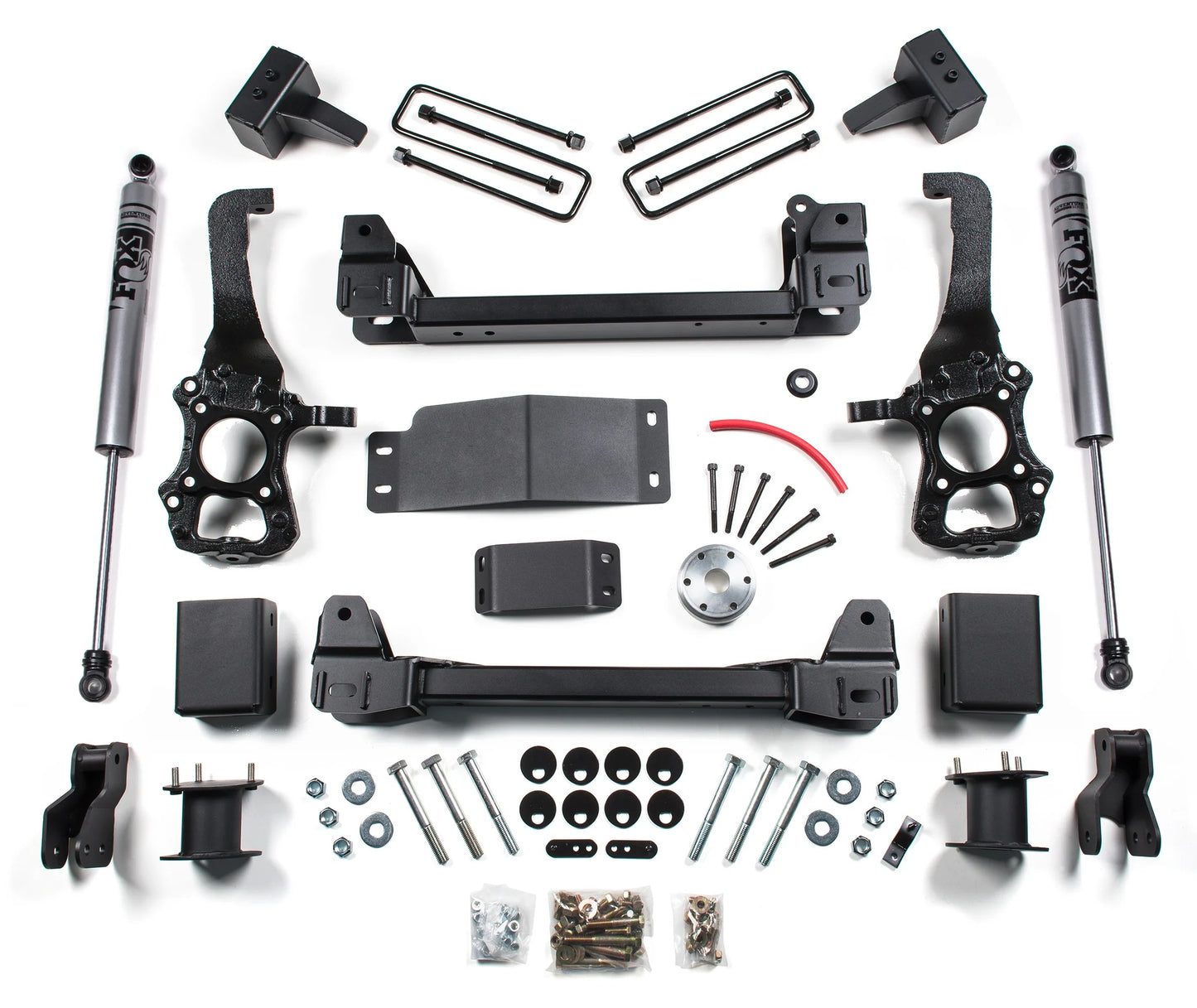

ZONE 2015-2020 FORD F-150 4WD 4" SUSPENSION LIFT KIT WITH FOX SHOCKS

ZONE 2015-2020 FORD F-150 4WD 4" SUSPENSION LIFT KIT WITH FOX SHOCKS

STU ZONF47F

$1,528.60
$1,528.60
View full details

Brand New Zone Offroad 4" Lift Kit with Crossmembers, Strut Spacers, 4 Inch Blocks, and Fox Shocks (Part #ZONF47F).

Take your F150 to new heights with this 4" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

Fits:

  • Ford:
    • 2015-2020 F-150 4WD

Notes:

  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  • 18" wheels should be test fit to ensure proper tie rod end clearance. Wheel profiles can vary between manufacturers.
  • Depending on wheel selection, minor trimming may be required to fit tire.
  • Stock 17"/18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60R20 tire.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 18 x 9 and 5.5 in. Backspace, 35 x 12.5 with 20 x 9 and 5.5 in. Backspace, 35 x 12.5 with 22 x 9 and 5.5 in. Backspace

Features:

  • High strength crossmembers to correct lower control arm positioning.
  • Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility.
  • Top mounted strut spacers to provide lift and install easily.
  • Differential skid plate for improved off-road protection.
  • Rear lift blocks and u-bolts to lift and level the stance.
  • Sway bar, brake line and bump stop relocation brackets to correct operating angles

FOX 2.0 Adventure Series:

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Crossmember & Strut Spacer
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 4"

You can view and download the assembly/instruction booklet here.
