ZONE 2011-2016 FORD F-250,F-350 4WD 2" SUSPENSION LIFT KIT WITH FOX SHOCKS

ZONE 2011-2016 FORD F-250,F-350 4WD 2" SUSPENSION LIFT KIT WITH FOX SHOCKS

STU ZONF45F

$706.75
$706.75
View full details

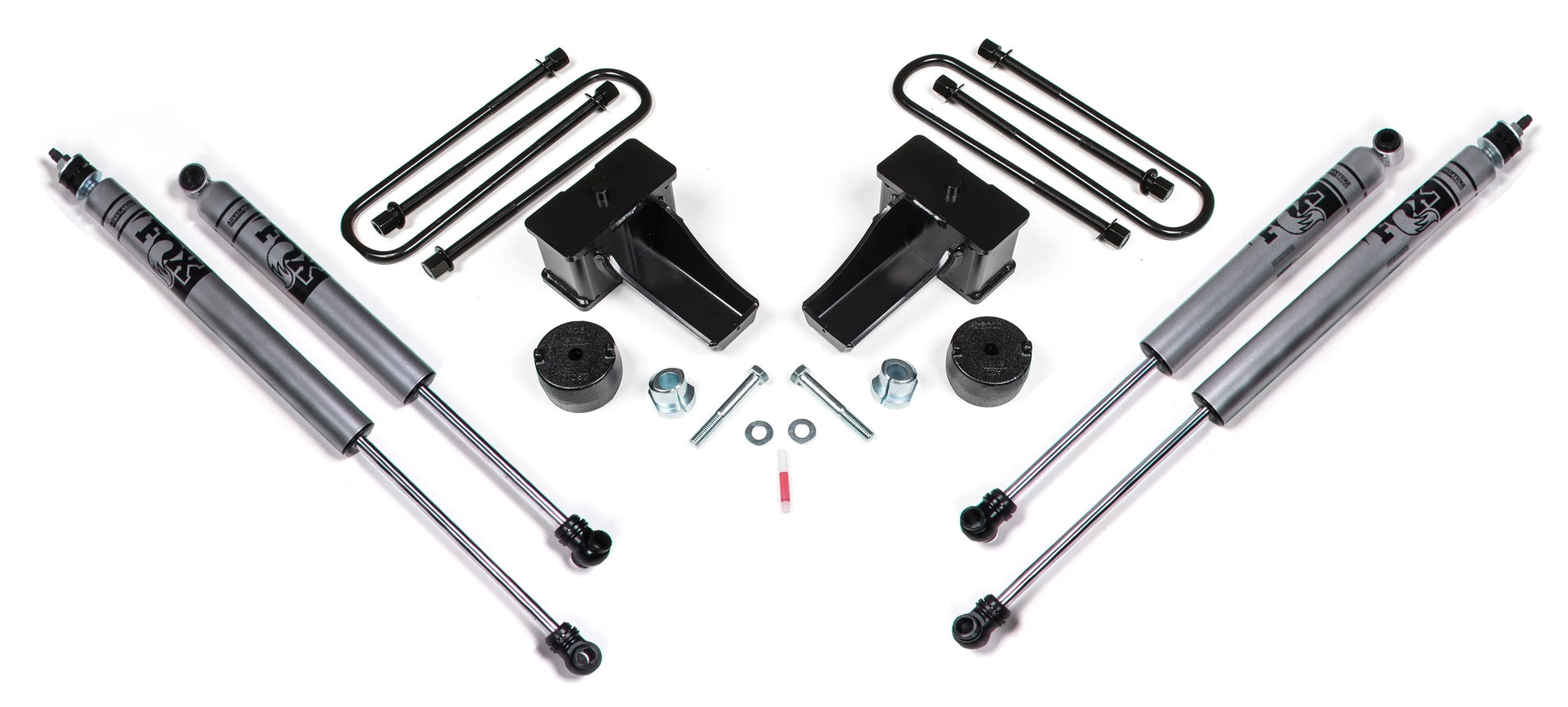

Brand New Zone Offroad 2" Lift Kit with Coil Spacer & FOX 2.0 Adventure Shocks (Part #ZONF45F).

The Super Duty comes from the factory with the front end raked down lower 1-2". This is a great option for truck with camper shells or tow regularly to eliminate the tail-low stance while allowing clearance for up to 35" tires.

Fits:

  • Ford:
    • 2011-2016 F-250 Super Duty 4WD
    • 2011-2016 F-350 Super Duty 4WD

Notes:

  • Will not work with rear factory top mounted overloads.

  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • Bolt-in lower front coil spacers raise the stance while retaining ride quality.
  • Upper ball joint cams allow you to dial in alignment specs for factory like handling.
  • Heavy-duty fabricated rear blocks are fully welded and integrate a bump stop wing for proper bump stop engagement.
  • High strength, black e-coated u-bolts to secure the new rear lift blocks.

FOX 2.0 Adventure Series:

  • 2-inch diameter steel body
  • Internal floating piston (IFP) monotube design
  • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil Spacer
  • Front Lift Height: 2
  • Rear Lift Method: Block
  • Rear Lift Height: 2"

You can view and download the assembly/instruction booklet here.
