ZONE 2014 F-150 4WD 6" SUSPENSION LIFT KIT,5" REAR BLOCK,NITRO SHOCKS

ZONE 2014 F-150 4WD 6" SUSPENSION LIFT KIT,5" REAR BLOCK,NITRO SHOCKS

STU ZONF40N

$1,347.65
$1,347.65
View full details

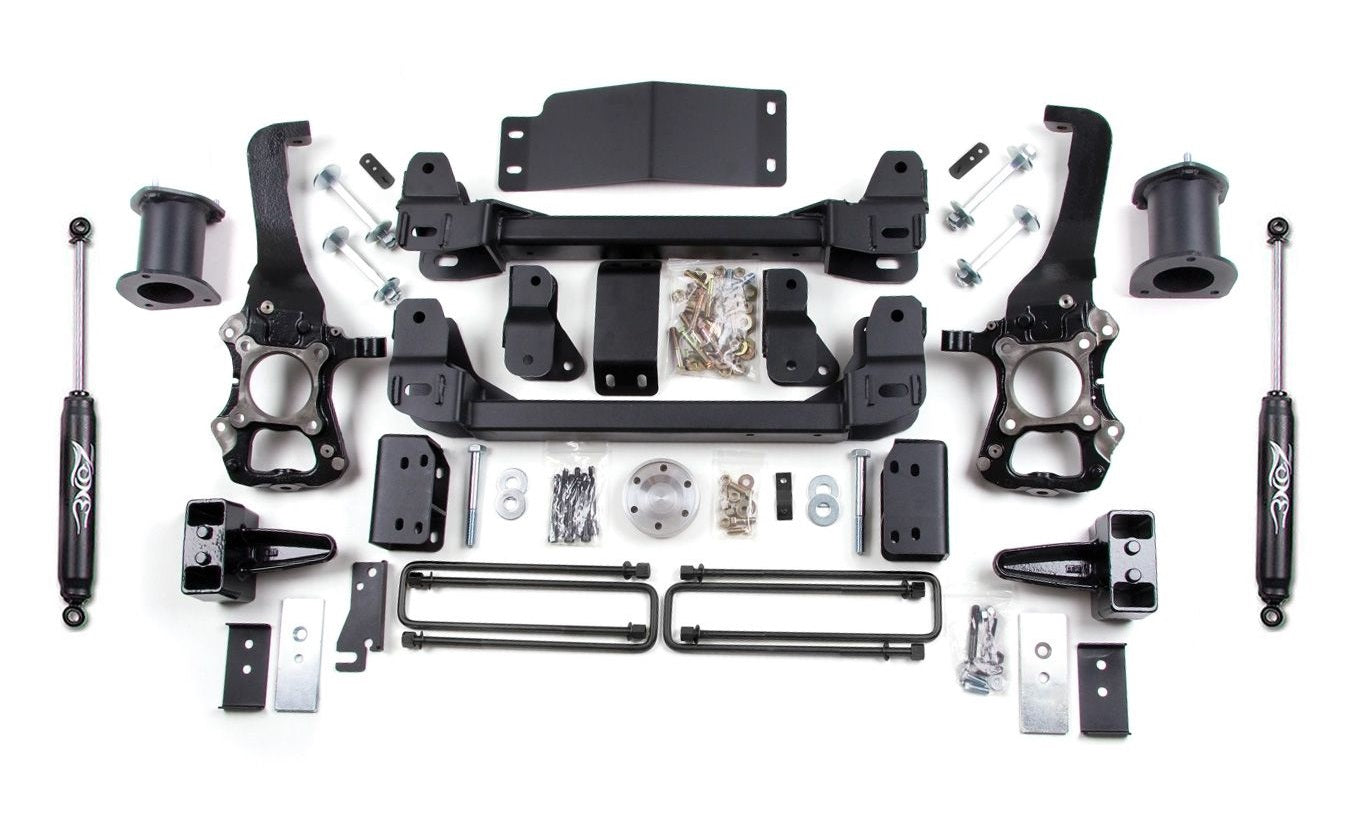

Brand New Zone Offroad 6" Suspension Lift Kit with Zone Nitro Shocks (Part #ZONF40N).

Take your F150 to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear a block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.

Notes:

  • Lift Block Selection: This kit is offered with either 4" or 5" rear lift block kit and in either case it will replace the factory rear blocks. The 5" block will net a level to slightly tail high stance, the 4" block will net a level to slightly tail low stance. Choose rear lift height based on your ride height preference.
  • Power steps? If your vehicle is equipped with factory power steps, it will require E-Brake Relocation Bracket.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
  • Wheels / Tires: May require bumper or fender trimming depending on wheel and tire choice. See installation instructions for more information.

Fits:

  • Ford:
    • 2014 F-150 4WD with 5" Rear Blocks

Features:

  • Heavy-duty differential skid slate improves off-road protection.
  • High-strength, 1/4" steel construction crossmembers correct lower control arm geometry.
  • High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
  • Lift system does not change the front track width of the vehicle.

Nitro Series Shocks Features:

  • Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance
  • Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft
  • Bushings and sleeves included for easy, direct replacement installation

Specs:

  • Front Lift Height: 6"
  • Rear Lift Height: 5"
  • Front Lift Method: Knuckle & Strut Spacer
  • Rear Lift Method: Cast Blocks
  • Lift Type: Lift Kit
  • Wheel Size: 18 x 9
  • Back Spacing: 5"
  • Max Tire Size: 35 x 12.5
  • Wheel Size 2: 20 x 9
  • Back Spacing 2: 5.5"
  • Max Tire Size 2: 37 x 12.5
  • Wheel Size 3: 22 x 9
  • Back Spacing 3: 5.5"
  • Max Tire Size 3: 37 x 12.5
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: No

You can view and download the assembly/instruction booklet here and here.
