ZONE 2005-2007 FORD F-250,F-350 4WD GAS 6" SUSPENSION LIFT,RADIUS ARMS,FOX

ZONE 2005-2007 FORD F-250,F-350 4WD GAS 6" SUSPENSION LIFT,RADIUS ARMS,FOX

STU ZONF39F

$1,606.45
$1,606.45
View full details

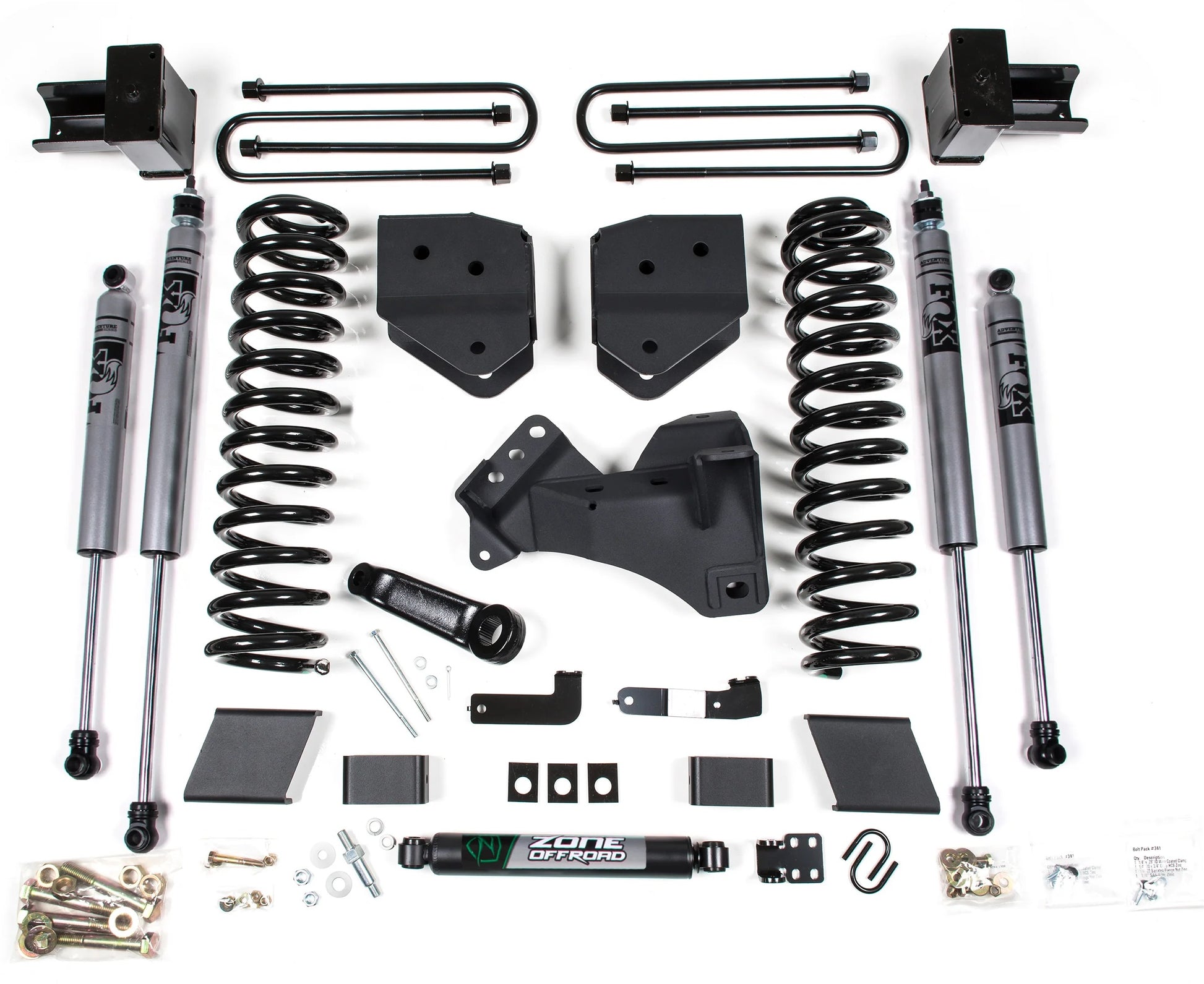

Brand New Zone Offroad 6" Lift Kit with Radius Arms & FOX 2.0 Adventure Shocks (Part #ZONF39F).

Prepare to have everyone looking up at you with this 6" Radius Arm Lift Kit that lets you clear huge 37" tires. Built for everyday driving but sturdy enough for off-road abuse. Get the look and performance you want out of your 4WD 2005-2007 Ford F-250/F-350.

Fits:

  • Ford:
    • 2005-2007 F-250 Super Duty 4WD Gas
    • 2005-2007 F-350 Super Duty 4WD Gas

Notes:

  • If your vehicle is equipped with a 4" rear block and top mounted overload or helper spring, 4 longer U-bolts may be required.
  • Although extremely rare, front and/or rear driveline vibration may occur and require driveline modification.
  • Factory wheels fit when paired with factory / original equipment tire size.
  • This kit is not designed for dually models, but may be easily adapted to accommodate your truck.
  • This lift will require replacing your truck's factory rear block to achieve a level stance; total height gained will vary depending on the size of the factory block.
  • Exhaust modification may be required to clear the front driveshaft once lifted. See installation instructions for more information.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.

  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 4.5 in. Backspace, 37 x 12.5 with 18 x 9 and 4.5 in. Backspace, and 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

  • Brake line relocation brackets allow re-use of factory brake lines.
  • Bump stop extensions properly limit up-travel, protecting your vehicle.
  • Heavy-duty radius arms improve strength, allow additional tire clearance and increase ground clearance over radius arm drop kits.
  • High-strength, 1/4" steel radius arms correct caster, improve tire clearance, and maximize ground clearance.
  • Rear Add-A-Leaf Kit provides additional lift and improves weight capacity.
  • Rear lift block and longer U-bolts for easy installation and level stance.
  • Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.
  • Sway bar relocation brackets maintain operating angle for reduced body roll.

FOX 2.0 Adventure Series:

  • 2" Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil Spring & Radius Arm
  • Front Lift Height: 6"
  • Rear Lift Method: Block & Add-A-Leaf
  • Rear Lift Height: 4"

You can view and download the assembly/instruction booklet here.
