ZONE 2008-2010 FORD F-250,F-350 4WD DIESEL W/ OVERLOAD 6" LIFT,RADIUS ARM,NITRO

ZONE 2008-2010 FORD F-250,F-350 4WD DIESEL W/ OVERLOAD 6" LIFT,RADIUS ARM,NITRO

STU ZONF35N

$1,448.45
$1,448.45
View full details

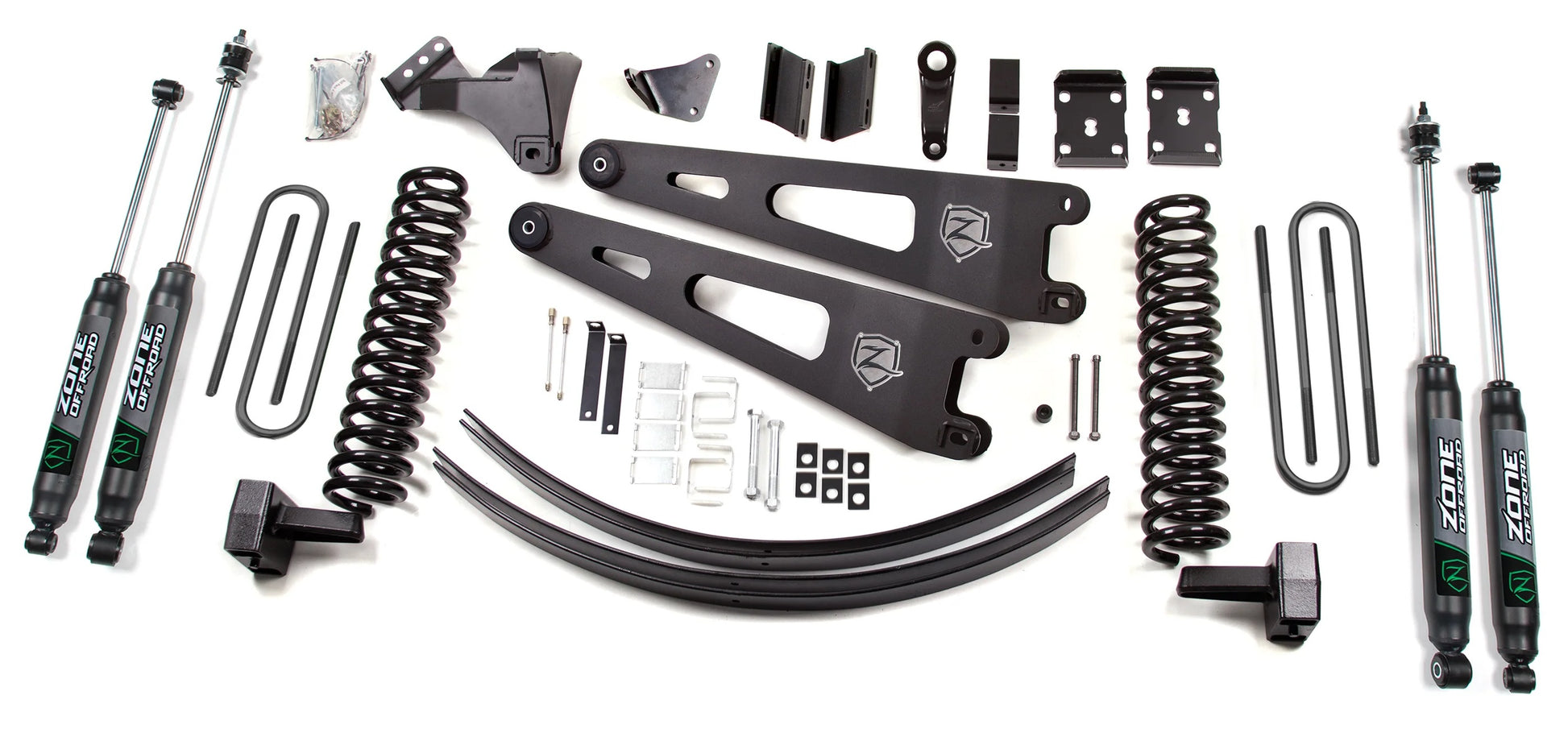

Brand New Zone Offroad 6" Lift Kit with Radius Arms & Nitro Shocks (Part #ZONF35N).

When you go big you can go anywhere. This 6" Radius Arm Lift Kit puts your truck into a class of its own, letting you clear huge 37" tires. Get the look and performance you want out of your Diesel 4WD 2008-2010 Ford F-250/F-350.

Fits:

  • Ford:
    • 2008-2010 F-250 Super Duty 4WD Diesel with Factory Overload
    • 2008-2010 F-350 Super Duty 4WD Diesel with Factory Overload

Notes:

  • Although extremely rare, front and/or rear drive-line vibration may occur and require drive-line modification.
  • Factory Overload = 3 Leaf, No Overload = 2 Leaf
  • Factory wheels fit when paired with factory / original equipment tire size.
  • This kit is not designed for dually models, but may be easily adapted to accommodate your truck.
  • This lift will require replacing your truck's factory rear block to achieve a level stance; total height gained will vary depending on the size of the factory block.
  • Exhaust modification may be required to clear the front driveshaft on gas models. See installation instructions for more information.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.

  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 4.5 in. Backspace, 37 x 12.5 with 18 x 9 and 4.5 in. Backspace, and 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

  • Brake line relocation brackets allow re-use of factory brake lines.
  • Bump stop extensions properly limit up-travel, protecting your vehicle.
  • Dual rear Add-A-Leaf Kit provides additional lift and improves weight capacity.
  • Heavy-duty radius arms improve strength, allow additional tire clearance and increase ground clearance over radius arm drop kits.
  • High-strength, 1/4" steel radius arms correct caster, improve tire clearance, and maximize ground clearance.
  • Rear lift block and longer U-bolts for easy installation and level stance.
  • Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.
  • Sway bar relocation brackets maintain operating angle for reduced body roll.

Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • Self-lubricating seals
  • Black powder coat finish

Specs:

  • Front Lift Method: Coil Spring & Radius Arm
  • Front Lift Height: 6"
  • Rear Lift Method: Block & Add-A-Leaf
  • Rear Lift Height: 4"

You can view and download the assembly/instruction booklet here.
