ZONE 2011-2016 F250/350 GAS 4WD W/O OVERLOAD 6" RADIUS ARM LIFT,FOX SHOCKS

ZONE 2011-2016 F250/350 GAS 4WD W/O OVERLOAD 6" RADIUS ARM LIFT,FOX SHOCKS

SKU:STU ZONF32F

Regular price $1,799.99
Regular price Sale price $1,799.99
View full details

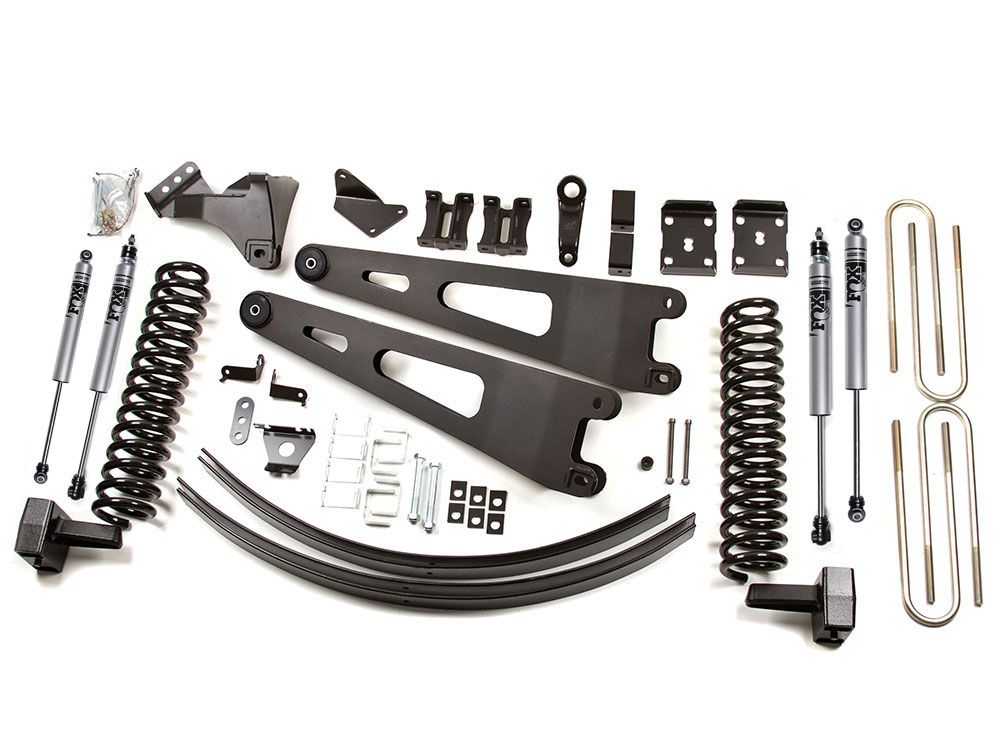

Brand New Zone Offroad 6" Radius Arm Lift Kit with Fox Shocks (Part #ZONF32F).

Lift your Super Duty into a class of it's own with this 6" radius arm lift kit for an attention grabbing, smooth riding, complete, and affordable system. You'll clear huge 37" tires for the look and performance you want from your Gas 4WD 2011 - 2016 Ford F-250 / F-350.

Fox Performance Shocks:

  • 2" Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Fits:

  • Ford:
    • 2011-2016 F-250 Super Duty 4WD Gas without Factory Overload Springs
    • 2011-2016 F-350 Super Duty 4WD Gas without Factory Overload Springs

Features:

  • Brake line relocation brackets allow re-use of factory brake lines.
  • Bump stop extensions properly limit up-travel, protecting your vehicle.
  • Dual rear Add-A-Leaf Kit provides additional lift and improves weight capacity.
  • Heavy-duty radius arms improve strength, allow additional tire clearance and increase ground clearance over radius arm drop kits.
  • High-strength, 1/4" steel radius arms correct caster, improve tire clearance, and maximize ground clearance.
  • Rear lift block and longer U-bolts for easy installation and level stance.
  • Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.
  • Sway bar relocation brackets maintain operating angle for reduced body roll.

Specs:

  • Front Lift Height: 6"
  • Rear Lift Height: 4"
  • Front Lift Method: Coil Springs & Replacement Radius Arms
  • Rear Lift Method: Dual Add-A-Leafs & Block Kit
  • Lift Type: Lift Kit
  • Wheel Size: 17 x 9
  • Back Spacing: 4.5"
  • Max Tire Size: 37 x 12.5
  • Wheel Size 2: 18 x 9
  • Back Spacing 2: 4.5"
  • Max Tire Size 2: 37 x 12.5
  • Wheel Size 3: 20 x 9
  • Back Spacing 3: 4.5"
  • Max Tire Size 3: 37 x 12.5
  • Finish: Powdercoat
  • Cutting Required: No
  • Accommodates Factory Wheels: See Notes
  • Welding Required: No

Notes:

  • Driveline: Although extremely rare, front and/or rear driveline vibration may occur and require driveline modification.
  • Factory wheels fit when paired with factory / original equipment tire size.
  • Fitment: This kit is not designed for dually models, but may me easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
  • Lift Block Selection: This lift will require replacing your truck's factory rear block to achieve a level stance; total height gained will vary depending on the size of the factory block.
  • Mod's Required: Exhaust modification may be required to clear the front driveshaft on gas models. See installation instructions for more information.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.

You can view and download the complete assembly instruction booklet here.
