ZONE 2011-2016 F250/350 DIESEL 4WD W/O OVERLOAD 4" RADIUS ARM LIFT,NITRO SHOCKS
ZONE 2011-2016 F250/350 DIESEL 4WD W/O OVERLOAD 4" RADIUS ARM LIFT,NITRO SHOCKS
SKU:STU ZONF25N
Yes, we have this item in stock and ready to ship immediately!
Couldn't load pickup availability

Brand New Zone Offroad 4" Radius Arm Lift Kit with Zone Nitro Series Shocks (Part #ZONF25N).

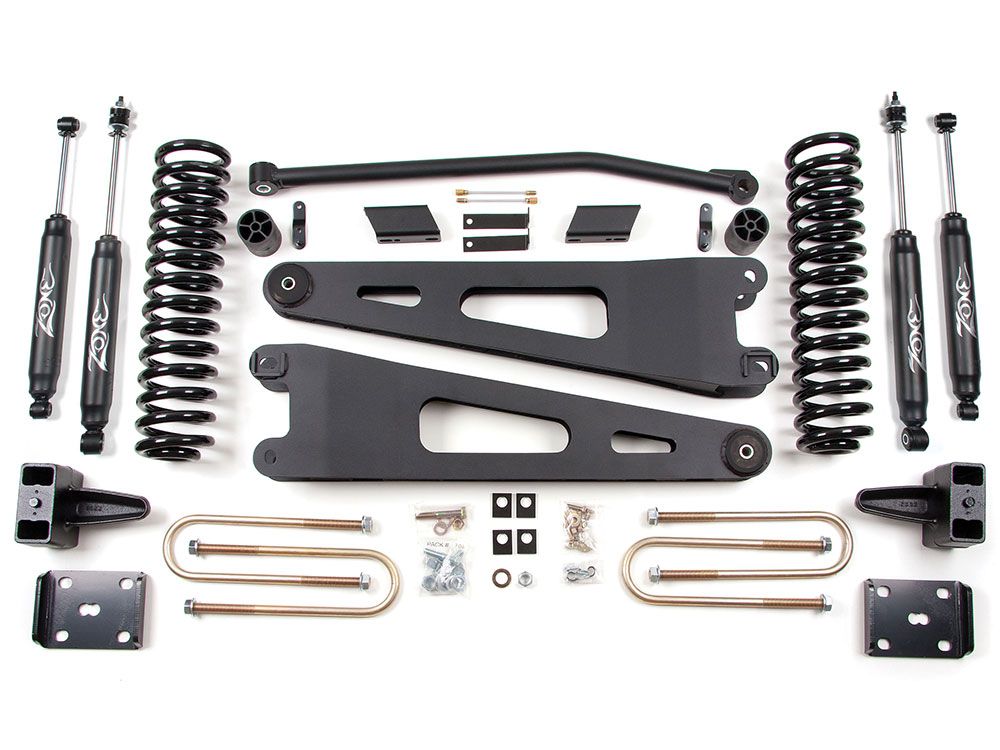

Take your Super Duty to new heights with this 4" radius arm lift kit from Zone Offroad. Kits include everything needed from full length coil springs and HD replacement radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.
Fits:
- Ford:
- 2011-2016 F-250 Super Duty 4WD Diesel without Factory Overload Springs
- 2011-2016 F-350 Super Duty 4WD Diesel without Factory Overload Springs
Notes:
- Driveline Notice: Although extremely rare, front and/or rear driveline vibration may occur and require driveline modification.
- Fitment: This kit is not designed for dually models, but may be easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
- Lift Block Selection: This lift will require replacing your truck’s factory rear block to achieve a level stance; total height gained will vary depending on the size of the factory block.
- Mod's Required: Exhaust modification may be required to clear the front driveshaft on gas models. See installation instructions for more information.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
Features:
- Full length replacement coil springs add additional ride height while maintaining ride quality.
- Heavy-duty track bar re-centers front axle, adds strength and limits lateral movement.
- High-strength, 1/4" steel construction corrects caster, improves tire clearance, and maximizes ground clearance.
- High-strength, black e-coated U-bolts.
- Rear lift block and longer U-bolts for easy installation and level stance.
Nitro Series Shocks Features:
- Twin tube, nitrogen charged design with 10-stage velocity sensitive valving for great on/off-road performance
- Steel alloy body with dual welded ends and a 14mm heavy chromed shock shaft
- Bushings and sleeves included for easy, direct replacement installation
Specs:
- Front Lift Height: 4"
- Rear Lift Height: 3"
- Front Lift Method: Radius Arm Drop
- Rear Lift Method: Cast Blocks
- Lift Type: Lift Kit
- Wheel Size: 17 x 9
- Back Spacing: 4.5"
- Max Tire Size: 35 x 12.5
- Wheel Size 2: 18 x 9
- Back Spacing 2: 4.5"
- Max Tire Size 2: 35 x 12.5
- Wheel Size 3: 20 x 9
- Back Spacing 3: 4.5"
- Max Tire Size 3: 35 x 12.5
- Finish: Powdercoated Black
- Cutting Required: No
- Accommodates Factory Wheels: See Notes
- Welding Required: No
You can view and download the assembly/instruction booklet here.
