ZONE 2008-2010 FORD F-250,F-350 4WD GAS 4" SUSPENSION LIFT KIT W/ RADIUS ARMS
ZONE 2008-2010 FORD F-250,F-350 4WD GAS 4" SUSPENSION LIFT KIT W/ RADIUS ARMS
SKU:STU ZONF24
Couldn't load pickup availability

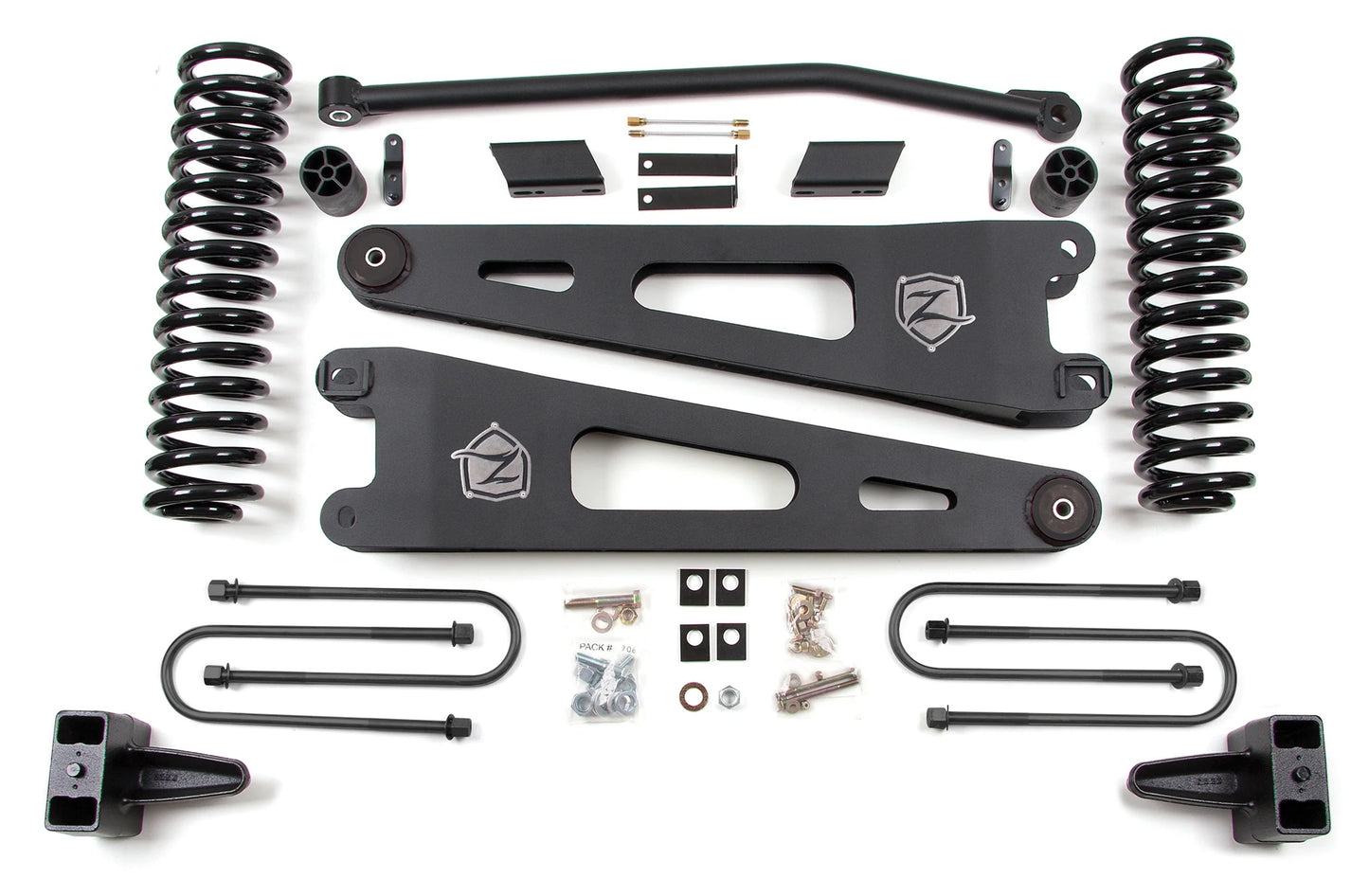

Brand New Zone Offroad 4" Lift Kit with Radius Arms (Part #ZONF24).
With ample additional ground clearance and room for up to 33" tires, you'll be well-equipped for a trip down the road less traveled' with this 4" Radius Arm Lift Kit, with rear block lift kit for your 4WD 2008 - 2010 Ford F-250 / F-350.
Fits:
-
Ford:
- 2008-2010 F-250 Super Duty 4WD Gas
- 2008-2010 F-350 Super Duty 4WD Gas
Notes:
- If your vehicle is equipped with both a stock 4" rear block and a top mounted overload/helper spring, select the longer 18.5" Rear U-Bolts.
- This kit is not designed for dually models, but may be easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
- This lift will require replacing your truck's factory rear block to achieve a level stance; total height gained will vary depending on the size of the factory block.
- Exhaust modification may be required to clear the front driveshaft on gas models. See installation instructions for more information.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
-
Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 4.5 in. Backspace, 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, and 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
Features:
- Full length replacement coil springs add additional ride height while maintaining ride quality.
- Heavy-duty track bar re-centers front axle, adds strength and limits lateral movement.
- High-strength, 1/4" steel construction corrects caster, improves tire clearance, and maximizes ground clearance.
- Rear lift block and longer U-bolts for easy installation and level stance.
Specs:
-
Front Lift Method: Coil Spring & Radius Arm
-
Front Lift Height: 4"
-
Rear Lift Method: Block
- Rear Lift Height: 5"
You can view and download the assembly/instruction booklet here.
